RS PRO 2491B Series Red 0.75 mm² Hook Up Wire, 18 AWG, 22, 100 m, Low Smoke Zero Halogen
- RS stock no.:
- 836-0785
- Distrelec Article No.:
- 304-04-986
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
R 968,59
(exc. VAT)
R 1 113,88
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 32 unit(s) ready to ship from another location
- Plus 120 unit(s) shipping from 12 March 2026
- Plus 30 unit(s) shipping from 09 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | R 968.59 | R 9.686 |
| 5 + | R 944.38 | R 9.444 |
*price indicative
- RS stock no.:
- 836-0785
- Distrelec Article No.:
- 304-04-986
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 0.75 mm² | |
| Jacket Colour | Red | |
| American Wire Gauge | 18AWG | |
| Core Strands | 22 | |
| Cable Length | 100m | |
| Outside Diameter | 2.8 mm | |
| Voltage | 500 V | |
| Maximum Operating Temperature | 90°C | |
| Conductor Material | Copper | |
| Standards/Approvals | Euroclass Eca | |
| Minimum Operating Temperature | -5°C | |
| Cable Type | H05Z-K | |
| Jacket Material | Low Smoke Zero Halogen | |
| Sub Type | Equipment Wire | |
| Fire Behaviour | Flame Retardant | |
| Series | 2491B | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 0.75 mm² | ||
Jacket Colour Red | ||
American Wire Gauge 18AWG | ||
Core Strands 22 | ||
Cable Length 100m | ||
Outside Diameter 2.8 mm | ||
Voltage 500 V | ||
Maximum Operating Temperature 90°C | ||
Conductor Material Copper | ||
Standards/Approvals Euroclass Eca | ||
Minimum Operating Temperature -5°C | ||
Cable Type H05Z-K | ||
Jacket Material Low Smoke Zero Halogen | ||
Sub Type Equipment Wire | ||
Fire Behaviour Flame Retardant | ||
Series 2491B | ||
- COO (Country of Origin):
- TR

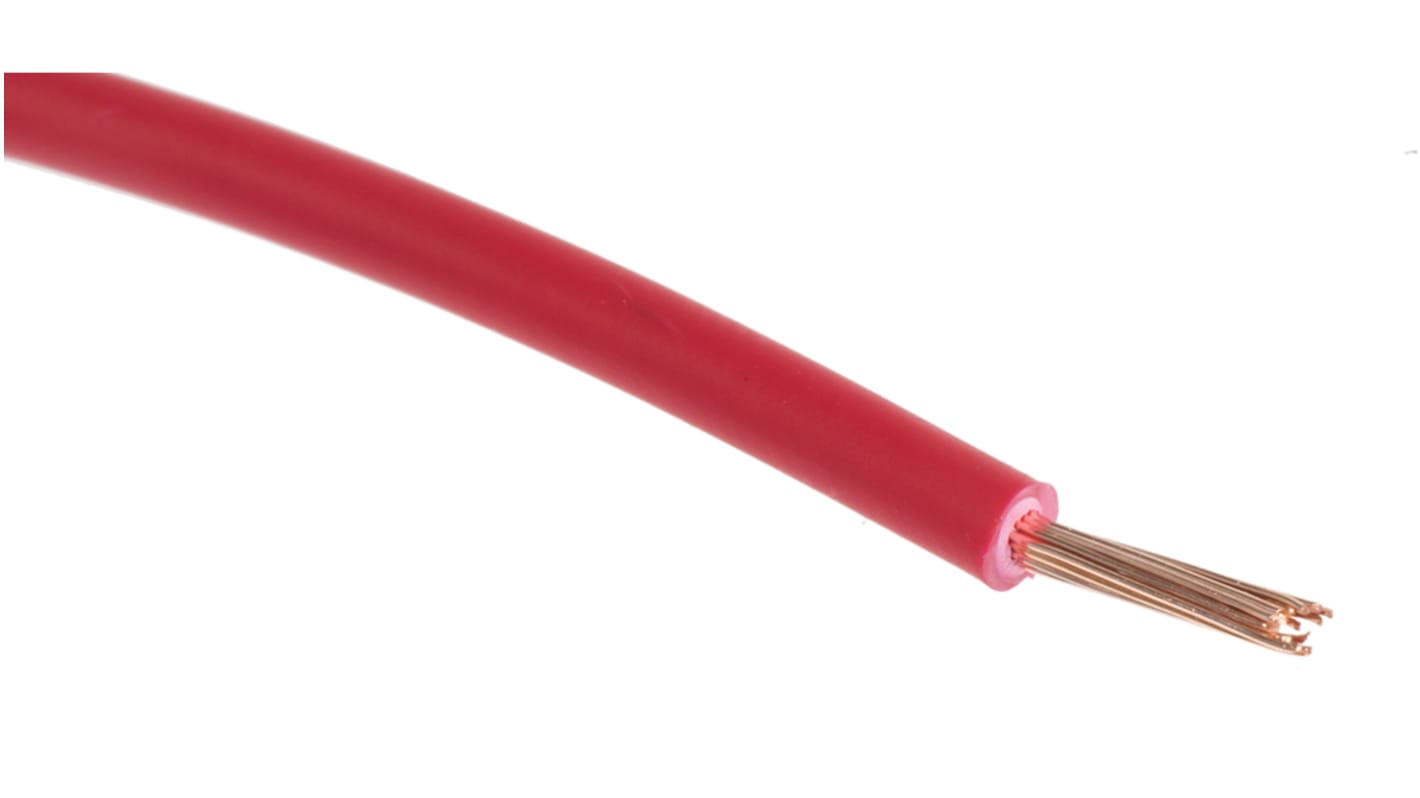

RS PRO Red Equipment Wire, 0.75 mm², 100 m
Need a durable equipment wire for internal wiring applications? This product from RS PRO is designed for use in household electrical appliances and with pipes and ducts. The flexible copper core within the wire makes it a versatile product as it can be installed in a range of sockets and circuit boards.
The cross-linked polymer material of the cable's jacket has been molded by pressure and heat for increased resistance to corrosion, cutting and cracking. This makes the wire more durable and ensures a long service life.
This cable sheath can be used at temperatures up to +90°C thanks to its impressive heat resistance. It's also a low smoke zero halogen (LSZH) material, so it won't produce toxic fumes or excess smoke in the event of a fire. This makes the cable safe to install in crowded areas.
Features and Benefits
