RS PRO 6491B Series Blue 1.5 mm² Hook Up Wire, 18 AWG, 27, 100 m, Low Smoke Zero Halogen
- RS stock no.:
- 836-0791
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 reel of 100 metres)*
R 1 286,44
(exc. VAT)
R 1 479,41
(inc. VAT)
Stock information currently inaccessible - Please check back later
Reel(s) | Per Reel | Per Metre* |
|---|---|---|
| 1 - 4 | R 1,286.44 | R 12.864 |
| 5 + | R 1,254.28 | R 12.543 |
*price indicative
- RS stock no.:
- 836-0791
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Product Type | Hook Up Wire | |
| Cross Sectional Area | 1.5 mm² | |
| Jacket Colour | Blue | |
| American Wire Gauge | 18AWG | |
| Core Strands | 27 | |
| Cable Length | 100m | |
| Outside Diameter | 2.9 mm | |
| Voltage | 750 V | |
| Maximum Operating Temperature | 90°C | |
| Conductor Material | Copper | |
| Standards/Approvals | Euroclass Eca | |
| Sub Type | Equipment Wire | |
| Minimum Operating Temperature | -5°C | |
| Jacket Material | Low Smoke Zero Halogen | |
| Cable Type | H07Z-K | |
| Fire Behaviour | Flame Retardant | |
| Series | 6491B | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Product Type Hook Up Wire | ||
Cross Sectional Area 1.5 mm² | ||
Jacket Colour Blue | ||
American Wire Gauge 18AWG | ||
Core Strands 27 | ||
Cable Length 100m | ||
Outside Diameter 2.9 mm | ||
Voltage 750 V | ||
Maximum Operating Temperature 90°C | ||
Conductor Material Copper | ||
Standards/Approvals Euroclass Eca | ||
Sub Type Equipment Wire | ||
Minimum Operating Temperature -5°C | ||
Jacket Material Low Smoke Zero Halogen | ||
Cable Type H07Z-K | ||
Fire Behaviour Flame Retardant | ||
Series 6491B | ||
- COO (Country of Origin):
- TR

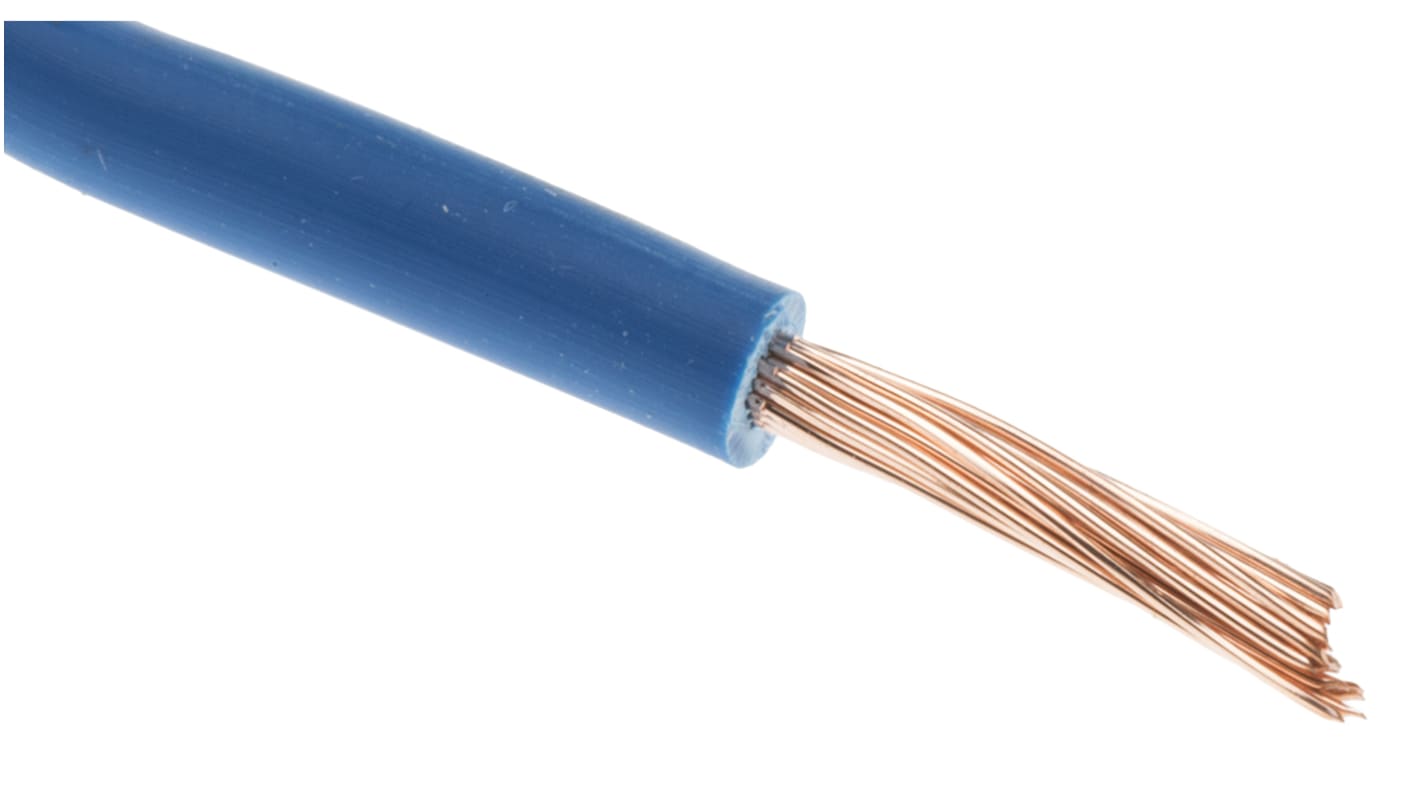

RS PRO Blue Equipment Wire, 1.5 mm², 100 m
Use this RS PRO equipment wire with ducts and pipes or when wiring appliances. This component features a copper core that's flexible, making it versatile enough for use in sockets, circuit boards and a range of domestic electrical applications.
The cable jacket's cross-linked polymer material has been molded by pressure and heat for increased resistance to cutting, cracking and corrosion. This makes the insulation more durable, ensuring the product will hold up under harsh conditions and last a long time.
Thanks to its excellent heat resistance, the cable sheath can withstand temperatures up to +90°C. This material is also a low smoke zero halogen (LSZH) type, ensuring it won't produce toxic fumes or excess smoke if a fire occurs. That means it's a good choice for installation in populated areas.
Features and Benefits
