TE Connectivity PCB RF Relay, 9 V dc Coil, DPDT
- RS stock no.:
- 181-179
- Mfr. Part No.:
- 3-1462040-4
- Manufacturer:
- TE Connectivity

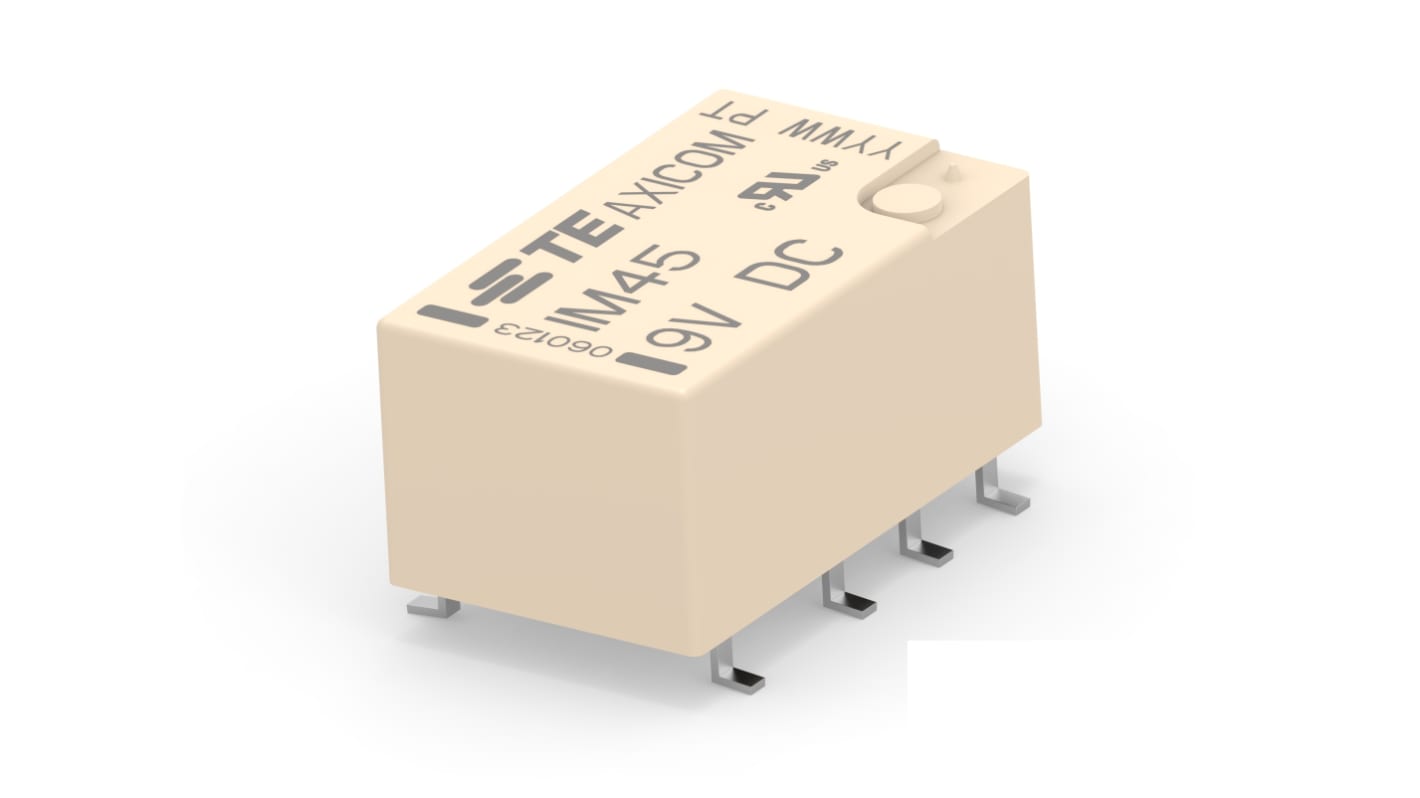

Image representative of range
Subtotal (1 tape of 2 units)*
R 85,62
(exc. VAT)
R 98,46
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 500 unit(s) shipping from 13 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Tape(s) | Per Tape | Per unit* |
|---|---|---|
| 1 + | R 85.62 | R 42.81 |
*price indicative
- RS stock no.:
- 181-179
- Mfr. Part No.:
- 3-1462040-4
- Manufacturer:
- TE Connectivity
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | RF Relay | |
| Coil Resistance | 810Ω | |
| Contact Resistance | 50mΩ | |
| Insertion Loss | 0.33dB | |
| Contact Configuration | DPDT | |
| Terminal Type | Surface Mount | |
| Mount Type | PCB | |
| Contact Current | 5A | |
| Minimum Operating Temperature | -40°C | |
| Coil Type | Monostable | |
| Voltage Standing Wave Ratio VSWR | 1.06/1.49 | |
| Maximum Operating Temperature | 85°C | |
| Coil Power | 50mW | |
| Series | IM | |
| Standards/Approvals | CHINA RoHS, EU RoHS/ELV, IEC 61810, REACH, UL 61810-1, Halogen | |
| Length | 1mm | |
| Height | 5.65mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type RF Relay | ||
Coil Resistance 810Ω | ||
Contact Resistance 50mΩ | ||
Insertion Loss 0.33dB | ||
Contact Configuration DPDT | ||
Terminal Type Surface Mount | ||
Mount Type PCB | ||
Contact Current 5A | ||
Minimum Operating Temperature -40°C | ||
Coil Type Monostable | ||
Voltage Standing Wave Ratio VSWR 1.06/1.49 | ||
Maximum Operating Temperature 85°C | ||
Coil Power 50mW | ||
Series IM | ||
Standards/Approvals CHINA RoHS, EU RoHS/ELV, IEC 61810, REACH, UL 61810-1, Halogen | ||
Length 1mm | ||
Height 5.65mm | ||
- COO (Country of Origin):
- CZ
The TE Connectivity IM signal relays, as part of our smallest types of electromechanical relays, offer a wide and deep range of variations suitable for many applications. The IM series are equipped with 2 changeover contacts in both monostable or bistable versions, available in multiple Coil solutions, performance types and pin layouts.
Slim line 10x6 mm and low profile 5.65 mm
High mechanical shock resistance up to 50 g functional
High dielectric and surge capability up to 2500 Vrms
Low Coil power consumption
Minimum board space 60mm²
