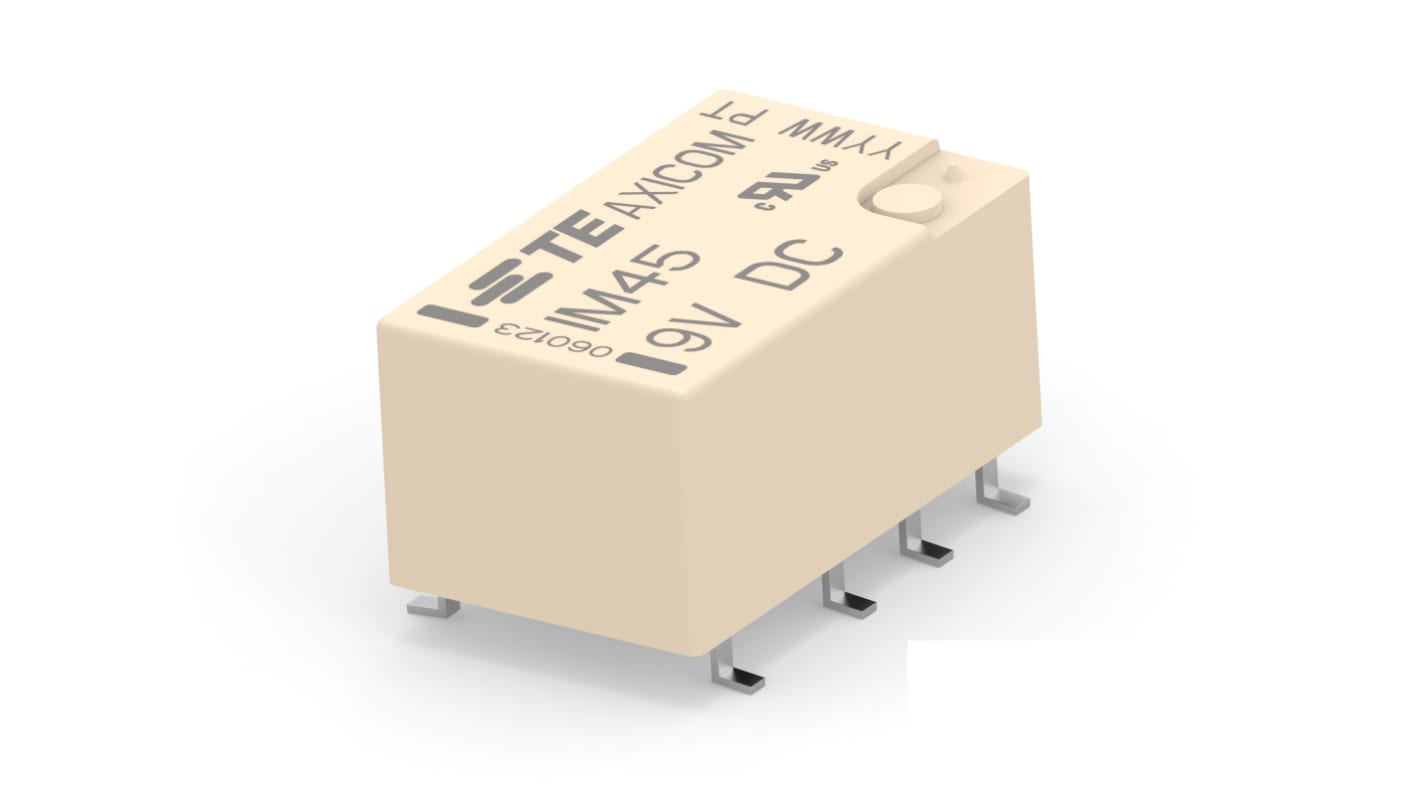

TE Connectivity PCB RF Relay, 9 V dc Coil, DPDT
- RS stock no.:
- 181-177
- Mfr. Part No.:
- 3-1462040-4
- Manufacturer:
- TE Connectivity
Image representative of range
Subtotal (1 reel of 1000 units)*
R 40 970,40
(exc. VAT)
R 47 115,96
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Reel(s) | Per Reel | Per unit* |
|---|---|---|
| 1 + | R 40,970.40 | R 40.97 |
*price indicative
- RS stock no.:
- 181-177
- Mfr. Part No.:
- 3-1462040-4
- Manufacturer:
- TE Connectivity
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | TE Connectivity | |
| Product Type | RF Relay | |
| Coil Resistance | 810Ω | |
| Contact Resistance | 50mΩ | |
| Insertion Loss | 0.33dB | |
| Contact Configuration | DPDT | |
| Terminal Type | Surface Mount | |
| Coil Voltage | 9 V dc | |
| Mount Type | PCB | |
| Coil Type | Monostable | |
| Contact Current | 5A | |
| Switching DC Voltage | 220 V dc | |
| Minimum Operating Temperature | -40°C | |
| Voltage Standing Wave Ratio VSWR | 1.06/1.49 | |
| Switching AC Voltage | 250 V ac | |
| Maximum Operating Temperature | 85°C | |
| Length | 1mm | |
| Coil Power | 50mW | |
| Series | IM | |
| Standards/Approvals | CHINA RoHS, EU RoHS/ELV, IEC 61810, REACH, UL 61810-1, Halogen | |
| Height | 5.65mm | |
| Width | 6 mm | |
| Select all | ||
|---|---|---|
Brand TE Connectivity | ||
Product Type RF Relay | ||
Coil Resistance 810Ω | ||
Contact Resistance 50mΩ | ||
Insertion Loss 0.33dB | ||
Contact Configuration DPDT | ||
Terminal Type Surface Mount | ||
Coil Voltage 9 V dc | ||
Mount Type PCB | ||
Coil Type Monostable | ||
Contact Current 5A | ||
Switching DC Voltage 220 V dc | ||
Minimum Operating Temperature -40°C | ||
Voltage Standing Wave Ratio VSWR 1.06/1.49 | ||
Switching AC Voltage 250 V ac | ||
Maximum Operating Temperature 85°C | ||
Length 1mm | ||
Coil Power 50mW | ||
Series IM | ||
Standards/Approvals CHINA RoHS, EU RoHS/ELV, IEC 61810, REACH, UL 61810-1, Halogen | ||
Height 5.65mm | ||
Width 6 mm | ||
- COO (Country of Origin):
- CZ
The TE Connectivity IM signal relays, as part of our smallest types of electromechanical relays, offer a wide and deep range of variations suitable for many applications. The IM series are equipped with 2 changeover contacts in both monostable or bistable versions, available in multiple Coil solutions, performance types and pin layouts.
Slim line 10x6 mm and low profile 5.65 mm
High mechanical shock resistance up to 50 g functional
High dielectric and surge capability up to 2500 Vrms
Low Coil power consumption
Minimum board space 60mm²
