Eaton 250 A Fuse Holder, 3P-Pole for NH1 Fuse

View all Fuse Holders

Subtotal (1 unit)*

R 19 056,06

(exc. VAT)

R 21 914,47

(inc. VAT)

Add to Basket
Select or type quantity
Temporarily out of stock
  • Shipping from 27 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 19,056.06

*price indicative

RS stock no.:
127-386
Mfr. Part No.:
183048 XNH1-FCE-A250-BT
Manufacturer:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Fuse Holder

Current Rating

250 A

Number of Poles

3

Body Material

Polyamide

IP Rating

IP10, IP20, IP2XC

Minimum Operating Temperature

-5°C

Compatible Fuse Size

NH1 Fuse

Maximum Operating Temperature

55°C

Standards/Approvals

IEC/EN 61439, RoHS

Series

XNH1

Terminal Type

Clamp

COO (Country of Origin):
DE

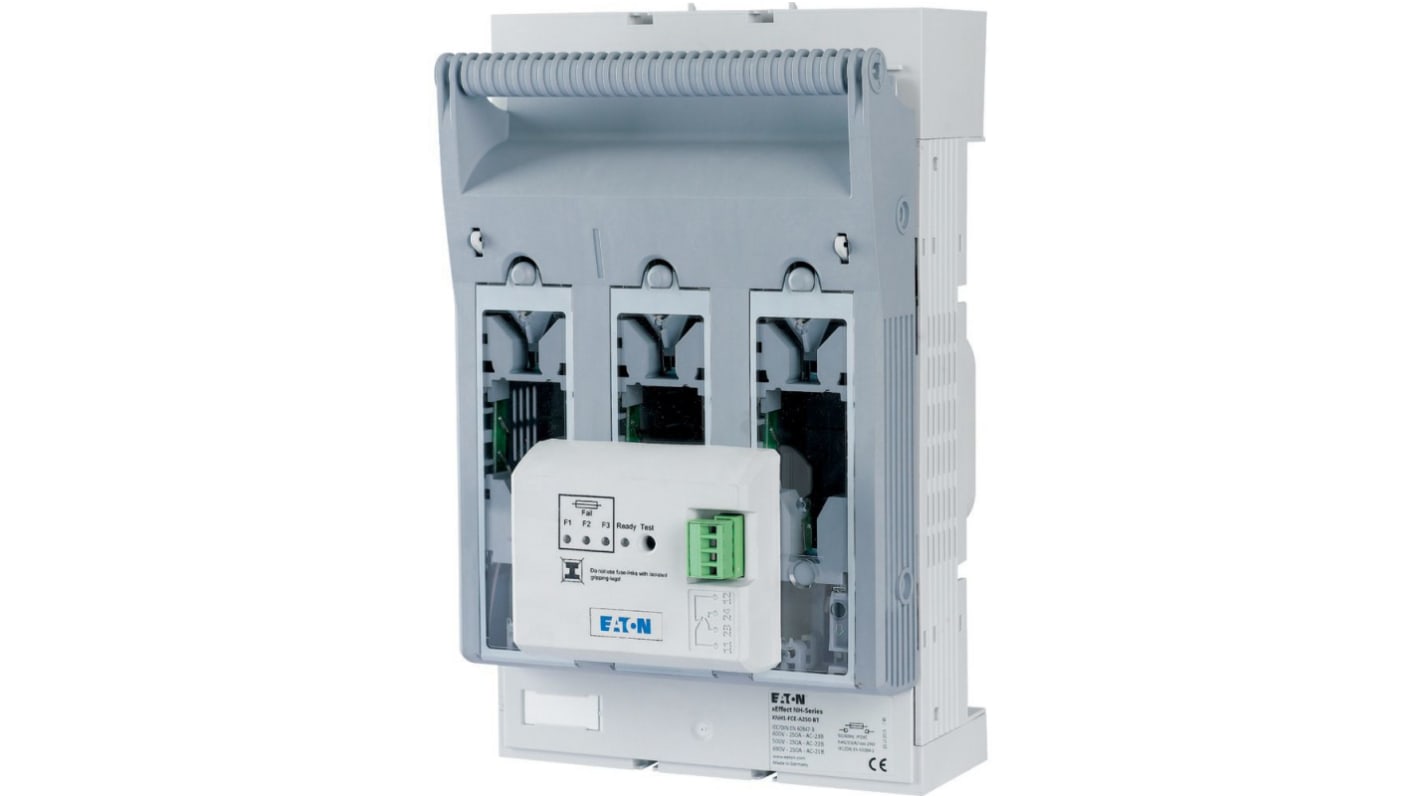

Eaton xEffect Series Fuse Holder, 250A Current, 800V Voltage - 183048 XNH1-FCE-A250-BT


This fuse holder is a three-pole DIN-rail mounted NH1 device designed for mounting-plate installations to provide electronic fuse monitoring and safe disconnection in industrial electrical systems. It is intended for use in control and distribution equipment where monitored NH fuse-links are required, and it accommodates box-terminal connections for large cross‑section conductors.

Features & Benefits


• Rated for 250A continuous operation ensuring high current-handling capacity
• Rated insulation voltage 800V AC enabling higher-voltage system integration
• Electronic fuse monitoring with three red LEDs for Rapid fault indication
• Self‑supplied monitoring with one green LED to simplify wiring requirements
• Frame-clamp box terminals accepting up to 150mm² conductors for heavy cabling
• Sliding inspection windows permit voltage testing without exposing live parts

Applications


• Suitable for industrial distribution panels requiring monitored NH fuses
• Ideal for motor control centres where high short‑circuit ratings are needed
• Used with mounting‑plate assemblies in factory automation switchgear
• Can be used for replacing NH1 fuse carriers in refurbishment projects

What short‑circuit performance can I expect from it?


It has a conditioned rated short‑circuit current of 120 kA and a short‑time withstand current of 6 kA, supporting robust fault‑clearance capabilities.

How does the device aid inspection and maintenance?


The front face includes sliding inspection windows that allow voltage testing while the unit remains installed, reducing downtime during inspections.

Which conductor sizes and connection types are supported?


Box‑terminal connections accept conductor sizes up to 150mm² and copper busbar widths of 30mm x 10 mm, with flange bolt provision for M10.

What environmental and operating limits apply?


The ambient operating range spans −25 °C to 55 °C with a maximum continuous operating temperature reference of 70 °C for component limits.

Is there provision for locking or mechanical security?


It includes an optional locking facility and a cover‑grip actuator to allow secure isolation on site.
