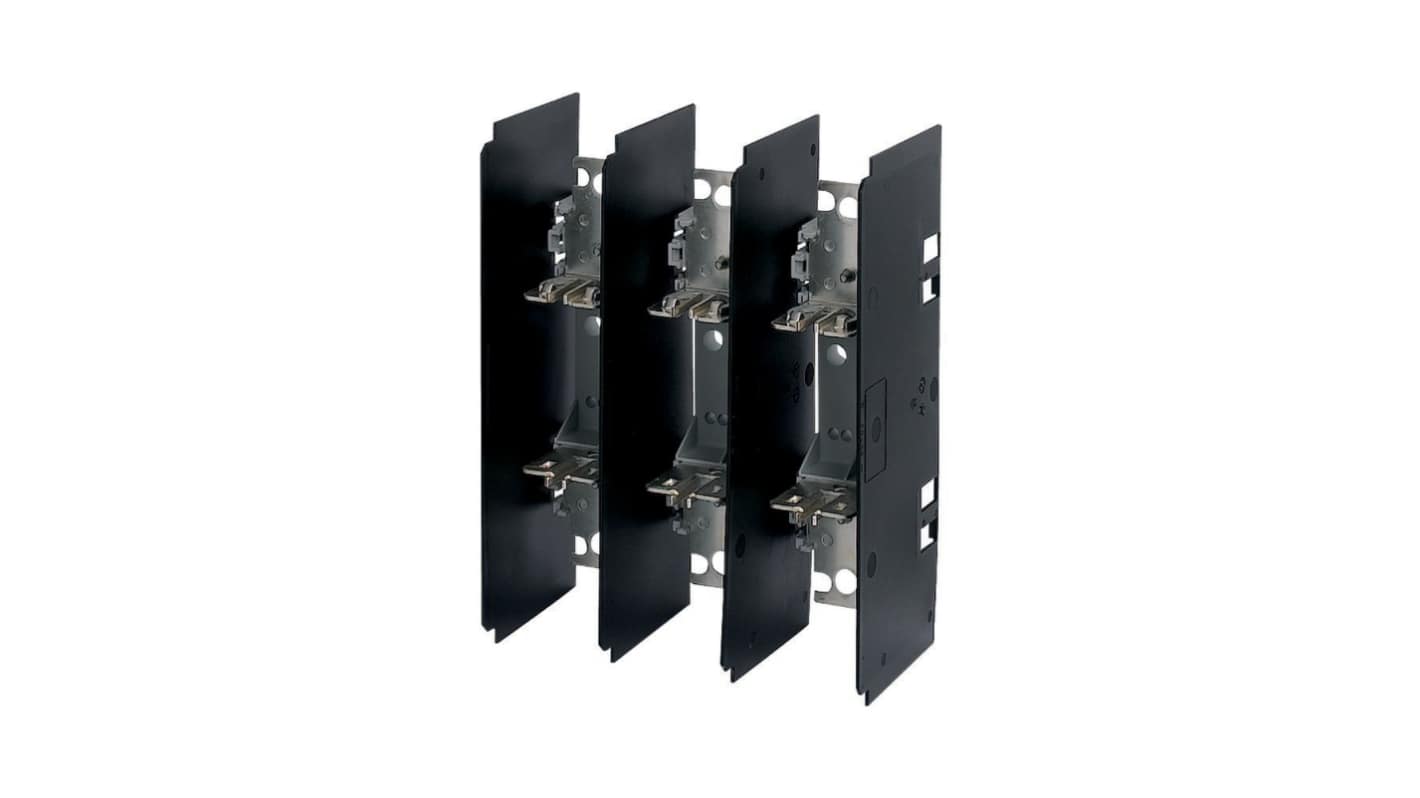

Eaton 250A Fuse Holder, 3P-Pole for 254 x 196 x 107 mm, 690V ac

View all Fuse Holders

Subtotal (1 unit)*

R 3 536,55

(exc. VAT)

R 4 067,03

(inc. VAT)

Add to Basket
Select or type quantity
Stocked by manufacturer
  • Ready to ship from 22 June 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 3,536.55

*price indicative

RS stock no.:
258-213
Mfr. Part No.:
289016 GSU1
Manufacturer:
Eaton
Find similar products by selecting one or more attributes.
Select all

Brand

Eaton

Product Type

Fuse Holder

Current Rating

250A

Voltage

690V ac

Number of Poles

3

Minimum Operating Temperature

-20°C

Compatible Fuse Size

254 x 196 x 107 mm

Fixing Screw Size

M10

Maximum Operating Temperature

55°C

Standards/Approvals

RoHS, IECEN 60 691, VDE 06601

Series

Eaton xEffect

COO (Country of Origin):
DE

Eaton xEffect Series Fuse Holder, 250A Current Rating, 690V Voltage - 289016 GSU1


This fuse holder is a three-pole assembly designed to house NH1 fuses for industrial electrical installations, providing a secure, high-current connection for distribution and protection circuits. It is intended for use in systems operating at elevated voltages and in environments where defined operating temperatures are expected.

Features & Benefits


• Rated for 250A to support high-current distribution
• Suitable for systems up to 690V enabling heavy-duty applications
• Three-pole configuration for three-phase protection and isolation
• M10 fixing screw for robust panel mounting and mechanical stability
• Operational range -20 to 55°C for varied ambient conditions

**Applications**


• Suitable for industrial control panels requiring NH1 fuse carriers
• Ideal for motor starter and distribution board protection schemes
• Used with high-current supply lines in manufacturing facilities
• Can be used for retrofit replacements in existing NH1 fuse installations

What fixing method secures the device to a panel?


It is fastened using an M10 screw interface, providing a mechanically strong attachment suited to panel and chassis mounting.

What operating temperatures can it tolerate during continuous service?


The unit is specified for operation between -20°C and 55°C, covering common industrial ambient conditions for indoor installations.

Can it accommodate three-phase protection needs in heavy-current circuits?


Yes, the three-pole arrangement Plus a 250A current rating makes it appropriate for three-phase high-current protection tasks.
