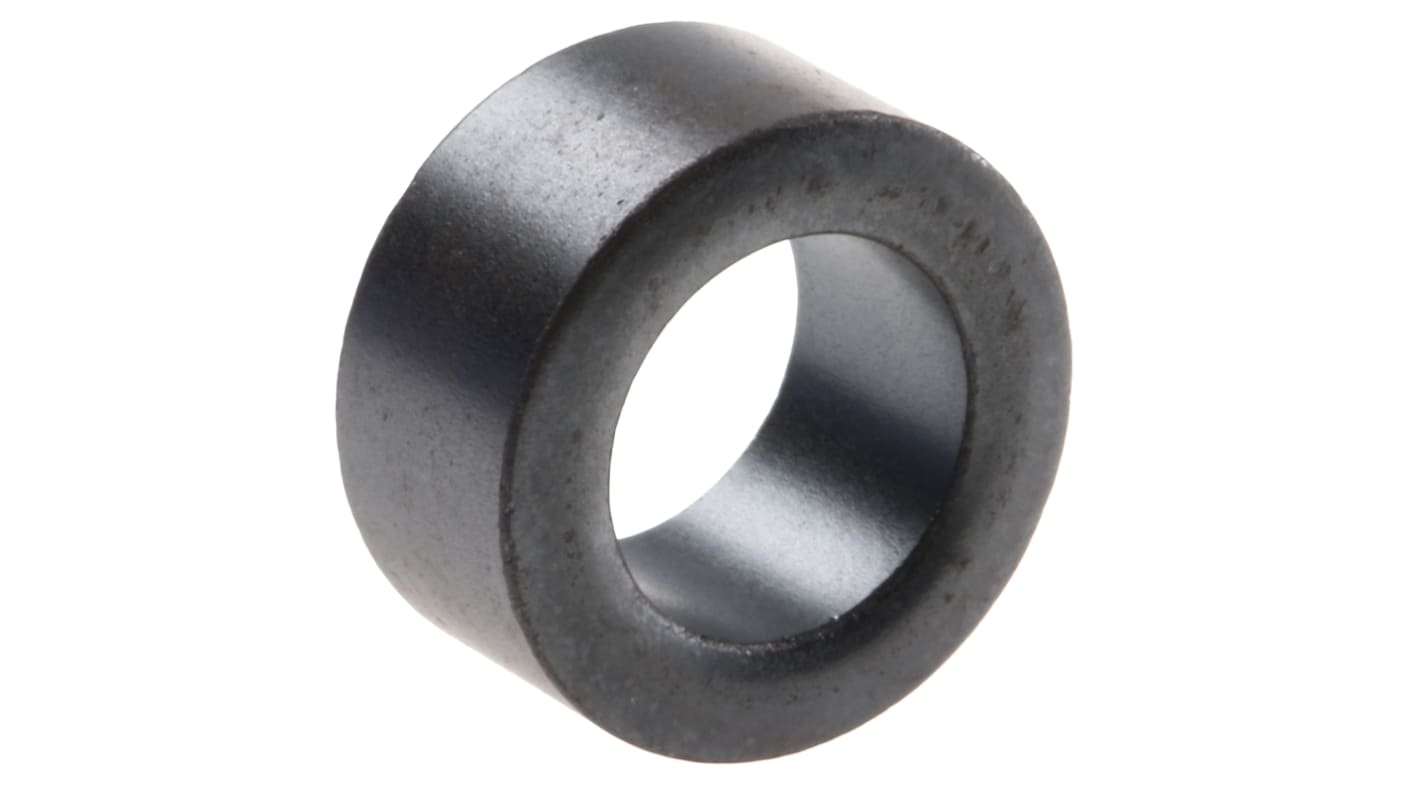

Fair-Rite Ferrite Ring Toroid Core 6.35 mm 7.9 mm ID 12.7 mm OD
- RS stock no.:
- 482-6575
- Mfr. Part No.:
- 5943001101
- Manufacturer:
- Fair-Rite
Bulk discount available
Subtotal (1 pack of 5 units)*
R 57,75
(exc. VAT)
R 66,40
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 75 unit(s) ready to ship
- Plus 4,800 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | R 11.55 | R 57.75 |
| 25 - 45 | R 11.262 | R 56.31 |
| 50 - 95 | R 10.924 | R 54.62 |
| 100 - 245 | R 10.488 | R 52.44 |
| 250 + | R 10.068 | R 50.34 |
*price indicative
- RS stock no.:
- 482-6575
- Mfr. Part No.:
- 5943001101
- Manufacturer:
- Fair-Rite
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fair-Rite | |
| Sub Type | Toroid Core | |
| Product Type | Ferrite Ring | |
| Minimum Frequency | 10kHz | |
| Material | 43 Material | |
| Height | 6.35mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Fair-Rite | ||
Sub Type Toroid Core | ||
Product Type Ferrite Ring | ||
Minimum Frequency 10kHz | ||
Material 43 Material | ||
Height 6.35mm | ||
Standards/Approvals RoHS | ||
NiZn Cores
Only recommended for common mode inductor applications
Ring configuration optimises ferrite material properties
Cores are supplied burnished to remove sharp edges
AL values tested at 10kHz and <10 gauss
Note
Line drawing dimensions: A=diameter; B=internal diameter; C=height
