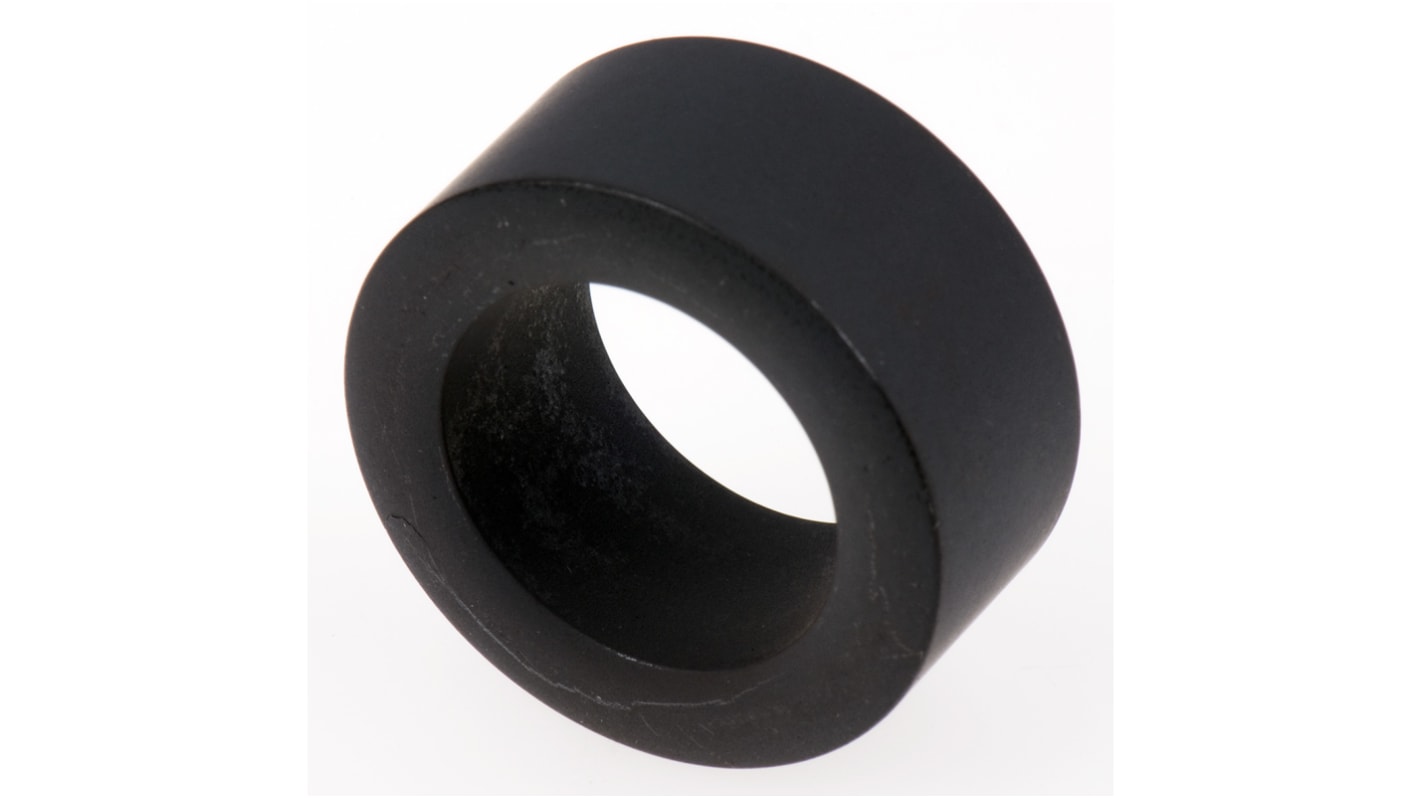

Fair-Rite Ferrite Ring Toroid Core 13.8 mm, For: Broadband Transformer 19 mm ID 29 mm OD
- RS stock no.:
- 467-4295
- Mfr. Part No.:
- 5961001201
- Manufacturer:
- Fair-Rite
Bulk discount available
Subtotal (1 pack of 5 units)*
R 280,58
(exc. VAT)
R 322,665
(inc. VAT)
FREE delivery for orders over R 1,500.00
Limited stock
- 175 left, ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | R 56.116 | R 280.58 |
| 25 - 45 | R 54.714 | R 273.57 |
| 50 - 95 | R 53.072 | R 265.36 |
| 100 - 245 | R 50.95 | R 254.75 |
| 250 + | R 48.912 | R 244.56 |
*price indicative
- RS stock no.:
- 467-4295
- Mfr. Part No.:
- 5961001201
- Manufacturer:
- Fair-Rite
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Fair-Rite | |
| Product Type | Ferrite Ring | |
| Sub Type | Toroid Core | |
| Application | Broadband Transformer | |
| Minimum Frequency | 10kHz | |
| Material | 61 Material | |
| Height | 13.8mm | |
| Inside Diameter | 19mm | |
| Outside Diameter | 29mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Fair-Rite | ||
Product Type Ferrite Ring | ||
Sub Type Toroid Core | ||
Application Broadband Transformer | ||
Minimum Frequency 10kHz | ||
Material 61 Material | ||
Height 13.8mm | ||
Inside Diameter 19mm | ||
Outside Diameter 29mm | ||
Standards/Approvals RoHS | ||
NiZn Cores
Only recommended for common mode inductor applications
Ring configuration optimises ferrite material properties
Cores are supplied burnished to remove sharp edges
AL values tested at 10kHz and <10 gauss
Note
Line drawing dimensions: A=diameter; B=internal diameter; C=height
