Moflash AE95 / FLE Series Buzzer Panel, IP65, AC/DC 48V ac/dc, 1-Tone 111 dB @ 1m
- RS stock no.:
- 851-3428
- Mfr. Part No.:
- AE95-07
- Manufacturer:
- Moflash
Subtotal (1 unit)*
R 2 779,00
(exc. VAT)
R 3 195,85
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit |
|---|---|
| 1 + | R 2,779.00 |
*price indicative
- RS stock no.:
- 851-3428
- Mfr. Part No.:
- AE95-07
- Manufacturer:
- Moflash
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Moflash | |
| Product Type | Buzzer | |
| IP Rating | IP65 | |
| Current Type | AC/DC | |
| Number of Tones | 1 | |
| Mount Type | Panel | |
| Housing Colour | Black | |
| Current Consumption | 0.8mA | |
| Diameter | 96mm | |
| Maximum Supply Voltage | 48V ac/dc | |
| Minimum Operating Temperature | -30°C | |
| Sound Level at 1m | 111dB | |
| Maximum Sound Level | 111dB | |
| Maximum Operating Temperature | 80°C | |
| Series | AE95 / FLE | |
| Base Length | 137mm | |
| Hazardous Area Certification | NO | |
| Base Width | 85mm | |
| Standards/Approvals | RoHS, CE | |
| Tone Type | Alarm | |
| Housing Material | ABS | |
| Select all | ||
|---|---|---|
Brand Moflash | ||
Product Type Buzzer | ||
IP Rating IP65 | ||
Current Type AC/DC | ||
Number of Tones 1 | ||
Mount Type Panel | ||
Housing Colour Black | ||
Current Consumption 0.8mA | ||
Diameter 96mm | ||
Maximum Supply Voltage 48V ac/dc | ||
Minimum Operating Temperature -30°C | ||
Sound Level at 1m 111dB | ||
Maximum Sound Level 111dB | ||
Maximum Operating Temperature 80°C | ||
Series AE95 / FLE | ||
Base Length 137mm | ||
Hazardous Area Certification NO | ||
Base Width 85mm | ||
Standards/Approvals RoHS, CE | ||
Tone Type Alarm | ||
Housing Material ABS | ||

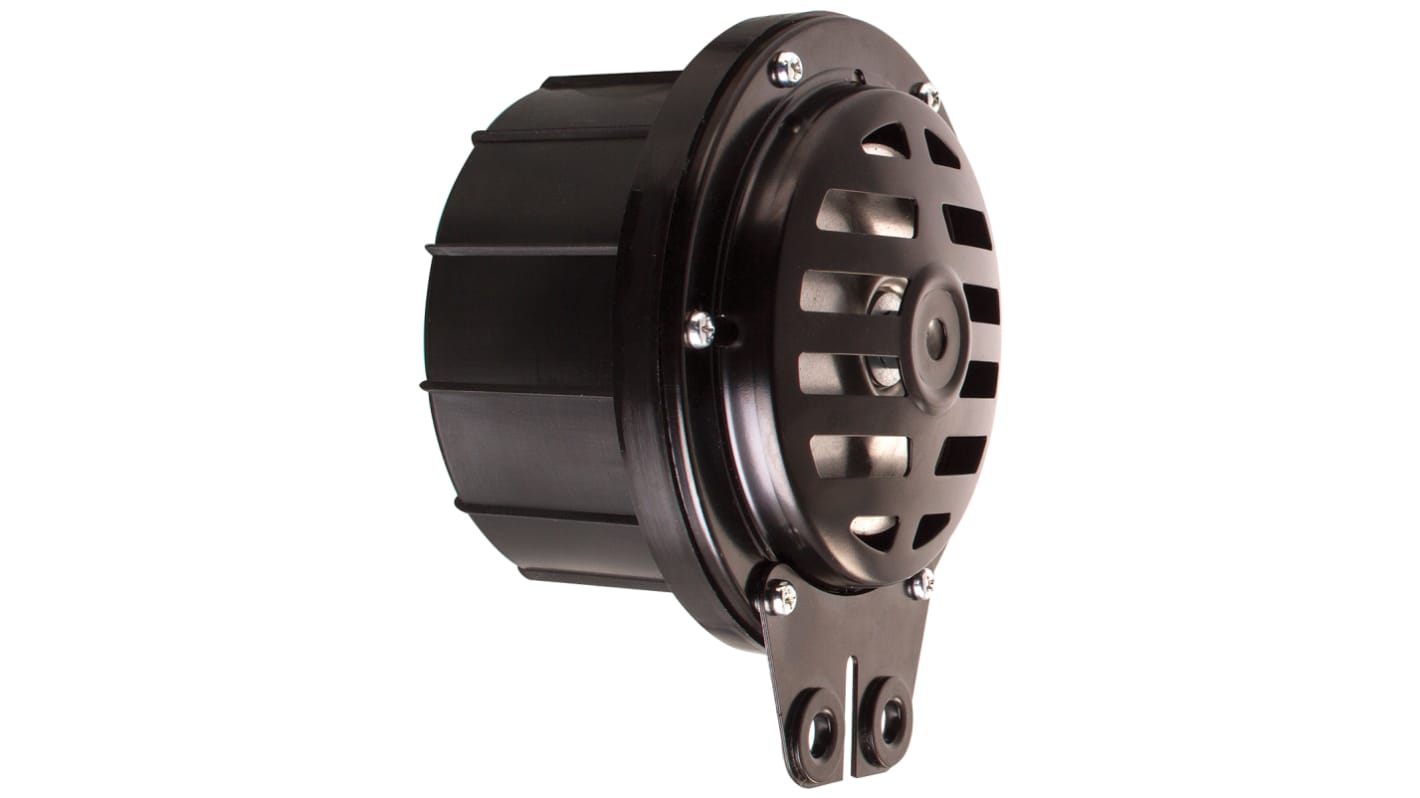

Moflash Single-Tone Buzzer, 24 to 48V AC/DC, 111dB - AE95 Series - AE95-07
Use this single-tone buzzer from Moflash as an audible signal in your industrial or commercial workplace. Its low-frequency sound penetrates through other noise to warn or notify workers of a machine process change. The unit's compact diameter of 96mm means it takes up minimal space on a panel. As the back box enables you to house the terminated cables inside the enclosure, there's no need to worry about electrical hazards. Thanks to its loud volume of 111dB (decibels), the buzzer is easy to hear even in noisy environments.
Features & Benefits
• Low current consumption of just 0.8A for energy efficiency
• IP65 (ingress protection) rating when the back box is installed for protection against dust and low-pressure water jets
• Powder-coated mild steel housing material is highly durable and corrosion-resistant for long-lasting use in harsh environments
Applications
• Testing facilities
• Office spaces
• Factories
• Chemical plants
Can this buzzer withstand use in extreme temperatures?
Yes, this buzzer has a wide operating temperatures range of -30°C to +60°C for use in harsh cold or hot conditions.
