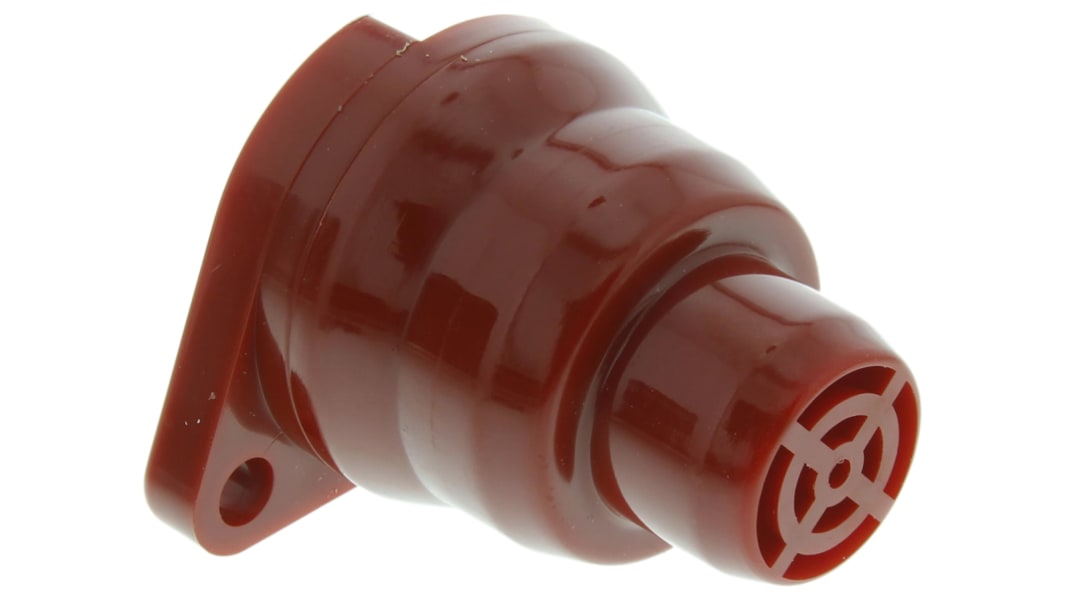

Moflash AE30M Series Buzzer Panel, IP34, DC 24V dc, 1-Tone 75 dB @ 1m
- RS stock no.:
- 248-044
- Mfr. Part No.:
- AE30M-TT-02
- Manufacturer:
- Moflash
Bulk discount available
Subtotal (1 unit)*
R 259,77
(exc. VAT)
R 298,74
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 150 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 14 | R 259.77 |
| 15 - 24 | R 253.28 |
| 25 + | R 245.68 |
*price indicative
- RS stock no.:
- 248-044
- Mfr. Part No.:
- AE30M-TT-02
- Manufacturer:
- Moflash
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Moflash | |
| Product Type | Buzzer | |
| IP Rating | IP34 | |
| Minimum Sound Level | 72dB | |
| Current Type | DC | |
| Number of Tones | 1 | |
| Current Consumption | 25mA | |
| Housing Colour | Red | |
| Mount Type | Panel | |
| Diameter | 40mm | |
| Maximum Supply Voltage | 24V dc | |
| Sound Level at 1m | 75dB | |
| Minimum Operating Temperature | -20°C | |
| Maximum Sound Level | 80dB | |
| Maximum Operating Temperature | 60°C | |
| Series | AE30M | |
| Hazardous Area Certification | NO | |
| Base Length | 51mm | |
| Housing Material | ABS | |
| Base Width | 35.2mm | |
| Standards/Approvals | CE Certified UKCA | |
| Tone Type | Alarm | |
| Select all | ||
|---|---|---|
Brand Moflash | ||
Product Type Buzzer | ||
IP Rating IP34 | ||
Minimum Sound Level 72dB | ||
Current Type DC | ||
Number of Tones 1 | ||
Current Consumption 25mA | ||
Housing Colour Red | ||
Mount Type Panel | ||
Diameter 40mm | ||
Maximum Supply Voltage 24V dc | ||
Sound Level at 1m 75dB | ||
Minimum Operating Temperature -20°C | ||
Maximum Sound Level 80dB | ||
Maximum Operating Temperature 60°C | ||
Series AE30M | ||
Hazardous Area Certification NO | ||
Base Length 51mm | ||
Housing Material ABS | ||
Base Width 35.2mm | ||
Standards/Approvals CE Certified UKCA | ||
Tone Type Alarm | ||
Exempt
Trumpet Sounders
Use in low background noise applications
Output noise very directional and can be heard at a distance between 30-50m
Reverse polarity protected
Continuously rated
Buzzer
Note
Sound levels are ± 3dB @ 1m. Current consumption variable depending on operating voltage
Approvals
CE
