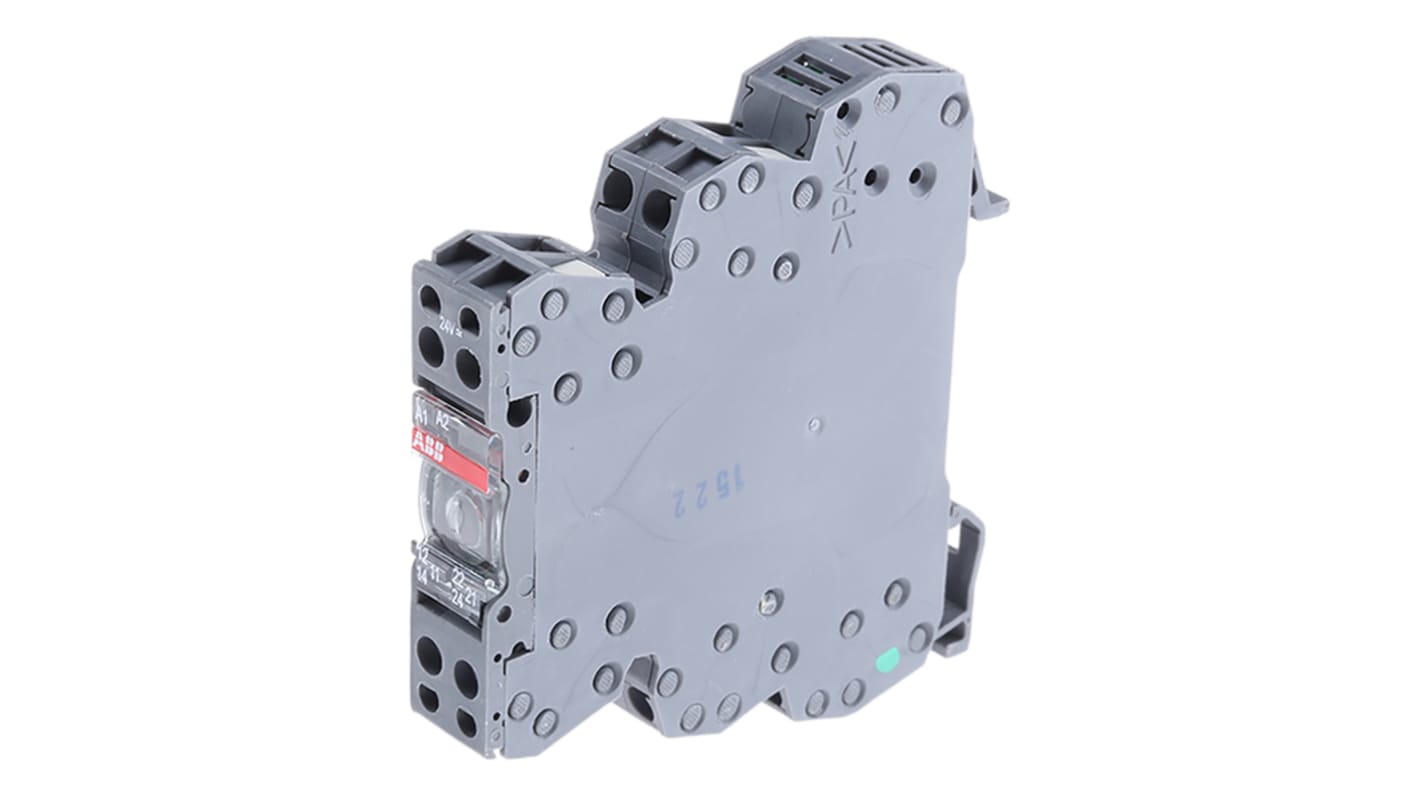

    ABB DIN Rail Mount Interface Relay, 24V ac/dc Coil, 1 → 8000mA Load Current, DPDT

    RS stock no.:
    670-0034
    Mfr. Part No.:
    1SNA645012R2500 RB122G-24VUC
    Manufacturer:
    ABB
    ABB
    View this category
    3 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
    Add to Basket
    units

    Not Available for premium delivery

    Added

    Price (Excl VAT) Each

    R 473.06

    (exc. VAT)

    R 544.02

    (inc. VAT)

    unitsPer unit
    1 - 5R 473.06
    6 - 11R 461.23
    12 +R 447.39
    RS stock no.:
    670-0034
    Mfr. Part No.:
    1SNA645012R2500 RB122G-24VUC
    Manufacturer:
    ABB

    Legislation and Compliance


    Product Details

    ABB Interface Relay, 8A Switching Current, 20mA Input Current - R600 Series - 1SNA645012R2500 RB122G-24VUC


    Are incompatible components getting your automated system down? Link them up with this boxed interface relay from ABB. It's a walk in the park to match signals, isolate voltages or manage high-current switching between terminals in your equipment when you use it. The device takes in 24V AC/DC power and transforms it into a steady 250V/8A output to keep things running smoothly and stop unwanted electrical fluctuations in their tracks. Thanks to a super-fast turn-on time of just 6ms, sensitive modules will be safe as houses the moment you turn on your machinery.

    Features & Benefits


    • Compact dimensions of 70 (L) x 75(W) x 12mm (D) for space-saving installation in jam-packed control cabinets
    • Extensive operating temperature range between -20°C and +70°C to suit extreme environments
    • Screw terminal support quick-and-easy installation

    Applications


    • Factory automation
    • Sensor equipment
    • Signalling systems

    How do I know this product is working?


    This unit has an integrated LED indicator so you can see at a glance if it's working or not.

    How do I mount this relay?


    It's compatible with standard DIN rails, so installation is a snap. To mount it, simply click it into place and you're good to go.


    Specification

    AttributeValue
    Minimum Input Voltage5V
    Coil Voltage24V ac/dc
    Maximum Input Voltage250V
    Contact ConfigurationDPDT
    Mounting TypeDIN Rail
    Load Current Rating1 → 8000mA
    Switching Voltage24V
    Load Voltage Rating24V ac
    Terminal TypeScrew
    Length70mm
    Depth12mm
    SeriesR600
    Height75mm
    Input Current20mA
    Minimum Operating Temperature-20°C
    Accessory TypeInterface Relay
    Turn Off Time10ms
    Operating Temperature Range-20 → +70°C
    Turn On Time6ms
    Relay Switching ClassificationInterface Relay
    Special FeaturesHigh Levels Flame Retardation
    Relay TypeAC Interface Relay
    Standards MetCCC, CE, CSA, cURus
    Dimensions70 x 12 x 75mm
    Input Voltage Range24V
    Maximum Operating Temperature+70°C
