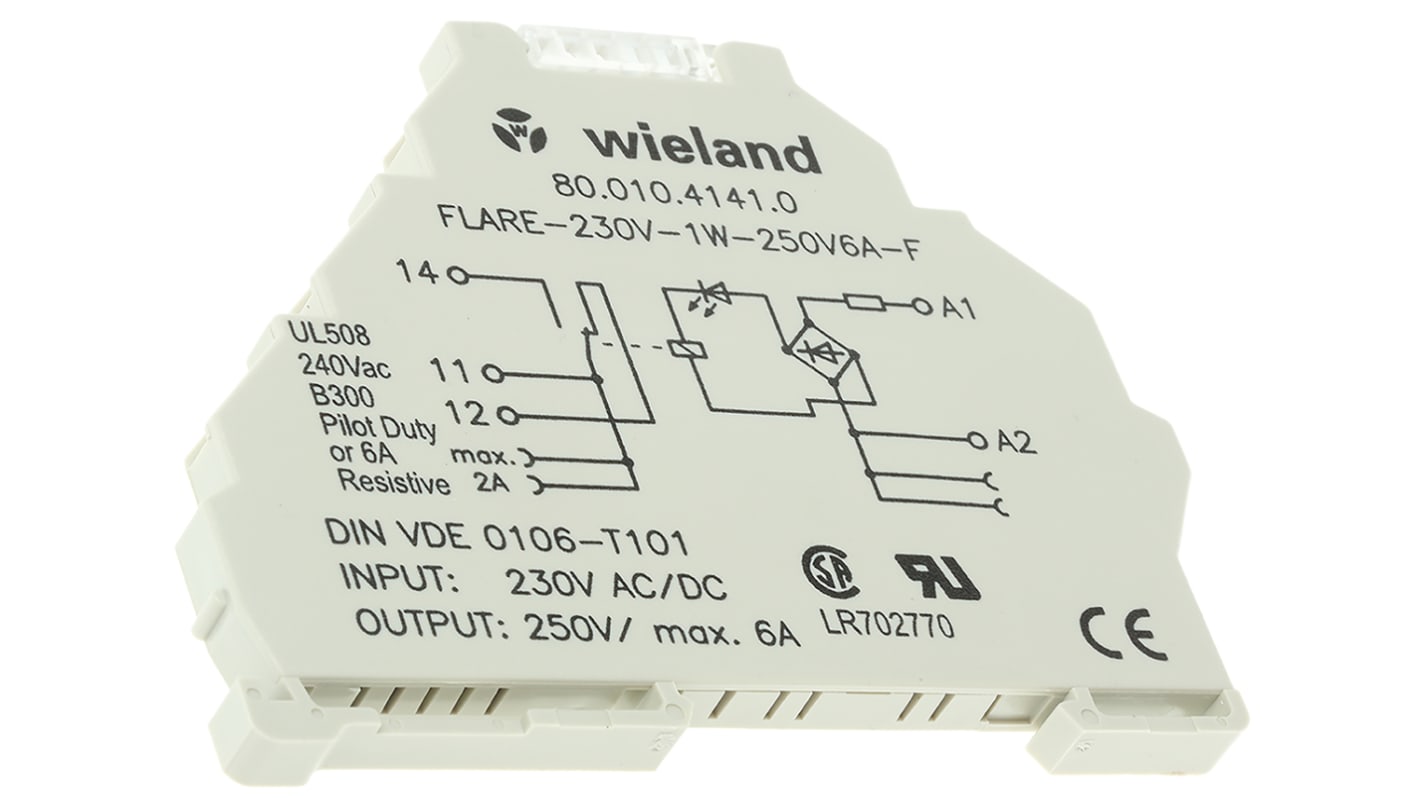

Wieland flare Series Interface Relay, DIN Rail Mount, 230V ac Coil, SPDT, 1-Pole
- RS stock no.:
- 341-4834
- Distrelec Article No.:
- 304-23-933
- Mfr. Part No.:
- 80.010.4141.0
- Manufacturer:
- Wieland
Bulk discount available
Subtotal (1 unit)*
R 879,93
(exc. VAT)
R 1 011,92
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 3 unit(s) ready to ship from another location
- Plus 22 unit(s) shipping from 10 March 2026
- Plus 40 unit(s) shipping from 16 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 9 | R 879.93 |
| 10 - 19 | R 857.93 |
| 20 + | R 832.19 |
*price indicative
- RS stock no.:
- 341-4834
- Distrelec Article No.:
- 304-23-933
- Mfr. Part No.:
- 80.010.4141.0
- Manufacturer:
- Wieland
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Wieland | |
| Coil Voltage | 230V ac | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Series | flare | |
| Number of Poles | 1 | |
| Minimum Input Voltage | 195.5V ac/dc | |
| Maximum Input Voltage | 253V ac/dc | |
| Switching Voltage | 250V ac | |
| Terminal Type | Cage Clamp | |
| Depth | 6.2mm | |
| Height | 89mm | |
| Length | 70mm | |
| Contact Material | Silver Alloy | |
| Input Current | 14mA | |
| Turn Off Time | 15ms | |
| Turn On Time | 10ms | |
| Operating Temperature Range | 0 → +60°C | |
| Minimum Operating Temperature | 0°C | |
| Maximum Operating Temperature | +60°C | |
| Input Voltage Range | 195.5 → 253V ac/dc | |
| Standards Met | CSA, UL | |
| Relay Switching Classification | Interface Relay Module | |
| Dimensions | 70 x 6.2 x 89mm | |
| Select all | ||
|---|---|---|
Brand Wieland | ||
Coil Voltage 230V ac | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series flare | ||
Number of Poles 1 | ||
Minimum Input Voltage 195.5V ac/dc | ||
Maximum Input Voltage 253V ac/dc | ||
Switching Voltage 250V ac | ||
Terminal Type Cage Clamp | ||
Depth 6.2mm | ||
Height 89mm | ||
Length 70mm | ||
Contact Material Silver Alloy | ||
Input Current 14mA | ||
Turn Off Time 15ms | ||
Turn On Time 10ms | ||
Operating Temperature Range 0 → +60°C | ||
Minimum Operating Temperature 0°C | ||
Maximum Operating Temperature +60°C | ||
Input Voltage Range 195.5 → 253V ac/dc | ||
Standards Met CSA, UL | ||
Relay Switching Classification Interface Relay Module | ||
Dimensions 70 x 6.2 x 89mm | ||
Exempt
- COO (Country of Origin):
- CZ
Terminal Block Relay
DIN rail mounting, hermetically sealed
Plug in jumpers to link common potentials
Status LED and marking label
Integrated diodes for coil suppression and polarity protection
Contact rating 6A/250V ac
Switching voltage 250 Vac
Operating temperature range 0 to +50°C
Approvals
CSA; UL recognised
