Siemens LZS Series Coupling Relay, Plug-in, 230 V ac Coil, SPDT
- RS stock no.:
- 255-0894
- Mfr. Part No.:
- LZS:RT3D4T30
- Manufacturer:
- Siemens
Subtotal (1 pack of 5 units)*
R 2 929,82
(exc. VAT)
R 3 369,295
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 24 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 5 + | R 585.964 | R 2,929.82 |
*price indicative
- RS stock no.:
- 255-0894
- Mfr. Part No.:
- LZS:RT3D4T30
- Manufacturer:
- Siemens
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Coupling Relay | |
| Coil Voltage | 230 V ac | |
| Contact Configuration | SPDT | |
| Mount Type | Plug-in | |
| Series | LZS | |
| Terminal Type | Screw | |
| Switching Current | 1 A | |
| Switching AC Voltage | 240 V ac | |
| Coil Type | Non-Latching | |
| Switching DC Voltage | 60 V dc | |
| Minimum Operating Temperature | -40°C | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 70°C | |
| Height | 15mm | |
| Length | 50mm | |
| Width | 10 mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Coupling Relay | ||
Coil Voltage 230 V ac | ||
Contact Configuration SPDT | ||
Mount Type Plug-in | ||
Series LZS | ||
Terminal Type Screw | ||
Switching Current 1 A | ||
Switching AC Voltage 240 V ac | ||
Coil Type Non-Latching | ||
Switching DC Voltage 60 V dc | ||
Minimum Operating Temperature -40°C | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 70°C | ||
Height 15mm | ||
Length 50mm | ||
Width 10 mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- DE

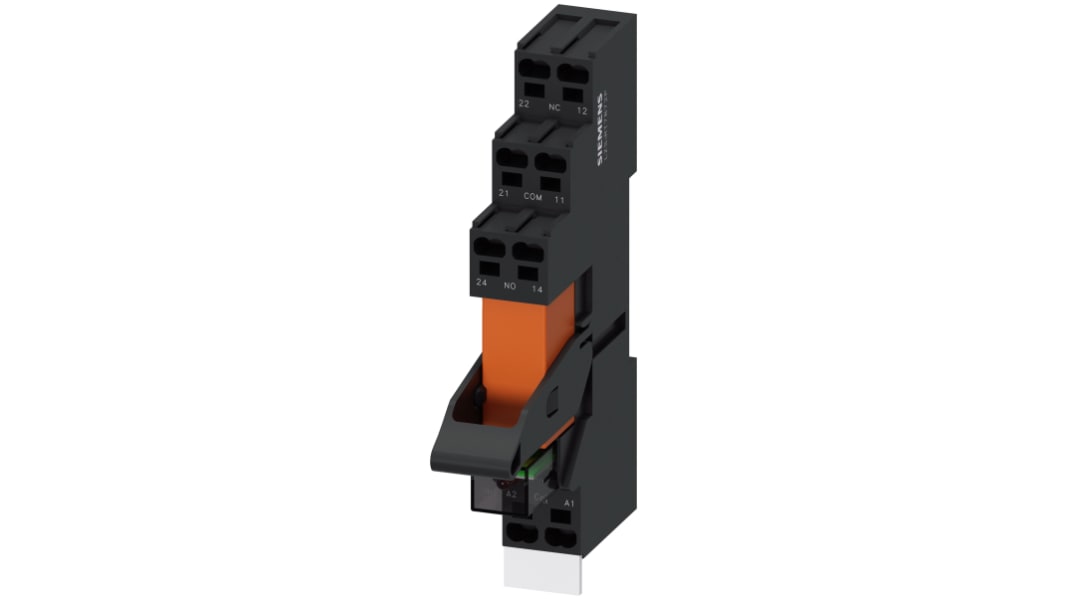

The Siemens Plug-in relay complete unit module red Socket with logic isolation Spring-type terminal. It has 1 changeover contacts. The coupling relays with semiconductor output have low power consumption and are therefore particularly well-suited to solid-state systems. In the versions equipped with LEDs, these indicate the switching state. Coupling relays have a test button. This can be used to force the relays into the switching state and to lock it without electrical control. This is indicated by a raised petrol-colored lever.
Screw-type terminals
Snap-on mounting
