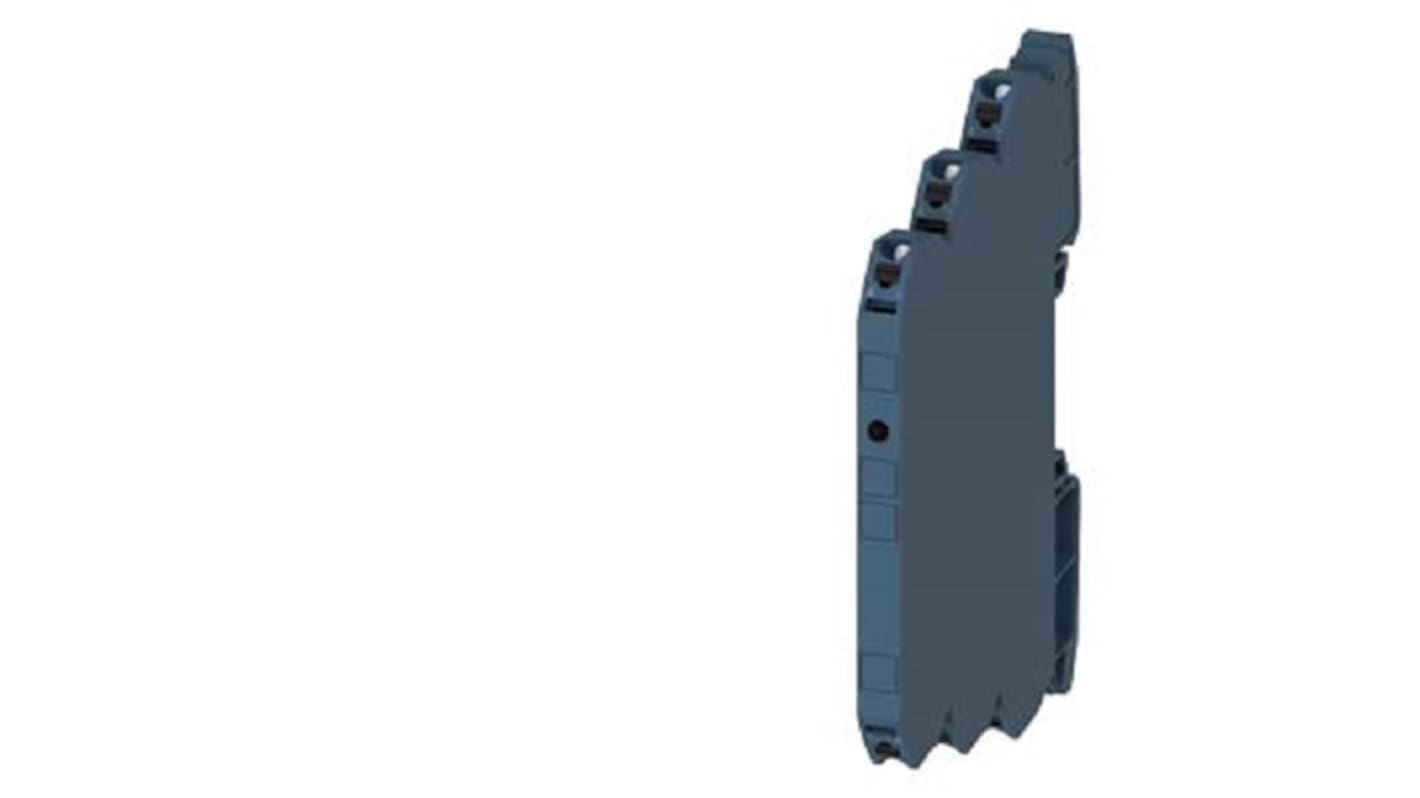

Siemens SIRIUS 3RQ3 Output Coupler Series Relay, Plug-in, 24 V dc Coil, SPDT
- RS stock no.:
- 255-0839
- Mfr. Part No.:
- 3RQ30182AM080AX0
- Manufacturer:
- Siemens
Unavailable
RS will no longer stock this product.
Alternative
This product is not currently available. Here is our alternative recommendation.
1 Pack of 10
R 8,654.88
(exc. VAT)
R 9,953.11
(inc. VAT)
- RS stock no.:
- 255-0839
- Mfr. Part No.:
- 3RQ30182AM080AX0
- Manufacturer:
- Siemens
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Siemens | |
| Product Type | Relay | |
| Coil Voltage | 24 V dc | |
| Contact Configuration | SPDT | |
| Mount Type | Plug-in | |
| Series | SIRIUS 3RQ3 Output Coupler | |
| Terminal Type | Screw | |
| Switching Current | 1 A | |
| Coil Type | Non-Latching | |
| Minimum Operating Temperature | -40°C | |
| Switching AC Voltage | 240 V ac | |
| Switching DC Voltage | 60 V dc | |
| Contact Material | Silver Alloy | |
| Maximum Operating Temperature | 70°C | |
| Standards/Approvals | RoHS | |
| Length | 50mm | |
| Width | 10 mm | |
| Height | 15mm | |
| Select all | ||
|---|---|---|
Brand Siemens | ||
Product Type Relay | ||
Coil Voltage 24 V dc | ||
Contact Configuration SPDT | ||
Mount Type Plug-in | ||
Series SIRIUS 3RQ3 Output Coupler | ||
Terminal Type Screw | ||
Switching Current 1 A | ||
Coil Type Non-Latching | ||
Minimum Operating Temperature -40°C | ||
Switching AC Voltage 240 V ac | ||
Switching DC Voltage 60 V dc | ||
Contact Material Silver Alloy | ||
Maximum Operating Temperature 70°C | ||
Standards/Approvals RoHS | ||
Length 50mm | ||
Width 10 mm | ||
Height 15mm | ||
- COO (Country of Origin):
- TN
The Siemens output coupling relays differ with regard to the positioning of the terminals and the relays in narrow design are used for coupling control signals from and to a controller.
TOP wiring with spring-loaded terminals for quick and reliable wiring
Low space requirements in the control cabinet
Reduced stock-keeping due to fewer variance
Clearly visible functional state of the coupling relay by green LED
Integrated reverse polarity
