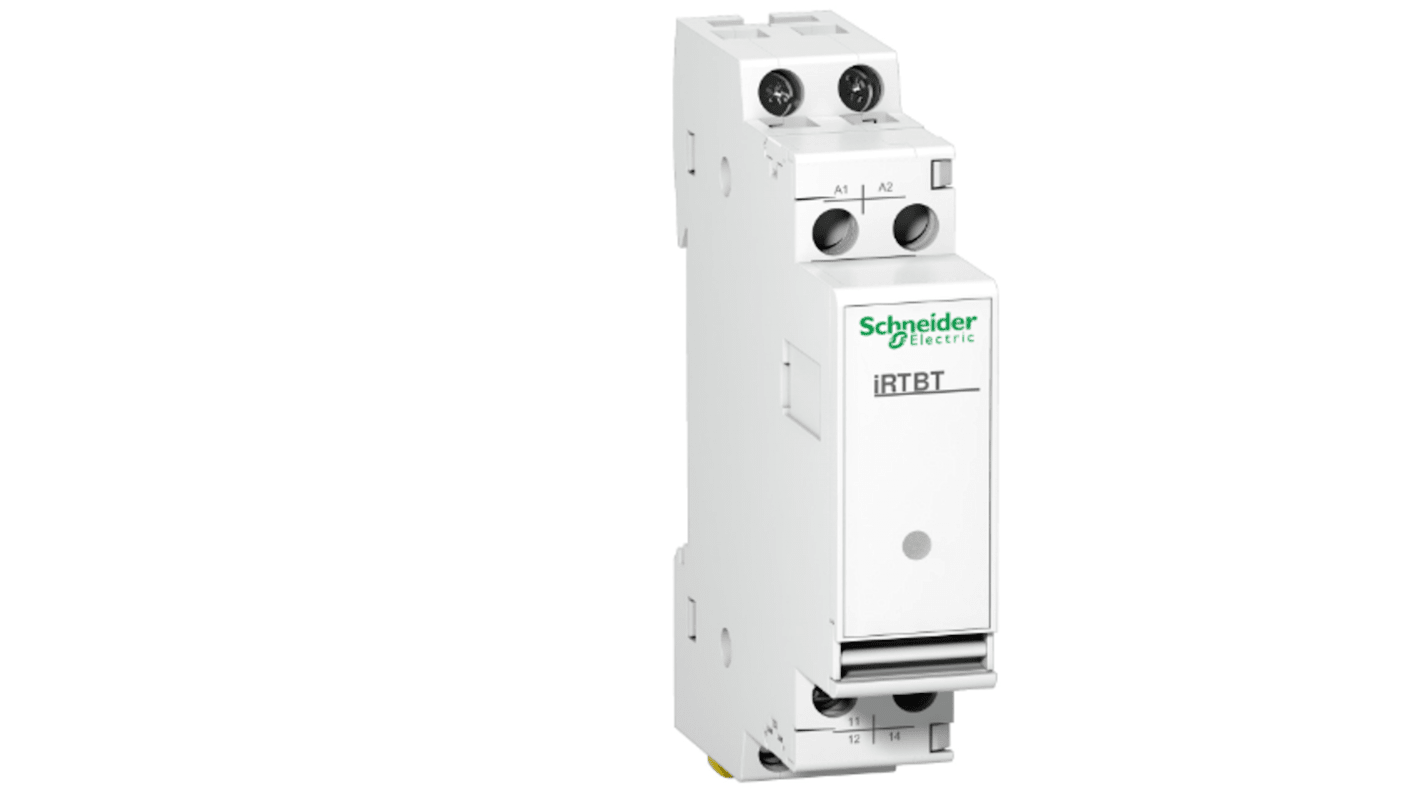

Schneider Electric Acti9 Control Series Interface Relay, DIN Rail, 24 V Coil, SPDT
- RS stock no.:
- 220-1188
- Mfr. Part No.:
- A9A15416
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
R 2 642,40
(exc. VAT)
R 3 038,76
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 20 April 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 2,642.40 |
*price indicative
- RS stock no.:
- 220-1188
- Mfr. Part No.:
- A9A15416
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Interface Relay | |
| Coil Voltage | 24 V | |
| Contact Configuration | SPDT | |
| Mount Type | DIN Rail | |
| Series | Acti9 Control | |
| Terminal Type | Tunnel | |
| Switching DC Voltage | 10 V dc | |
| Minimum Operating Temperature | -60°C | |
| Switching AC Voltage | 250 V ac | |
| Maximum Operating Temperature | 80°C | |
| Length | 85mm | |
| Height | 18mm | |
| Width | 67 mm | |
| Standards/Approvals | RoHS | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Interface Relay | ||
Coil Voltage 24 V | ||
Contact Configuration SPDT | ||
Mount Type DIN Rail | ||
Series Acti9 Control | ||
Terminal Type Tunnel | ||
Switching DC Voltage 10 V dc | ||
Minimum Operating Temperature -60°C | ||
Switching AC Voltage 250 V ac | ||
Maximum Operating Temperature 80°C | ||
Length 85mm | ||
Height 18mm | ||
Width 67 mm | ||
Standards/Approvals RoHS | ||
- COO (Country of Origin):
- FR
The Schneider Electric application consist of Extra low voltage relay iRTBT - 10mA/10VDC - 5A/250VAC , control circuit voltage is 12...24 VAC/DC.
Mounting mode - Fixed Mounting support - 35 mm symmetrical DIN rail
