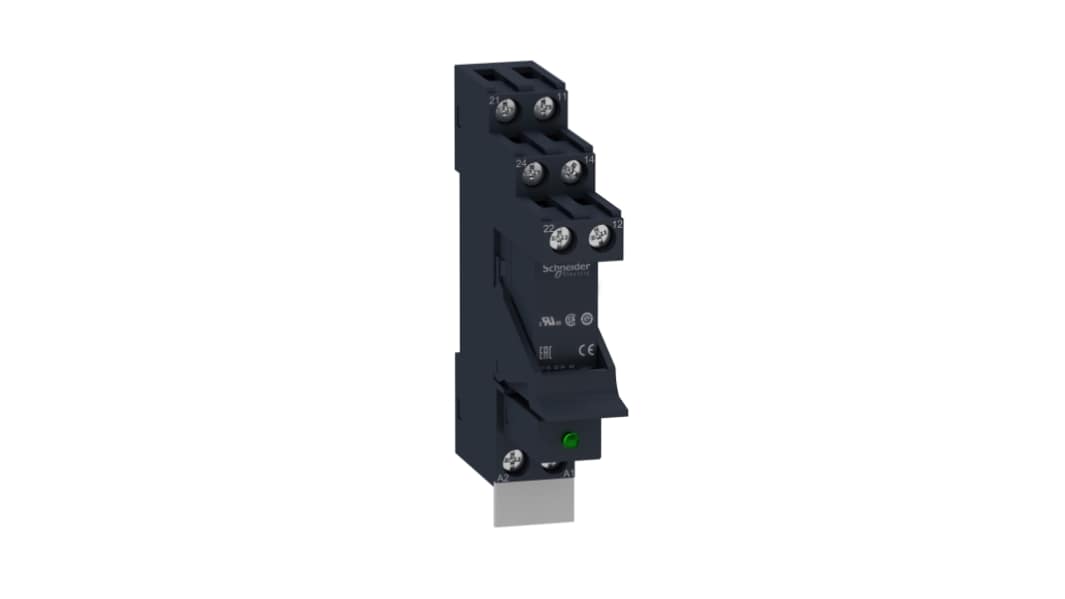

Schneider Electric Harmony Relay RSB Series Interface Relay, DIN Rail, 24 V dc Coil, DPDT

RS stock no.:: 203-5209
Mfr. Part No.:: RSB2A080BDPV
Manufacturer:: Schneider Electric

Schneider Electric Harmony Relay RSB Series Interface Relay, DIN Rail, 24 V dc Coil, DPDT

Subtotal (1 unit)*

R 474,82

(exc. VAT)

R 546,04

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

161 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 474.82

*price indicative

RS stock no.:: 203-5209
Mfr. Part No.:: RSB2A080BDPV
Manufacturer:: Schneider Electric

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Schneider Electric
	Coil Voltage	24 V dc
	Product Type	Interface Relay
	Contact Configuration	DPDT
	Mount Type	DIN Rail
	Series	Harmony Relay RSB
	Switching Current	8 A
	Switching DC Voltage	28 V dc
	Switching AC Voltage	250 V ac
	Minimum Operating Temperature	-40°C
	Maximum Operating Temperature	85°C
	Contact Material	Silver Alloy
	Standards/Approvals	EN/IEC 61810-1 CSA C22.2 No 14 UL 508 IEC 61984 CE UL CSA EAC RoHS REACH
	Height	64.2mm
	Width	15.6 mm
	Length	84.2mm

	Select all
	Brand Schneider Electric
	Coil Voltage 24 V dc
	Product Type Interface Relay
	Contact Configuration DPDT
	Mount Type DIN Rail
	Series Harmony Relay RSB
	Switching Current 8 A
	Switching DC Voltage 28 V dc
	Switching AC Voltage 250 V ac
	Minimum Operating Temperature -40°C
	Maximum Operating Temperature 85°C
	Contact Material Silver Alloy
	Standards/Approvals EN/IEC 61810-1 CSA C22.2 No 14 UL 508 IEC 61984 CE UL CSA EAC RoHS REACH
	Height 64.2mm
	Width 15.6 mm
	Length 84.2mm

Exempt

COO (Country of Origin):: AT

Schneider Electric Harmony Relay RSB Series Interface Relay, 24V DC Coil Voltage, DPDT Contact Configuration - RSB2A080BDPV

This interface relay is a key element in various automation and control systems. It is designed for operational stability in numerous industrial applications, offering the flexibility needed for contemporary electronic configurations. Its sturdy construction and consistent performance make it well-suited for environments that require efficiency.

Features & Benefits

• Features a DPDT contact configuration for diverse applications

• Maximum load current rating of 8A ensures dependable operation

• Suitable for DIN rail mounting, simplifying the installation process

• LED indicator for easy status monitoring

Applications

• Used in electronic control panels for dependable switching

• Implemented in building management systems for relay

• Functions with motor controllers and safety systems

• Appropriate for a range of electrical switching tasks

What is the maximum and minimum input voltage?

The relay accepts a minimum input voltage of 19.2V and a maximum of 26.4V DC, ensuring proper operation within specified limits.

How quickly does it operate on load?

The operating time under load is approximately 20 ms, allowing efficient switching for dynamic applications.

What type of terminals does it use for connection?

Terminals accommodate flexible and solid cable types ranging from 0.25mm² to 2.5mm², catering to various installation requirements.

How does mechanical durability affect performance?

With a mechanical durability of 30 million cycles, it provides longevity and consistent performance, reducing maintenance needs over time.
