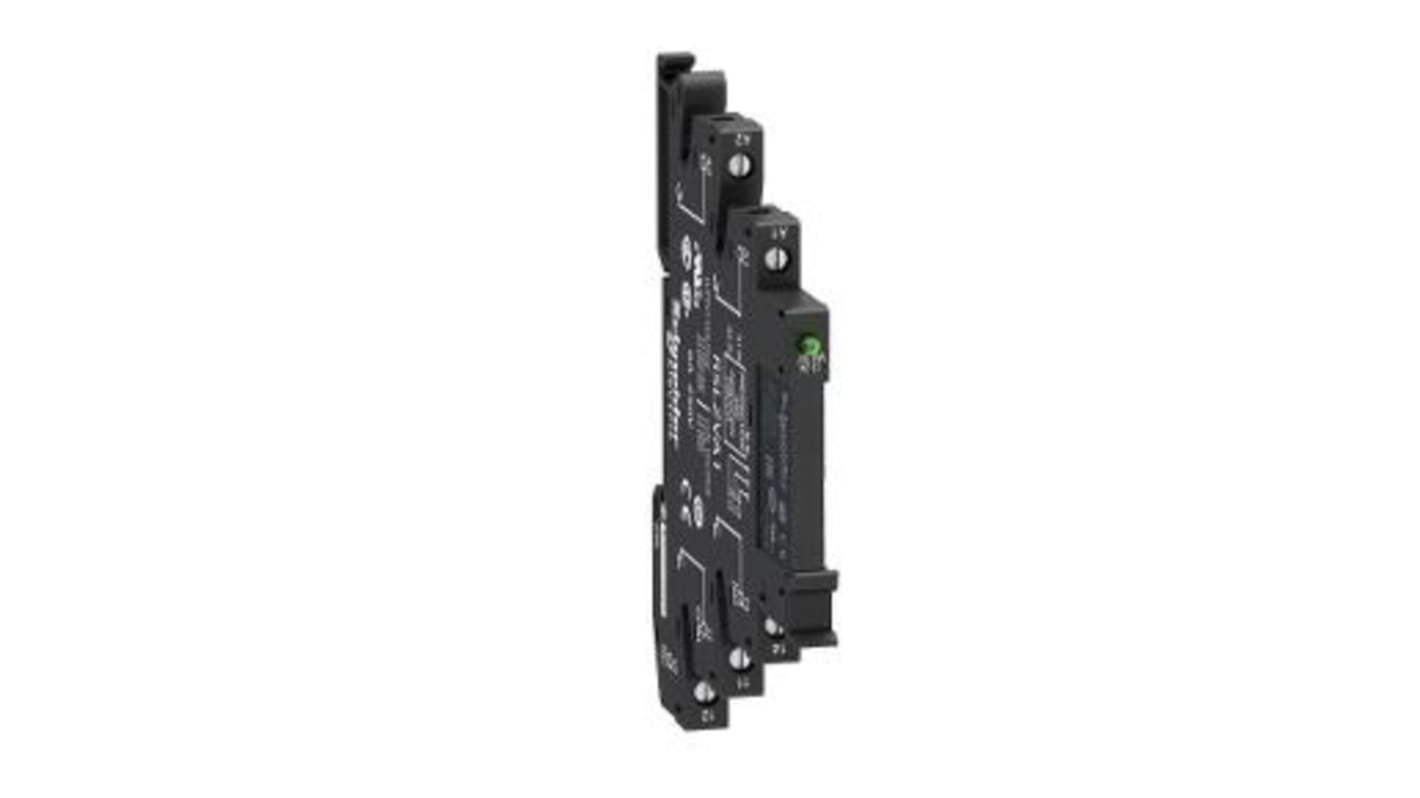

Schneider Electric Harmony Relay RSL Series Interface Relay, DIN Rail Mount, 24V dc Coil, SPDT, 6 A @ 250 V ac Load
- RS stock no.:
- 179-7327
- Distrelec Article No.:
- 301-12-605
- Mfr. Part No.:
- RSL1PVBU
- Manufacturer:
- Schneider Electric
Subtotal (1 unit)*
R 551 60
(exc. VAT)
R 634 34
(inc. VAT)
FREE delivery for orders over R 1 500,00
- 261 unit(s) ready to ship from another location
Units | Per unit |
|---|---|
| 1 - 4 | R 551,60 |
| 5 - 9 | R 537,81 |
| 10 + | R 521,68 |
*price indicative
Better World
Our Better World range features products that make it easy for you to make a greener product choice you can trust. Click here to find out more.
- RS stock no.:
- 179-7327
- Distrelec Article No.:
- 301-12-605
- Mfr. Part No.:
- RSL1PVBU
- Manufacturer:
- Schneider Electric
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Coil Voltage | 24V dc | |
| Contact Configuration | SPDT | |
| Mounting Type | DIN Rail | |
| Series | Harmony Relay RSL | |
| Load Current Rating | 6 A @ 250 V ac | |
| Load Voltage Rating | 12V | |
| Minimum Input Voltage | 21.6V ac/dc | |
| Maximum Input Voltage | 28.8V ac/dc | |
| Switching Voltage | 277V | |
| Terminal Type | Screw | |
| Depth | 78.7mm | |
| Height | 96mm | |
| Length | 6.2mm | |
| Contact Material | Silver Alloy | |
| Input Current | 6A | |
| Better World Verification | Green Premium | |
| Better World Product | Yes | |
| Accessory Type | Plug In Slim Relay | |
| Standards Met | CSA, EAC Certified, EN/IEC, EN/IEC 60068-2-6, UL, UL Certified | |
| Special Features | Slim Relay Mounted on Screw Socket with LED and Protection Circuit | |
| Turn On Time | 5ms | |
| Control Resistance | 3390Ω | |
| Input Voltage Range | 21.6 → 28.8V ac/dc | |
| Dimensions | 6.2 x 78.7 x 96mm | |
| Life | 10000000 (Mechanical) cycles, 60000 (Electrical) cycles | |
| Maximum Operating Temperature | +85°C | |
| Minimum Operating Temperature | -40°C | |
| Relay Switching Classification | Interface Plug-In Relay | |
| Operating Temperature Range | -40 → +85°C | |
Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Coil Voltage 24V dc | ||
Contact Configuration SPDT | ||
Mounting Type DIN Rail | ||
Series Harmony Relay RSL | ||
Load Current Rating 6 A @ 250 V ac | ||
Load Voltage Rating 12V | ||
Minimum Input Voltage 21.6V ac/dc | ||
Maximum Input Voltage 28.8V ac/dc | ||
Switching Voltage 277V | ||
Terminal Type Screw | ||
Depth 78.7mm | ||
Height 96mm | ||
Length 6.2mm | ||
Contact Material Silver Alloy | ||
Input Current 6A | ||
Better World Verification Green Premium | ||
Better World Product Yes | ||
Accessory Type Plug In Slim Relay | ||
Standards Met CSA, EAC Certified, EN/IEC, EN/IEC 60068-2-6, UL, UL Certified | ||
Special Features Slim Relay Mounted on Screw Socket with LED and Protection Circuit | ||
Turn On Time 5ms | ||
Control Resistance 3390Ω | ||
Input Voltage Range 21.6 → 28.8V ac/dc | ||
Dimensions 6.2 x 78.7 x 96mm | ||
Life 10000000 (Mechanical) cycles, 60000 (Electrical) cycles | ||
Maximum Operating Temperature +85°C | ||
Minimum Operating Temperature -40°C | ||
Relay Switching Classification Interface Plug-In Relay | ||
Operating Temperature Range -40 → +85°C | ||
