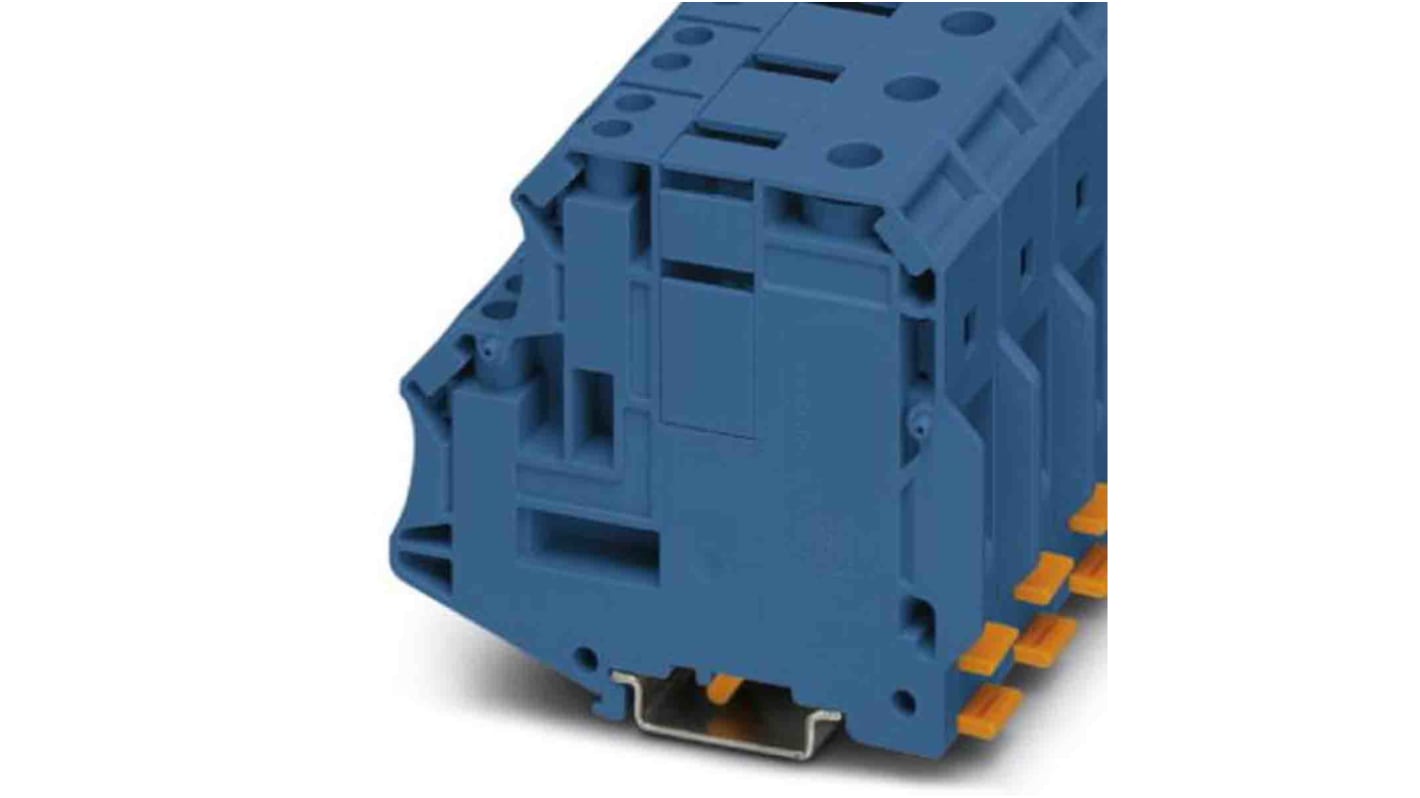

Phoenix Contact Distribution Block, 5 Way, 450 V, 192A, Blue
- RS stock no.:
- 201-5180
- Mfr. Part No.:
- 3213143
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 10 units)*
R 6 015,00
(exc. VAT)
R 6 917,20
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 16 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 10 + | R 601.50 | R 6,015.00 |
*price indicative
- RS stock no.:
- 201-5180
- Mfr. Part No.:
- 3213143
- Manufacturer:
- Phoenix Contact
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Product Type | Distribution Block | |
| Number of Ways | 5 | |
| Current | 192A | |
| Housing Material | Polyamide | |
| IP Rating | IP20 | |
| Voltage | 450 V | |
| Connections Per Pole - Load Side | 5 | |
| Wire Size - Load Side | 2 AWG | |
| Termination Type - Load Side | Push-in | |
| Minimum Operating Temperature | -60°C | |
| Termination Type - Line Side | Screw | |
| Connections Per Pole - Line Side | 5 | |
| Colour | Blue | |
| Series | PTU | |
| Width | 20.3 mm | |
| Height | 79.4mm | |
| Maximum Operating Temperature | 105°C | |
| Length | 88.5mm | |
| Standards/Approvals | No | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Product Type Distribution Block | ||
Number of Ways 5 | ||
Current 192A | ||
Housing Material Polyamide | ||
IP Rating IP20 | ||
Voltage 450 V | ||
Connections Per Pole - Load Side 5 | ||
Wire Size - Load Side 2 AWG | ||
Termination Type - Load Side Push-in | ||
Minimum Operating Temperature -60°C | ||
Termination Type - Line Side Screw | ||
Connections Per Pole - Line Side 5 | ||
Colour Blue | ||
Series PTU | ||
Width 20.3 mm | ||
Height 79.4mm | ||
Maximum Operating Temperature 105°C | ||
Length 88.5mm | ||
Standards/Approvals No | ||
- COO (Country of Origin):
- CN
The Phoenix contact potential collective terminal has a screw connection method and wire size 4 - 3/0.
Screw connection method
Mounting type NS 35/7,5, NS 35/15
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
