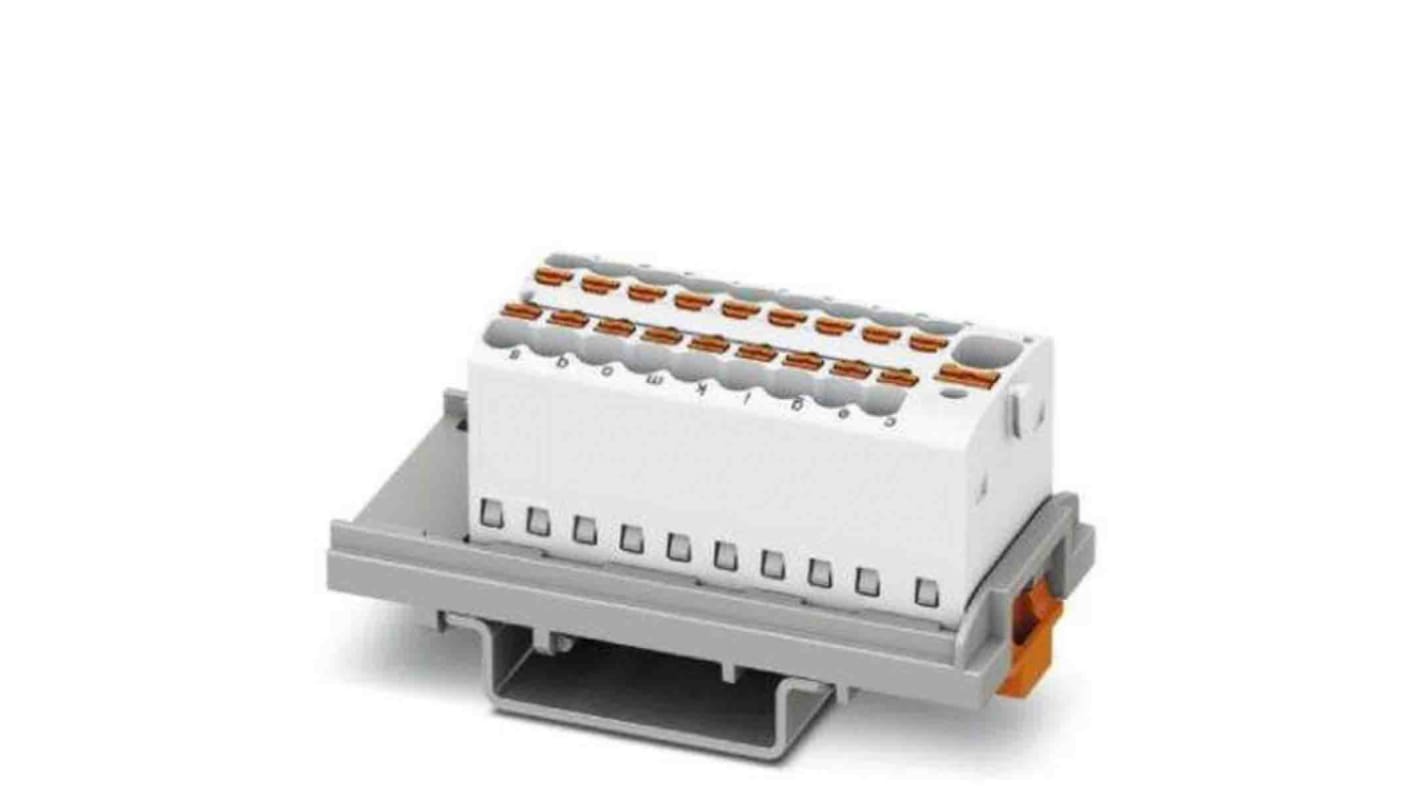

Phoenix Contact Distribution Block, 19 Way, 500 V, 17.5A, White
- RS stock no.:
- 201-4065
- Mfr. Part No.:
- 1047461
- Manufacturer:
- Phoenix Contact
Subtotal (1 pack of 20 units)*
R 3 038,68
(exc. VAT)
R 3 494,48
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- Shipping from 17 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 20 + | R 151.934 | R 3,038.68 |
*price indicative
- RS stock no.:
- 201-4065
- Mfr. Part No.:
- 1047461
- Manufacturer:
- Phoenix Contact
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Phoenix Contact | |
| Number of Ways | 19 | |
| Product Type | Distribution Block | |
| Current | 17.5A | |
| Housing Material | Polyamide | |
| IP Rating | IP20 | |
| Voltage | 500 V | |
| Termination Type - Line Side | Push-in | |
| Minimum Operating Temperature | -35°C | |
| Wire Size - Load Side | 14 AWG | |
| Connections Per Pole - Load Side | 19 | |
| Wire Size - Line Side | 14 AWG | |
| Connections Per Pole - Line Side | 19 | |
| Termination Type - Load Side | Push-in | |
| Colour | White | |
| Series | PTFIX | |
| Standards/Approvals | No | |
| Width | 43.9 mm | |
| Height | 18.7mm | |
| Length | 21.6mm | |
| Maximum Operating Temperature | 105°C | |
| Select all | ||
|---|---|---|
Brand Phoenix Contact | ||
Number of Ways 19 | ||
Product Type Distribution Block | ||
Current 17.5A | ||
Housing Material Polyamide | ||
IP Rating IP20 | ||
Voltage 500 V | ||
Termination Type - Line Side Push-in | ||
Minimum Operating Temperature -35°C | ||
Wire Size - Load Side 14 AWG | ||
Connections Per Pole - Load Side 19 | ||
Wire Size - Line Side 14 AWG | ||
Connections Per Pole - Line Side 19 | ||
Termination Type - Load Side Push-in | ||
Colour White | ||
Series PTFIX | ||
Standards/Approvals No | ||
Width 43.9 mm | ||
Height 18.7mm | ||
Length 21.6mm | ||
Maximum Operating Temperature 105°C | ||
- COO (Country of Origin):
- PL
The Phoenix Contact PTFIX series distribution block with push in connection offer a flexible distribution solution and it used NS 35/7,5, NS 35/15 mounting type. It can be used straight away and expanded as needed. It has 19 way of connection and its width is 21.6mm. It can be bridged internally and its colour is white.
Ambient temperature is -60 °C to 85 °C
Number of level is 1
This article is apart of Phoenix Contact's entire 'Complete Line' range. Complete Line from Phoenix contact is a range designed to bring you the efficiency, ease of use and consistency to your control cabinet. Learn more at Complete Line Page.
