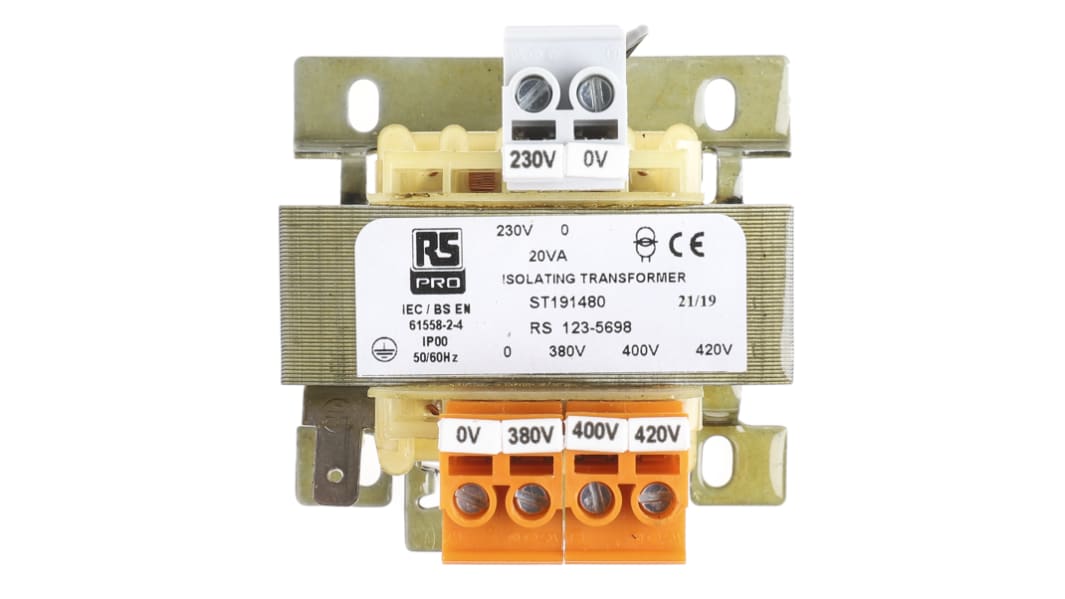

RS PRO 20 VA DIN Rail Transformer, 380 to 420 V ac Primary, 230 V ac, 24 V Secondary, IEC/BS/EN 61558-2-4, AS/NZS
- RS stock no.:
- 123-5698
- Manufacturer:
- RS PRO
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 1 421,83
(exc. VAT)
R 1 635,10
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 156 unit(s) ready to ship from another location
- Plus 50 unit(s) shipping from 11 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,421.83 |
| 5 + | R 1,386.28 |
*price indicative
- RS stock no.:
- 123-5698
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Primary Voltage | 380 to 420 V ac | |
| Product Type | DIN Rail Transformer | |
| Secondary Voltage | 230 V ac, 24 V | |
| Mount Type | Screw, DIN Rail | |
| Number of Outputs | 1 | |
| Length | 66mm | |
| Power | 20VA | |
| Width | 56mm | |
| Depth | 88mm | |
| Termination Type | Screw | |
| Minimum Operating Frequency | 50Hz | |
| Maximum Operating Frequency | 60Hz | |
| Weight | 600g | |
| Standards/Approvals | IEC/BS/EN 61558-2-4, AS/NZS 61558.2.4, CE, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, IEC/BS/EN 61558-1, AS/NZS 61558.2.6, RoHS | |
| Maximum Operating Temperature | 130°C | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Primary Voltage 380 to 420 V ac | ||
Product Type DIN Rail Transformer | ||
Secondary Voltage 230 V ac, 24 V | ||
Mount Type Screw, DIN Rail | ||
Number of Outputs 1 | ||
Length 66mm | ||
Power 20VA | ||
Width 56mm | ||
Depth 88mm | ||
Termination Type Screw | ||
Minimum Operating Frequency 50Hz | ||
Maximum Operating Frequency 60Hz | ||
Weight 600g | ||
Standards/Approvals IEC/BS/EN 61558-2-4, AS/NZS 61558.2.4, CE, IEC/BS/EN 61558-2-6, AS/NZS 61558.1, IEC/BS/EN 61558-1, AS/NZS 61558.2.6, RoHS | ||
Maximum Operating Temperature 130°C | ||
- COO (Country of Origin):
- PL
RS PRO Single Phase DIN Rail Isolation Transformer
Brought to you by RS Pro, a range of isolation transformers, performing in a single phase solution. Featuring screw connectors for multiple inputs and including robust brackets for screw and/or DIN Rail fixing. High quality isolation transformers are excellent within various applications. For safety reasons, an earth terminal is provided and the use of rapped primary input windings will ensure smaller voltage variations. Low regulation and highly efficient, these RS Pro transformers are an excellent addition to electrical applications. All models are highly reliable and excellent quality.
Features and Benefits
• 100% electrical and flash tested
• Various primary voltage ratings, 24V ac secondary rating
• Low noise laminations
• Varnish impregnated
• Temperature class - B
• 20VA power rating
What is an isolation transformer?
Transformers are a common occurrence within most electronic circuits. Isolation transformer units are a significant type of transformer commonly used for safety purposes. They are a vigilant source of protection against electric shocks and minimize electrical noises within sensitive devices.
What are transformers used for?
Transformers are used to increase or decrease voltages within an AC circuit. Transformers are found in almost every electrical environment, but DIN Rail transformers are specifically used within workplaces and industrial environments, similar to power supplies. They are commonly mounted within enclosures and factory assembly lines supporting DIN Rail mounting.
