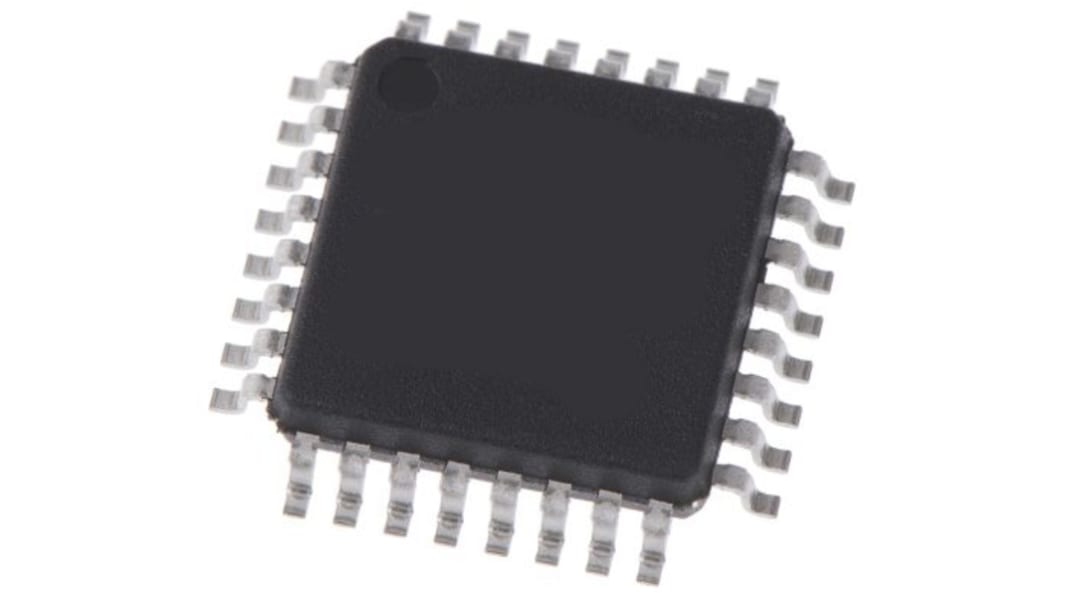

onsemi 12.2ns Delay Line, 32-Pin LQFP

View this category
Bulk discount available

Subtotal (1 unit)*

R 417,42

(exc. VAT)

R 480,03

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 250 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 - 9R 417.42
10 - 24R 406.98
25 - 49R 394.77
50 - 99R 378.98
100 +R 363.82

*price indicative

Packaging Options:
RS stock no.:
186-9167
Mfr. Part No.:
MC100EP195FAG
Manufacturer:
onsemi
Find similar products by selecting one or more attributes.
Select all

Brand

onsemi

Logic Function

Delay Line

Mounting Type

Surface Mount

Package Type

LQFP

Pin Count

32

Dimensions

7 x 7 x 1.45mm

Total Number of Taps

1024

Absolute Increment

10ps

Delay to First Tap

2.2ns

Maximum Delay Time

12.2ns

Maximum Operating Supply Voltage

3.6 V

Number of Independent Delay Inputs

10

Maximum Operating Temperature

+85 °C

Minimum Operating Temperature

-40 °C

Minimum Operating Supply Voltage

3 V

Maximum Frequency > 1.2 Ghz Typical
Programmable Range: 2.2 ns to 12.2 ns
10 ps Increments
PECL Mode Operating Range: VCC = 3.0 V with VEE = 0 V
NECL Mode Operating Range: VCC = 0 V with VEE = -3.0 V
Open Input Default State
Safety Clamp on Inputs
A Logic High on the ENbar Pin Will Force Q to Logic Low
D[0:10] Can Accept Either ECL, CMOS, or TTL Inputs.
VBB Output Reference Voltage
Applications
Automated Test Equipement (ATE)
General Purpose Data and Clock Interface
