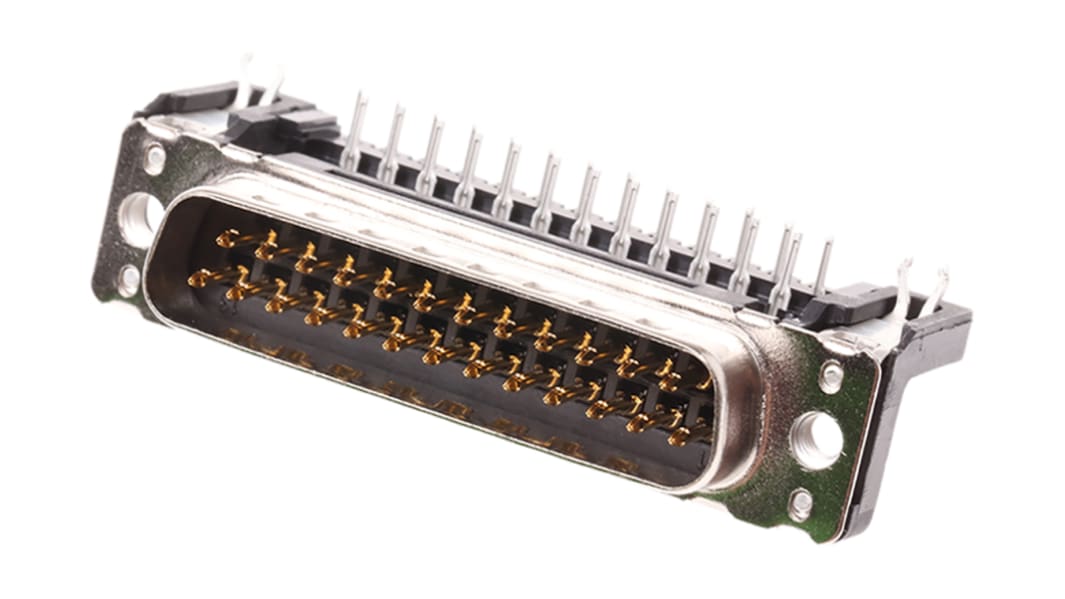

Harting 25 Way Right Angle Through Hole D-sub Connector Plug, 2.76mm Pitch, with Boardlocks, M3 Threaded Inserts
- RS stock no.:
- 923-0553
- Mfr. Part No.:
- 09653627811
- Manufacturer:
- HARTING
Usually in stock
Not Available for premium delivery
Added
Price (Excl VAT) Each (In a Box of 100)
R 121,774
(exc. VAT)
R 140,04
(inc. VAT)
| Units | Per unit | Per Box* |
| 100 - 100 | R 121,774 | R 12 177,40 |
| 200 - 900 | R 118,729 | R 11 872,90 |
| 1000 - 2400 | R 115,167 | R 11 516,70 |
| 2500 - 4900 | R 110,561 | R 11 056,10 |
| 5000 + | R 106,138 | R 10 613,80 |
| *price indicative | ||
- RS stock no.:
- 923-0553
- Mfr. Part No.:
- 09653627811
- Manufacturer:
- HARTING
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- CH
Product Details
Harting 2.54mm DIN 41652 Standard D-Sub Connectors, Stamped Pins, Board Locks
A concise range of stamped pin D-sub connectors, ideal for cable to board applications such as communication and data interfacing. These durable D connectors have a good mating cycle and feature plated steel housings along with copper alloy contacts.
Standard subminiature D connectors
Stamped contacts
Performance level 2
Metal shell
4-40 UNC
Stamped contacts
Performance level 2
Metal shell
4-40 UNC
Standards
IEC 60 807
Specification
Attribute | Value |
|---|---|
| Number of Contacts | 25 |
| Gender | Male |
| Body Orientation | Right Angle |
| Mounting Type | Through Hole |
| Pitch | 2.76mm |
| Mounting Hardware | Boardlocks, M3 Threaded Inserts |
| Termination Method | Solder |
| Current Rating | 6.5A |
| Housing Material | Metal |
| Length | 53.2mm |
| Width | 13.6mm |
