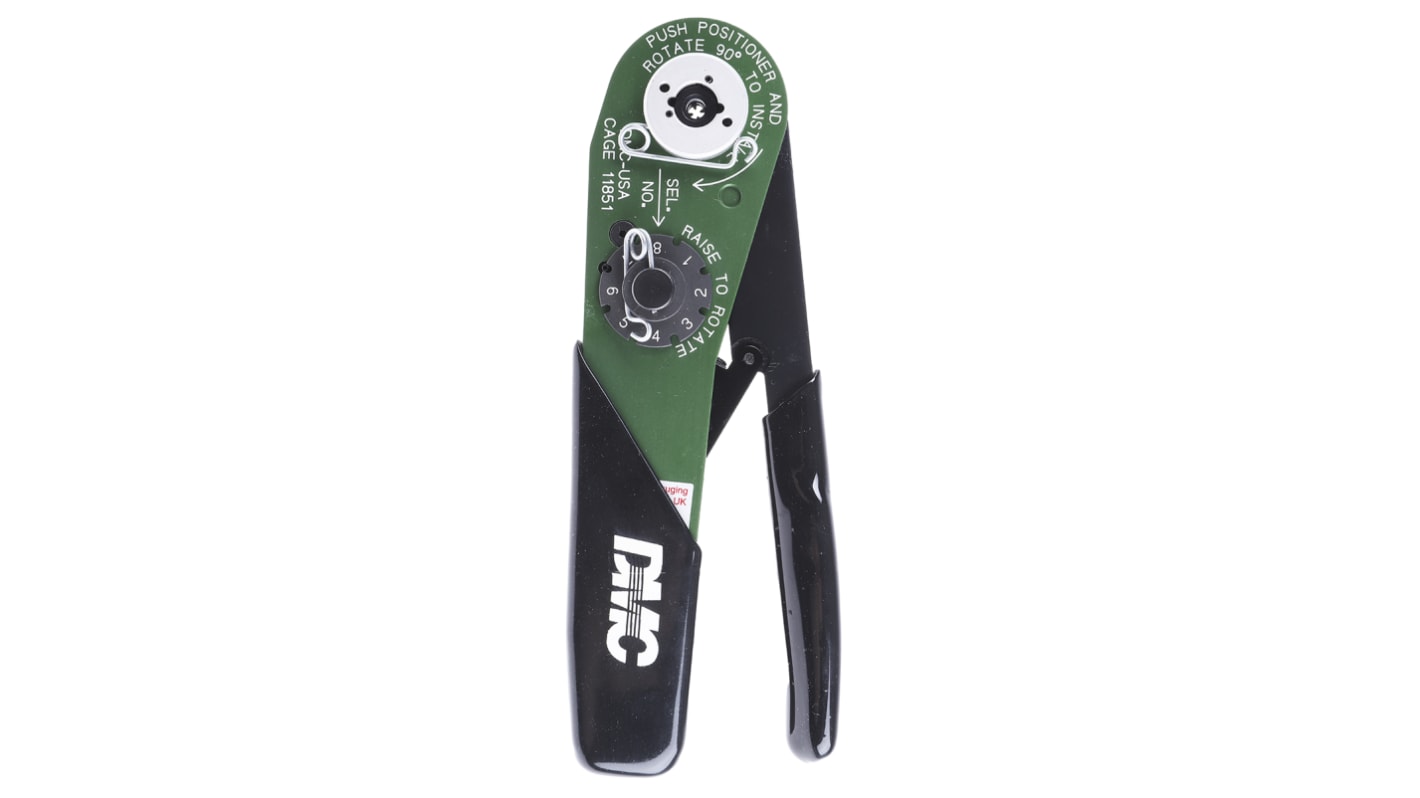

    Daniels Manufacturing M22520/7-01 Hand Ratcheting Crimping Tool Frame for Crimp Contact

    RS stock no.:
    314-8408
    Mfr. Part No.:
    MH860
    Manufacturer:
    Daniels Manufacturing
    Daniels Manufacturing
    View all Crimp Tools
    14 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
    Add to Basket
    units

    Not Available for premium delivery

    Added

    Price (Excl VAT) Each

    R 14,489.88

    (exc. VAT)

    R 16,663.36

    (inc. VAT)

    unitsPer unit
    1 - 4R 14,489.88
    5 +R 14,127.63
    RS stock no.:
    314-8408
    Mfr. Part No.:
    MH860
    Manufacturer:
    Daniels Manufacturing

    Not Applicable

    COO (Country of Origin):
    US

    Technical data sheets


    Legislation and Compliance

    Not Applicable

    COO (Country of Origin):
    US

    Product Details

    Crimp Tools



    Quick Connect Series


    A range of hard wearing RoHS compliant, IP68 sealed electrical connectors. The thumb latch mechanism and chunky keyway allows for easy connection and disconnection. Back fittings enable either half to be panel mounted or sealed to a cable. A flange can be added for bulkhead mounting. Loose contacts can be soldered or crimped. The plug half is provided with a cap to protect the contacts when the mated pairs are uncoupled.


    Constructed from Ultem® impact, temperature and corrosion resistant composite material, ideal for use with over-moulding and heat shrink tube
    Positive thumb latch receptacle has pin contacts and the plug socket contacts
    2, 7 and 12 way scoop proof plan forms

    Specification

    AttributeValue
    SeriesM22520/7-01
    Crimp Connector TypeCrimp Contact
    Crimp Tool TypeCrimping Tool Frame
    OperationHand
    RatchetingYes
    Overall Length190.5 mm
