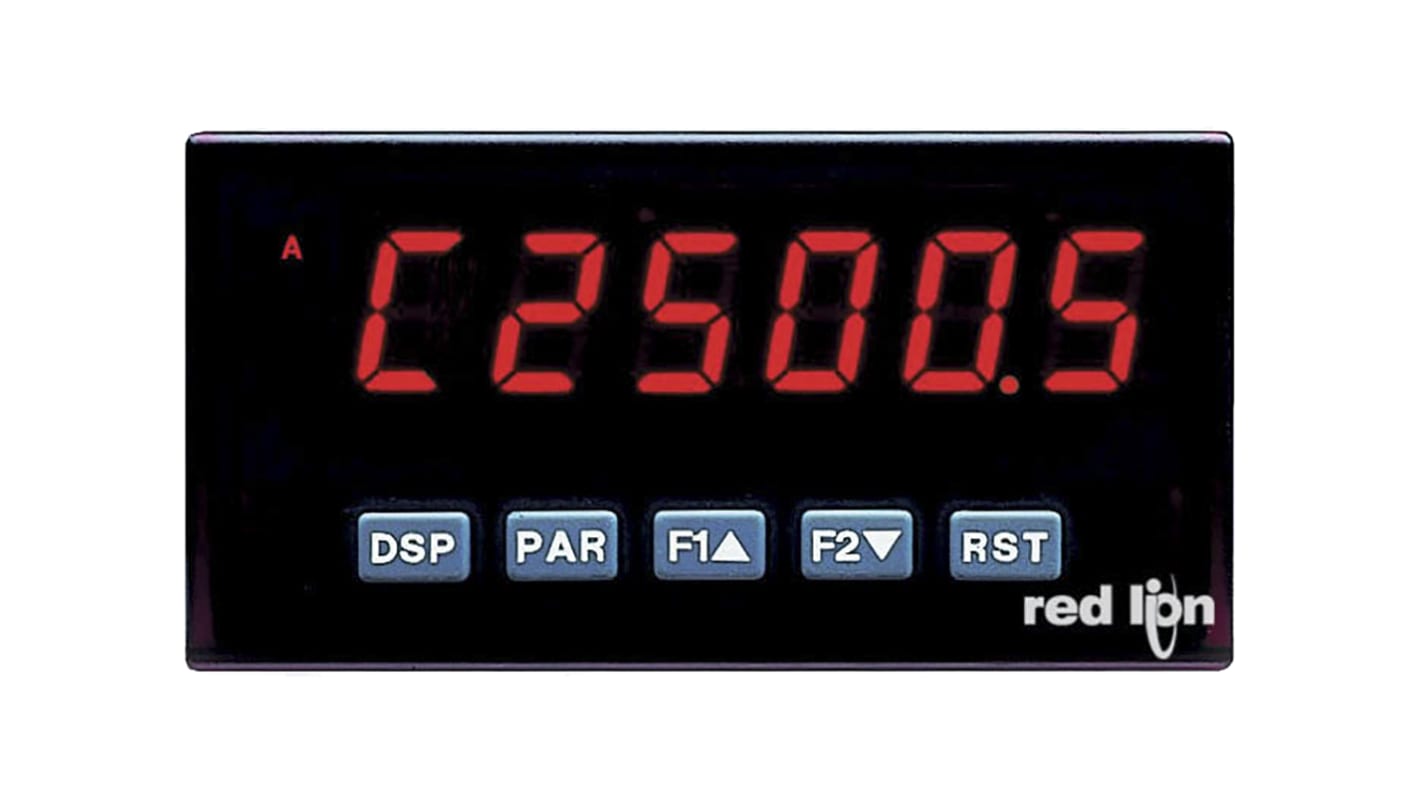

Red Lion PAX Timer, Display Unit, 6 Digit LED, 50 Hz 250V ac
- RS stock no.:
- 905-5709
- Mfr. Part No.:
- PAXTM000
- Manufacturer:
- Red Lion
Bulk discount available
Subtotal (1 unit)*
R 5 803,32
(exc. VAT)
R 6 673,82
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 1 unit(s) ready to ship from another location
- Plus 1 unit(s) shipping from 07 May 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 5,803.32 |
| 5 - 9 | R 5,658.24 |
| 10 + | R 5,488.49 |
*price indicative
- RS stock no.:
- 905-5709
- Mfr. Part No.:
- PAXTM000
- Manufacturer:
- Red Lion
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Red Lion | |
| Product Type | Display Unit | |
| Display Type | LED | |
| Function | Timer | |
| Connection Type | Cage Clamp | |
| Reset Method | Manual | |
| Number of Digits | 6 | |
| Mount Type | Panel Mount | |
| Maximum Supply Voltage | 250V ac | |
| Count Direction | Up | |
| Minimum Operating Temperature | 0°C | |
| Digit Height | 14.2mm | |
| Maximum Operating Temperature | 50°C | |
| Weight | 286g | |
| Depth | 104.1mm | |
| Maximum Count Frequency | 50Hz | |
| Standards/Approvals | CSA, UL Listed, UL Recognized | |
| Cutout Width | 92mm | |
| Cutout Height | 45mm | |
| Meter Accuracy | ±0.01 % | |
| Maximum Measurement | 999999 | |
| Series | PAX | |
| Meter Type | Electronic | |
| Select all | ||
|---|---|---|
Brand Red Lion | ||
Product Type Display Unit | ||
Display Type LED | ||
Function Timer | ||
Connection Type Cage Clamp | ||
Reset Method Manual | ||
Number of Digits 6 | ||
Mount Type Panel Mount | ||
Maximum Supply Voltage 250V ac | ||
Count Direction Up | ||
Minimum Operating Temperature 0°C | ||
Digit Height 14.2mm | ||
Maximum Operating Temperature 50°C | ||
Weight 286g | ||
Depth 104.1mm | ||
Maximum Count Frequency 50Hz | ||
Standards/Approvals CSA, UL Listed, UL Recognized | ||
Cutout Width 92mm | ||
Cutout Height 45mm | ||
Meter Accuracy ±0.01 % | ||
Maximum Measurement 999999 | ||
Series PAX | ||
Meter Type Electronic | ||
- COO (Country of Origin):
- US
PAXTM Preset Timer
The PAXTM is a preset Timer that can also function as an elapsed time indicator. It offers many features and performance capabilities to suit a wide range of industrial applications. By using two seperate signal inputs and 23 selectable timer ranges, these timers can be programmed to meet mostly any timing application.
6-digit (14.2 mm) LED, red sunlight readable display
Cycle counting capability
Programmable function keys/user inputs
Four setpoint alarm outputs (with plug-in card)
Communications and bus capabilites (with plug-in card)
Bus capabilites: Devicenet, ModBus, Profibus-DP
85-250VAC supply voltage
NEMA 4X/IP65 sealed front bezel
