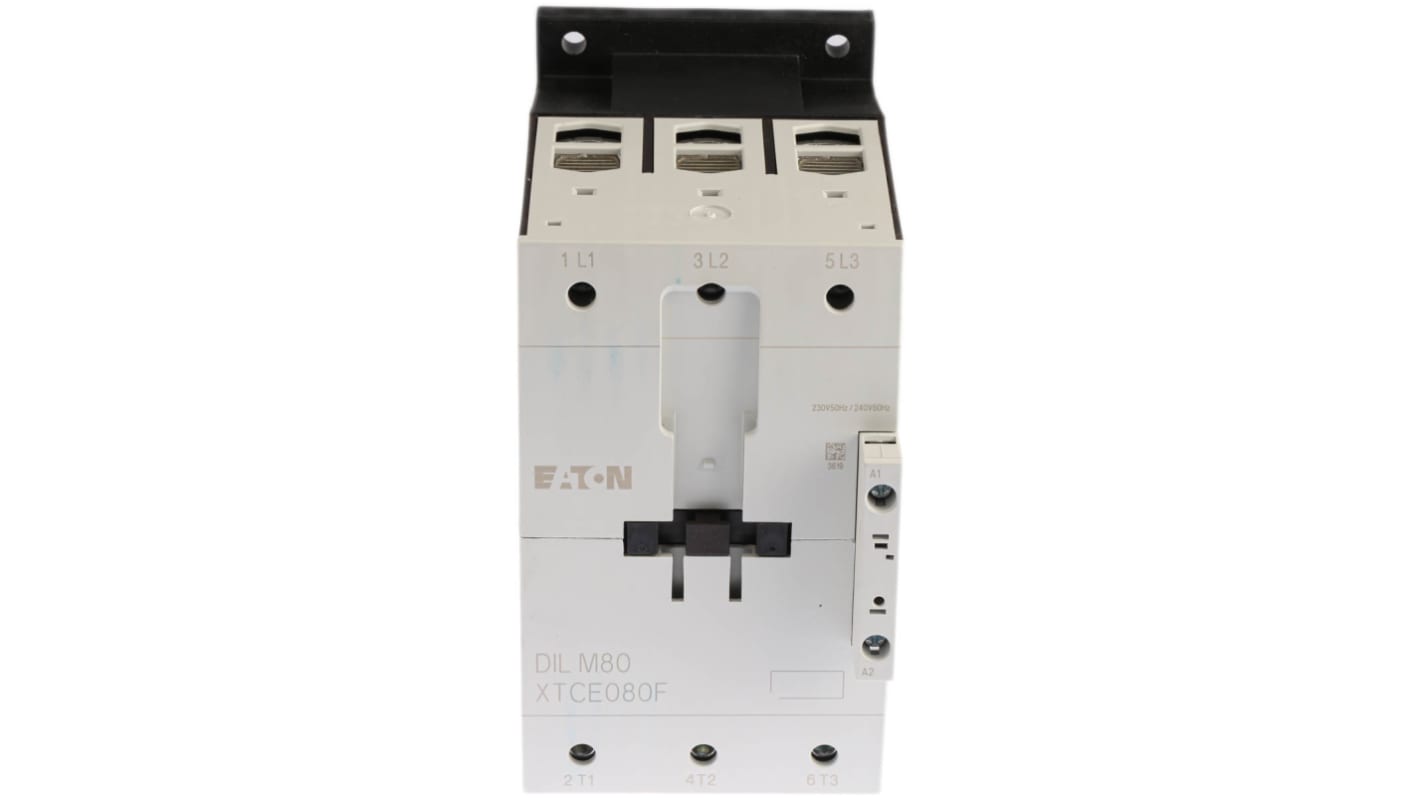

Eaton DILM Contactor, 230V ac Coil, 3-Pole, 80 A, 37 kW 230V ac, 3 NO, 400V ac

RS stock no.:: 632-4964
Mfr. Part No.:: 239402 DILM80(230V50HZ,240V60HZ)
Manufacturer:: Eaton

Eaton DILM Contactor, 230V ac Coil, 3-Pole, 80 A, 37 kW 230V ac, 3 NO, 400V ac

Subtotal (1 unit)*

R 8 415,79

(exc. VAT)

R 9 678,16

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

10 unit(s) ready to ship from another location
Plus 6 unit(s) shipping from 02 June 2026
Plus 6 unit(s) shipping from 09 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 8,415.79

*price indicative

RS stock no.:: 632-4964
Mfr. Part No.:: 239402 DILM80(230V50HZ,240V60HZ)
Manufacturer:: Eaton

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Contactor
	Coil Voltage	230V ac
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	80A
	Power Rating	37kW
	Series	DILM
	Function	Motor Control, Resistive Load
	Mount Type	Surface
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	0 NO/0 NC
	Terminal Type	Screw Clamp
	Operational Current Ie	80A
	Contactor Application	Motor Control, Resistive Load
	Minimum Operating Temperature	-25°C
	Control Circuit Voltage Uc	230V ac
	Maximum Operating Temperature	40°C
	Depth	175mm
	Standards/Approvals	CSA, IEC/EN 60947, UL, VDE 0660
	Length	170mm
	Width	111mm
	Pole and Throw Configuration	3

	Select all
	Brand Eaton
	Product Type Contactor
	Coil Voltage 230V ac
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 80A
	Power Rating 37kW
	Series DILM
	Function Motor Control, Resistive Load
	Mount Type Surface
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 0 NO/0 NC
	Terminal Type Screw Clamp
	Operational Current Ie 80A
	Contactor Application Motor Control, Resistive Load
	Minimum Operating Temperature -25°C
	Control Circuit Voltage Uc 230V ac
	Maximum Operating Temperature 40°C
	Depth 175mm
	Standards/Approvals CSA, IEC/EN 60947, UL, VDE 0660
	Length 170mm
	Width 111mm
	Pole and Throw Configuration 3

COO (Country of Origin):: RO

Eaton Contactor, Screw Terminal Type, 37kW Power Rating - DILM Series - 239402 DILM80(230V50HZ,240V60HZ)

Searching for a device that offers reliable power-jogging capabilities for your industrial operation? Pick up this contactor from Eaton. Its inbuilt coil is energised by 230V AC, making it ideal for applications such as industrial automation and process control. As it delivers reliable performance in a temperature range between -25°C and +40°C when enclosed, it's at home in challenging settings. You can put it to the test with fast-paced factory jobs, thanks to an operating frequency of up to 3,600 operations per hour.

Features & Benefits

• 3 poles provide versatile connection options for your circuitry

• Mechanical lifespan up to 10 million operations for long-term reliability

• 8kV impulse protection stops overvoltages from damaging equipment and disrupting your workflow

• Straightforward surface mounting doesn't need specialist tools, enabling fast setup

What type of motors are compatible with this contactor?

It's compatible with AC-1, NAC-3 and AC-4 motors. You can also use the contactor with appliances that have an efficiency class of IE3.

What size is this unit?

Compact dimensions of 175 (D) x 170 (L) x 111mm (W) make this a space-efficient choice that's easy to handle.

Note

Eaton formerly known as Moeller
