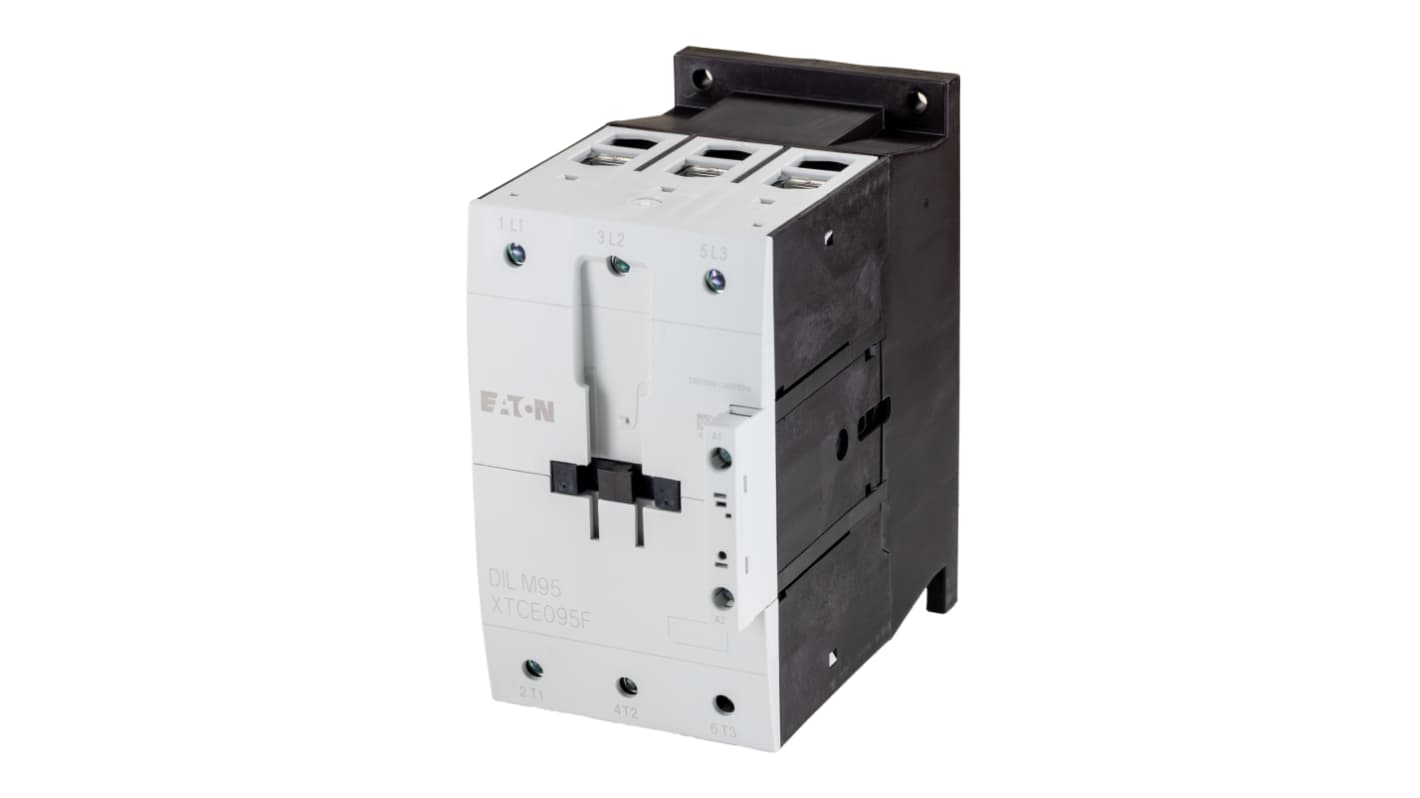

Eaton DILM Contactor, 230V ac Coil, 3-Pole, 95 A, 45 kW 230V ac, 3 NO, 400V ac

RS stock no.:: 632-4829
Mfr. Part No.:: 239480 DILM95(230V50HZ,240V60HZ)
Manufacturer:: Eaton

Eaton DILM Contactor, 230V ac Coil, 3-Pole, 95 A, 45 kW 230V ac, 3 NO, 400V ac

Subtotal (1 unit)*

R 11 167,10

(exc. VAT)

R 12 842,16

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

7 unit(s) ready to ship from another location
Plus 6 unit(s) shipping from 02 June 2026

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 11,167.10

*price indicative

RS stock no.:: 632-4829
Mfr. Part No.:: 239480 DILM95(230V50HZ,240V60HZ)
Manufacturer:: Eaton

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Eaton
	Product Type	Contactor
	Coil Voltage	230V ac
	Number of Poles	3
	Contact Voltage	400V ac
	Contact Current	95A
	Series	DILM
	Power Rating	45kW
	Mount Type	Surface
	Function	Motor Control, Resistive Load
	Normal State Configuration	3 NO
	Auxiliary Contact Configuration	0 NO/0 NC
	Terminal Type	Screw Clamp
	Contactor Application	Motor Control, Resistive Load
	Minimum Operating Temperature	-25°C
	Operational Current Ie	95A
	Control Circuit Voltage Uc	230V ac
	Maximum Operating Temperature	40°C
	Depth	117mm
	Width	111mm
	Standards/Approvals	CSA, IEC/EN 60947, UL, VDE 0660
	Length	170mm
	Pole and Throw Configuration	3

	Select all
	Brand Eaton
	Product Type Contactor
	Coil Voltage 230V ac
	Number of Poles 3
	Contact Voltage 400V ac
	Contact Current 95A
	Series DILM
	Power Rating 45kW
	Mount Type Surface
	Function Motor Control, Resistive Load
	Normal State Configuration 3 NO
	Auxiliary Contact Configuration 0 NO/0 NC
	Terminal Type Screw Clamp
	Contactor Application Motor Control, Resistive Load
	Minimum Operating Temperature -25°C
	Operational Current Ie 95A
	Control Circuit Voltage Uc 230V ac
	Maximum Operating Temperature 40°C
	Depth 117mm
	Width 111mm
	Standards/Approvals CSA, IEC/EN 60947, UL, VDE 0660
	Length 170mm
	Pole and Throw Configuration 3

Eaton Contactor, 8000V AC Rated Impulse Withstand Voltage, 60Hz Maximum Frequency - DILM Series - 239480 DILM95(230V50HZ,240V60HZ)

Ramp up your switching capacity by adding this 3NO contactor from Eaton to your setup. It's ideal for AC-4 jogging and starting three-phase motors commonly found in manufacturing and industrial applications. As it manages up to 3600 operations per hour, it's a solid choice for powering heavy-duty equipment up or down. The contactor delivers a mechanical lifespan of 10 million operations, so you can rest assured it will deliver top-tier performance in the long term.

Features & Benefits

• Screw terminals for straightforward and fast installation with just a screwdriver

• Withstands challenging temperatures between -25°C and +60°C, making it ideal for use in demanding applications

• Slimline dimensions of 90 (W) x 160 (L) x 170 (H) to fit snugly in cabinets where space is at a premium

Is this contactor compatible with IE3 motors?

Yes, this contactor is compatible with IE3-class motors, so it's a widely compatible and energy-efficient option.

Can I add an auxiliary contactor to this unit?

You can. If you need a power boost, just add a DILM150-XHI(V) auxiliary unit (513-0263) to your setup.

Note

Eaton formerly known as Moeller
