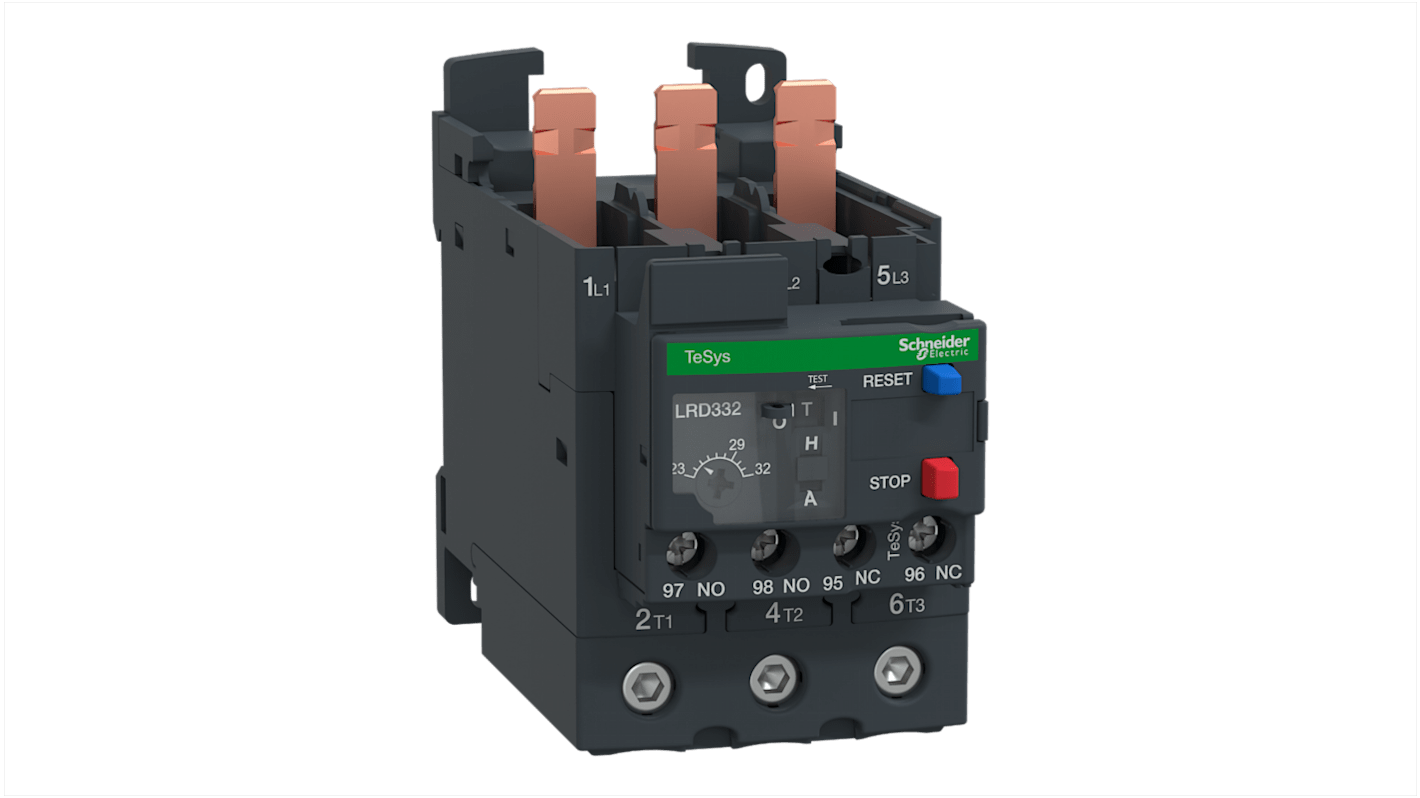

Schneider Electric, LRD Thermal Overload Relay 1 NO/1 NC, 23A, 32 A F.L.C, 32A Contact Rating, 22 kW 3
- RS stock no.:
- 727-6201
- Mfr. Part No.:
- LRD332
- Manufacturer:
- Schneider Electric
Bulk discount available
View bulk pricing optionsSubtotal (1 unit)*
R 1 757,00
(exc. VAT)
R 2 020,55
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stocked by manufacturer
- Ready to ship from 21 September 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 1,757.00 |
| 5 - 9 | R 1,713.08 |
| 10 + | R 1,661.68 |
*price indicative
- RS stock no.:
- 727-6201
- Mfr. Part No.:
- LRD332
- Manufacturer:
- Schneider Electric
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Schneider Electric | |
| Product Type | Thermal Overload Relay | |
| FLC Motor Rating | 23, 32A | |
| Relay Contact Current | 32A | |
| Series | LRD | |
| Mount Type | DIN Rail | |
| Power Rating | 22kW | |
| Pole and Throw Configuration | 3 | |
| Terminal Type | Screw Clamp | |
| Normal State Configuration | 1 NO/1 NC | |
| Reset Method | Push Button | |
| IP Rating | IP20 | |
| Minimum Operating Temperature | -20°C | |
| Adjustable Current Range | 23 → 32 A | |
| Width | 55mm | |
| Number of Auxiliary Contacts | 2 | |
| Maximum Operating Temperature | 60°C | |
| Length | 123mm | |
| Contact Voltage | 1kV ac | |
| Standards/Approvals | EN/IEC 60947-5-1, EN/IEC 60947-4-1, EN 50495, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, GB/T 14048.4 | |
| Depth | 123mm | |
| Supply Voltage | 690V | |
| Select all | ||
|---|---|---|
Brand Schneider Electric | ||
Product Type Thermal Overload Relay | ||
FLC Motor Rating 23, 32A | ||
Relay Contact Current 32A | ||
Series LRD | ||
Mount Type DIN Rail | ||
Power Rating 22kW | ||
Pole and Throw Configuration 3 | ||
Terminal Type Screw Clamp | ||
Normal State Configuration 1 NO/1 NC | ||
Reset Method Push Button | ||
IP Rating IP20 | ||
Minimum Operating Temperature -20°C | ||
Adjustable Current Range 23 → 32 A | ||
Width 55mm | ||
Number of Auxiliary Contacts 2 | ||
Maximum Operating Temperature 60°C | ||
Length 123mm | ||
Contact Voltage 1kV ac | ||
Standards/Approvals EN/IEC 60947-5-1, EN/IEC 60947-4-1, EN 50495, CSA C22.2 No 60947-4-1, UL 60947-5-1, UL 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.5, GB/T 14048.4 | ||
Depth 123mm | ||
Supply Voltage 690V | ||
Exempt
- COO (Country of Origin):
- FR
Schneider Electric LRD Series Thermal Overload Relay, 23 to 32 A Motor Protection, 1NO + 1NC Configuration - LRD332
This thermal overload relay offers dependable motor protection, tailored for industrial applications. Designed to be mounted on DIN rails, it has dimensions of 123mm in height, 55mm in width, and 123mm in depth. It accommodates a current rating of 32A and operates effectively within a temperature range of -20°C to +60°C, ensuring versatility and reliability.
Features & Benefits
• Designed for motor protection with a current range of 23 to 32A
• Incorporates 1 normally open and 1 normally closed contact configuration
• Utilises EverLink screw terminals for secure connections
• Offers temperature compensation for consistent performance
• Robust design withstands shocks up to 15 Gn
• Rated for AC and DC networks up to 690V
Applications
• Ideal for use with various contactors like LC1D40A and LC1D65A
• Suitable for industrial environments requiring motor protection
• Effective in where thermal overload protection is vital
• Can be integrated into systems needing reliable motor control
What are the connection options available for this relay?
It features screw clamp terminals for the control circuit, supporting both flexible and solid conductors ranging from 1 to 2.5mm². For power circuits, it uses EverLink BTR screw connectors for cables between 1 to 35mm².
How does the relay handle phase failure sensitivity?
The relay is designed to trip at 130% of the rated current when two phases fail, ensuring prompt disconnection to protect the motor from damage.
What is the significance of the thermal overload class for this product?
Conforming to Class 10A as per IEC 60947-4-1 standards, it provides tailored thermal protection, optimising performance for various motor types and reducing the risk of overheating.
Can the relay accommodate various mounting configurations?
Yes, it can be mounted on a plate or directly onto a DIN rail, offering flexibility in installation according to specific requirements.
What conditions should be considered for optimal operation?
The ambient temperature for operation should be maintained between -20°C and +60°C, ensuring the relay functions effectively without derating.
Standards
EN/IEC 60947-4-1, EN/IEC 60947-5-1, UL 60947-4-1, UL 60947-5-1, CSA C22.2 No 60947-4-1, CSA C22.2 No 60947-5-1, GB/T 14048.4, GB/T 14048.5, EN 50495.
