Belden MRG1740 Series Coaxial Cable, 500m, RG174/U Coaxial, Unterminated
- RS stock no.:
- 521-8341
- Mfr. Part No.:
- MRG1740.00500
- Manufacturer:
- Belden
41 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Not Available for premium delivery
Added
Price (Excl VAT) 1 Reel of 500 Metre(s)
R 19 062,84
(exc. VAT)
R 21 922,27
(inc. VAT)
| Reel(s) | Per Reel | Per Metre* |
| 1 - 5 | R 19 062,84 | R 38,126 |
| 6 + | R 18 586,27 | R 37,173 |
| *price indicative | ||
- RS stock no.:
- 521-8341
- Mfr. Part No.:
- MRG1740.00500
- Manufacturer:
- Belden
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- NL
Product Details

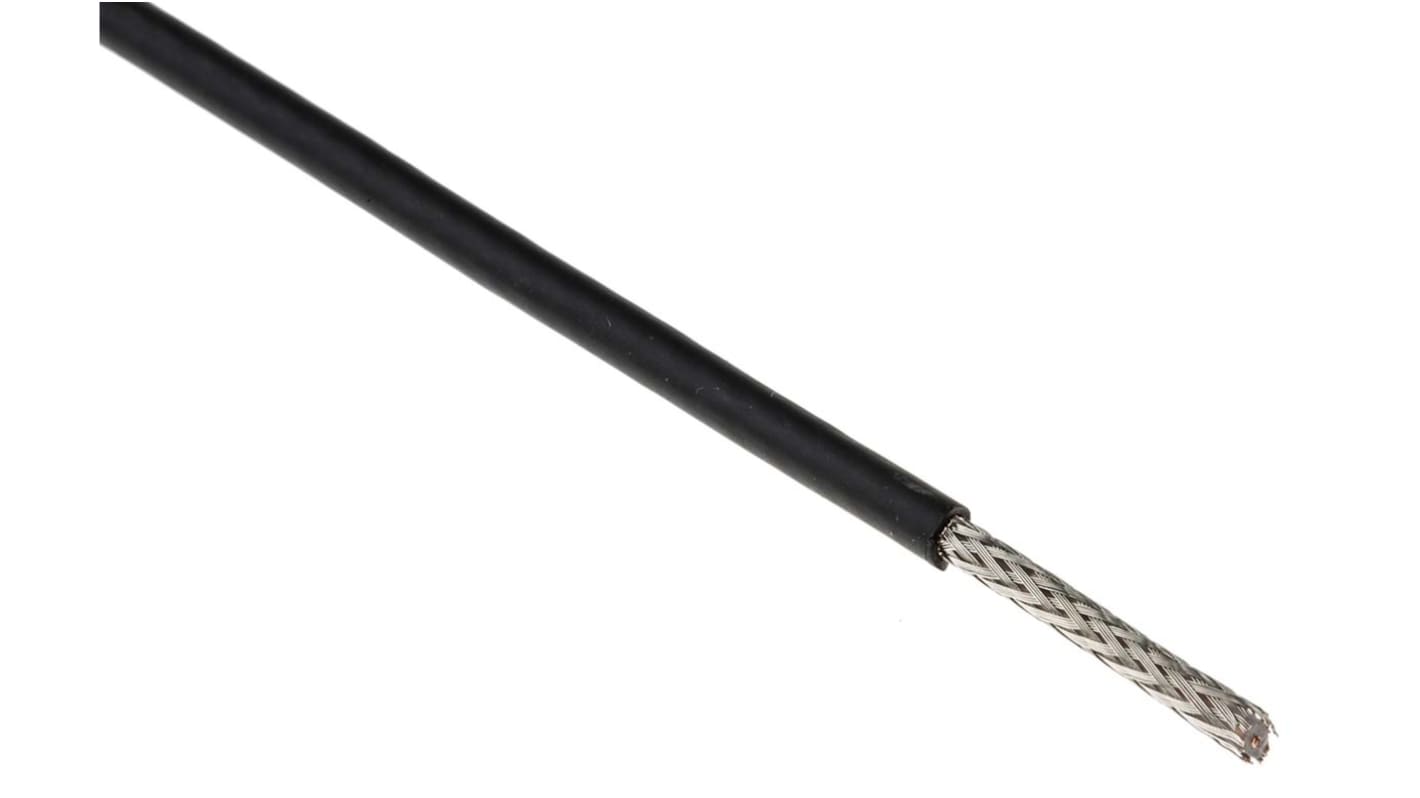

Belden Coaxial Cable, 26AWG - MRG1740 Series
Use this coaxial cable from Belden to safely transfer signals from one electrical device to another. It’s supplied in a long length making it ideal for long-distance transfers. The black PVC sheath is flexible for ease of installation and protects the wires against chemicals, heat and wear for reliable performance. Its tinned-copper braid shielding and PE (polyethylene) insulation also ensure a clear signal with minimal interference. As the cable is unterminated, you can easily customise it according to the specifications of your system, making it a versatile choice.
Features & Benefits
• Wide operating temperature range of -40°C to +70°C for use in harsh environments
• Low attenuation of 11dB (decibels) to ensure a strong signal
• Capacitance of 101pF/m (picofarads per metre) allows a high level of stored electrical charge
• Compact outer diameter of 2.8mm makes it suitable for installation in tight circuits
• Low attenuation of 11dB (decibels) to ensure a strong signal
• Capacitance of 101pF/m (picofarads per metre) allows a high level of stored electrical charge
• Compact outer diameter of 2.8mm makes it suitable for installation in tight circuits
Applications
• Television and aerial connections
• Live broadcasting
• Commercial and residential satellites
• Live broadcasting
• Commercial and residential satellites
What type of coaxial cable is this?
This is an RG174-type cable, which is commonly used for cellular, GPS (global positioning system) and WLAN (wireless local area network) applications.
Specification
Attribute | Value |
|---|---|
| Terminated/Unterminated | Unterminated |
| Coaxial Type | RG174/U |
| Outer Diameter | 2.8mm |
| CPR Certification | Eca |
| Characteristic Impedance | 50 Ω |
| Attenuation | 11 dB/100m @ 10 MHz |
| Length | 500m |
| Sheath Colour | Black |
| Conductor Strand Type | Stranded |
| Voltage Rating | 1.4 kV dc |
| Number of Strands | 7 |
| Sheath Material | Polyvinyl Chloride PVC |
| Series | MRG1740 |
| Operating Temperature Range | -40 → +70 °C |
| Minimum Operating Temperature | -40°C |
| Velocity ratio | 66% |
| Insulation Material | PE |
| Core Strands | 7/0.16 |
| Standards Met | Euroclass Eca |
| Shielding | Tinned Copper Braid |
| Maximum Operating Temperature | +70°C |
| Size of Strands | 26 AWG |
| Conductor Material | Bare Copper Clad Steel |
| Capacitance | 101pF/m |
