Abracon AWSCR-8.00CELB-C10-T3 Ceramic Resonator, 8 MHz 10 pF, 3-Pin Tape & Reel 1 mm 1.3 mm, 3.2 mm
- RS stock no.:
- 188-6679
- Mfr. Part No.:
- AWSCR-8.00CELB-C10-T3
- Manufacturer:
- Abracon

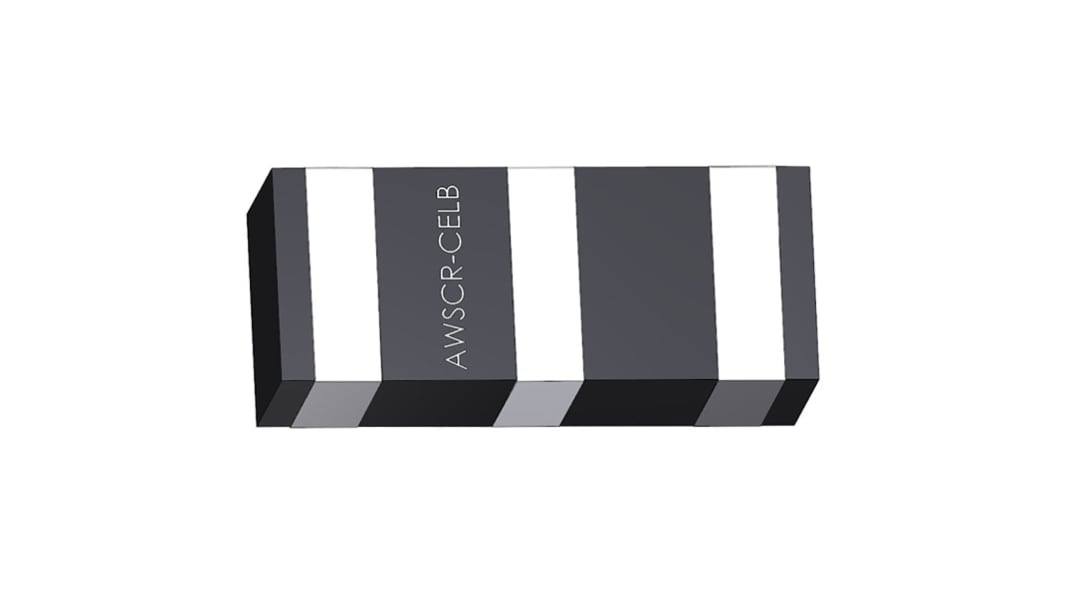

Image representative of range
Bulk discount available
Subtotal (1 pack of 20 units)*
R 116,22
(exc. VAT)
R 133,66
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 20 - 80 | R 5.811 | R 116.22 |
| 100 - 480 | R 5.666 | R 113.32 |
| 500 - 980 | R 5.496 | R 109.92 |
| 1000 - 1480 | R 5.276 | R 105.52 |
| 1500 + | R 5.065 | R 101.30 |
*price indicative
- RS stock no.:
- 188-6679
- Mfr. Part No.:
- AWSCR-8.00CELB-C10-T3
- Manufacturer:
- Abracon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Product Type | Ceramic Resonator | |
| Resonance Frequency | 8MHz | |
| Frequency Tolerance | ±0.5 % | |
| Load Capacitance | 10pF | |
| Packaging | Tape & Reel | |
| Resonance Resistance | 40Ω | |
| Frequency Ageing | ±0.1 % | |
| Frequency Stability | ±0.2 % | |
| Mount Type | Surface Mount | |
| Package Type | Tape & Reel | |
| Pin Count | 3 | |
| Minimum Operating Temperature | -40°C | |
| Termination Type | Solder | |
| Maximum Operating Temperature | 125°C | |
| Standards/Approvals | RoHS | |
| Width | 1.3 mm | |
| Length | 3.2mm | |
| Series | AWSCR-CELB | |
| Height | 1mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Abracon | ||
Product Type Ceramic Resonator | ||
Resonance Frequency 8MHz | ||
Frequency Tolerance ±0.5 % | ||
Load Capacitance 10pF | ||
Packaging Tape & Reel | ||
Resonance Resistance 40Ω | ||
Frequency Ageing ±0.1 % | ||
Frequency Stability ±0.2 % | ||
Mount Type Surface Mount | ||
Package Type Tape & Reel | ||
Pin Count 3 | ||
Minimum Operating Temperature -40°C | ||
Termination Type Solder | ||
Maximum Operating Temperature 125°C | ||
Standards/Approvals RoHS | ||
Width 1.3 mm | ||
Length 3.2mm | ||
Series AWSCR-CELB | ||
Height 1mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- CN
Industry standard footprint
Low resonance impedance
Built-in capacitance options
Wide operating temperatures in extended industry range
Applications
Metering systems
Remote control
Microprocessor
Industrial control
Electric appliances
