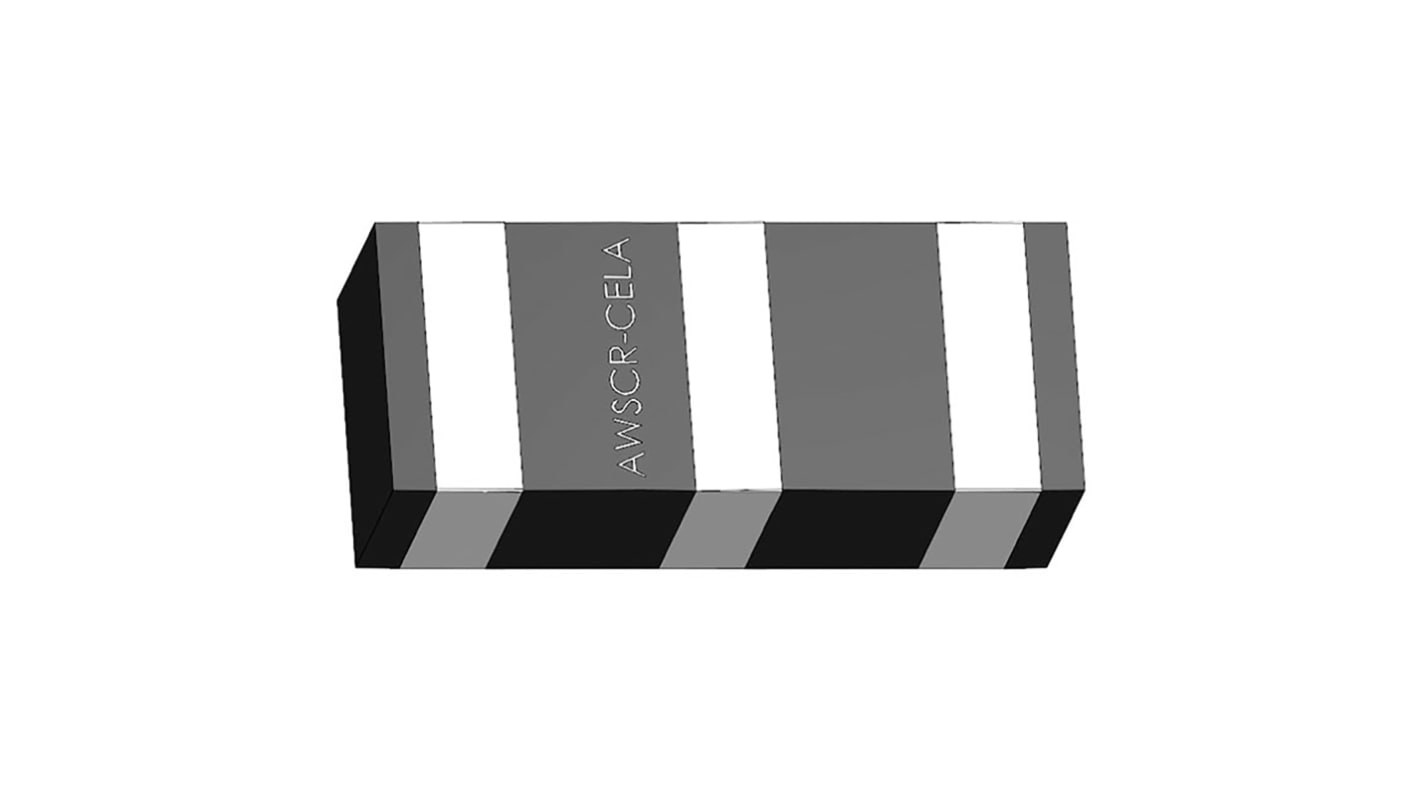

AWSCR-12.00CELA-C33-T3, Ceramic Resonator, 12MHz 33pF, 3-Pin, 3.2 x 1.3 x 1mm
- RS stock no.:
- 188-6484
- Mfr. Part No.:
- AWSCR-12.00CELA-C33-T3
- Manufacturer:
- Abracon
Subtotal (1 reel of 3000 units)*
R 11 811 00
(exc. VAT)
R 13 584 00
(inc. VAT)
FREE delivery for orders over R 1 500,00
Temporarily out of stock
- Shipping from 02 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Reel* |
|---|---|---|
| 3000 + | R 3,937 | R 11 811,00 |
*price indicative
- RS stock no.:
- 188-6484
- Mfr. Part No.:
- AWSCR-12.00CELA-C33-T3
- Manufacturer:
- Abracon
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Abracon | |
| Resonance Frequency | 12MHz | |
| Frequency Tolerance | ±0.5% | |
| Load Capacitance | 33pF | |
| Resonance Resistance | 40Ω | |
| Frequency Stability | ±0.2% | |
| Mounting Type | Surface Mount | |
| Pin Count | 3 | |
| Dimensions | 3.2 x 1.3 x 1mm | |
| Height | 1mm | |
| Length | 3.2mm | |
| Maximum Operating Temperature | 85°C | |
| Width | 1.3mm | |
| Minimum Operating Temperature | -40°C | |
Select all | ||
|---|---|---|
Brand Abracon | ||
Resonance Frequency 12MHz | ||
Frequency Tolerance ±0.5% | ||
Load Capacitance 33pF | ||
Resonance Resistance 40Ω | ||
Frequency Stability ±0.2% | ||
Mounting Type Surface Mount | ||
Pin Count 3 | ||
Dimensions 3.2 x 1.3 x 1mm | ||
Height 1mm | ||
Length 3.2mm | ||
Maximum Operating Temperature 85°C | ||
Width 1.3mm | ||
Minimum Operating Temperature -40°C | ||
