Stainless Steel Cable Gland Kit, M20 Thread, 4mm Min, 8.4mm Max, IP66, IP68

RS stock no.:: 458-4221
Mfr. Part No.:: A2LSFK1/16/M20
Manufacturer:: Peppers

Stainless Steel Cable Gland Kit, M20 Thread, 4mm Min, 8.4mm Max, IP66, IP68

View all Cable Glands

On back order for despatch 2024/05/09

Not Available for premium delivery

Added

View basket

Price (Excl VAT) 1 Kit

R 1 523,25

(exc. VAT)

R 1 751,74

(inc. VAT)

Kit(s)	Per Kit
1 - 4	R 1 523,25
5 - 9	R 1 485,17
10 - 14	R 1 440,61
15 - 19	R 1 382,99
20 +	R 1 327,67

RS stock no.:: 458-4221
Mfr. Part No.:: A2LSFK1/16/M20
Manufacturer:: Peppers

Technical data sheets

Legislation and Compliance

COO (Country of Origin):: GB

Product Details

IP68 Metric Stainless Steel A2LF Gland

The IP68 metric stainless steel gland provides a controlled pull resistant environmental displacement seal on cables outer sheaths. This minimises damage to cold flow characteristic cables. The glands maintain IP66 and IP68 up to 25 m. They are also deluge proof without using any additional seals or deluge boots.

Features and Benefits

• For use with PVC/PVC PILC/PVC XPLE/PVC Cables
• Stainless steel flameproof gland reference A2LF
• Intended for use with non-armoured cables
• Approval certificate available on request

Certificate No.

SIRA 01 ATEX 1272X

Group and Category

II 2 G D
EEx d IIC/EEx e II

Supplied with

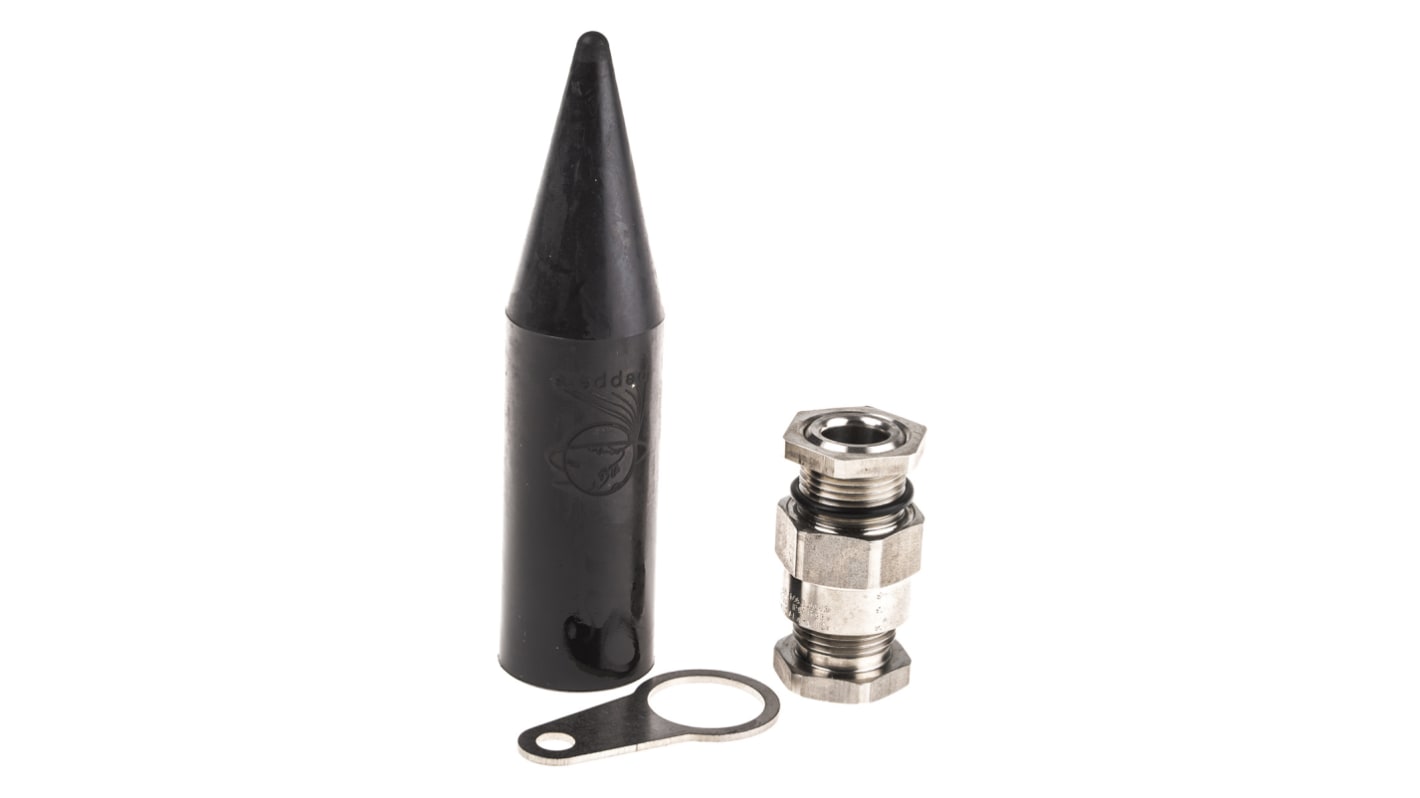

Locknut, earth tag, integral O ring seal and black PCP shroud.

Specification

Attribute	Value
Thread Size	M20
Maximum Cable Diameter	8.4mm
Minimum Cable Diameter	4mm
Material	Stainless Steel
IP Rating	IP66, IP68
Locknut Included	Yes
Hazardous Area Certification	ATEX
Minimum Operating Temperature	-20°C
Maximum Operating Temperature	+85°C
Number of Cores	1
Operating Temperature Range	-20 → +85 °C
Kit Includes	Gland, Lock Nuts, Seal, Washer

RS stock no.:: 458-4221
Mfr. Part No.:: A2LSFK1/16/M20
Manufacturer:: Peppers
