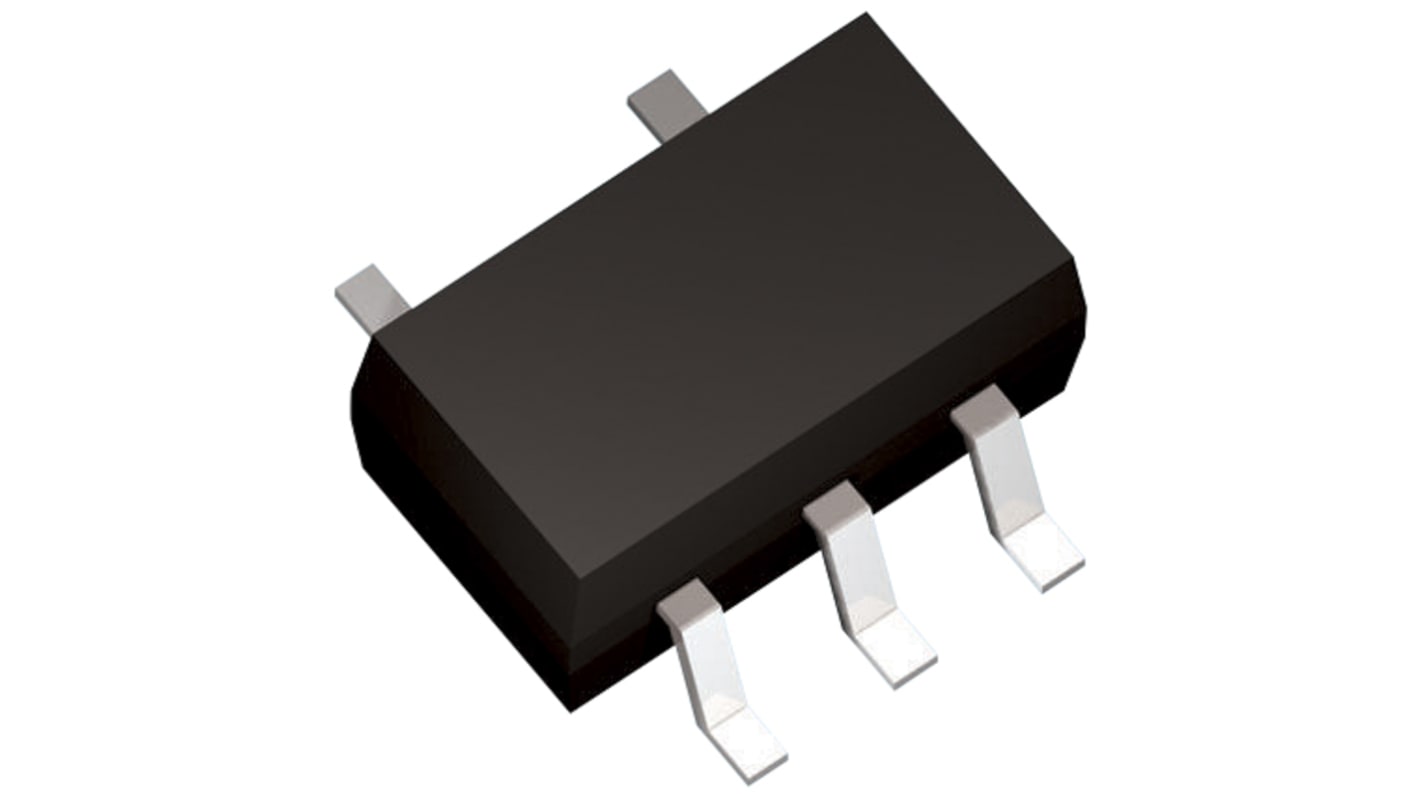

Toshiba TC7SH34F Non-Inverting CMOS Schmitt Buffer, 5-Pin SOT-25
- RS stock no.:
- 171-3177
- Mfr. Part No.:
- TC7SH34F
- Manufacturer:
- Toshiba
Bulk discount available
Subtotal (1 pack of 50 units)*
R 73,90
(exc. VAT)
R 85,00
(inc. VAT)
Stock information currently inaccessible - Please check back later
Units | Per unit | Per Pack* |
|---|---|---|
| 50 - 200 | R 1.478 | R 73.90 |
| 250 - 450 | R 1.441 | R 72.05 |
| 500 - 2450 | R 1.398 | R 69.90 |
| 2500 - 7450 | R 1.342 | R 67.10 |
| 7500 + | R 1.288 | R 64.40 |
*price indicative
- RS stock no.:
- 171-3177
- Mfr. Part No.:
- TC7SH34F
- Manufacturer:
- Toshiba
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Toshiba | |
| Logic Function | Non-Inverting | |
| Number of Channels | 1 | |
| Input Type | CMOS | |
| Output Type | CMOS | |
| Polarity | Non-Inverting | |
| Mounting Type | Surface Mount | |
| Package Type | SOT-25 | |
| Pin Count | 5 | |
| Maximum High Level Output Current | -32mA | |
| Maximum Low Level Output Current | 8mA | |
| Maximum Propagation Delay Time @ Maximum CL | 13.5 ns @ 50 pF | |
| Dimensions | 2.9 x 1.6 x 1.05mm | |
| Maximum Operating Supply Voltage | 5.5 V | |
| Minimum Operating Temperature | -40 °C | |
| Width | 1.6mm | |
| Height | 1.05mm | |
| Propagation Delay Test Condition | 50pF | |
| Maximum Operating Temperature | +125 °C | |
| Minimum Operating Supply Voltage | 2 V | |
| Automotive Standard | AEC-Q100 | |
| Length | 2.9mm | |
| Select all | ||
|---|---|---|
Brand Toshiba | ||
Logic Function Non-Inverting | ||
Number of Channels 1 | ||
Input Type CMOS | ||
Output Type CMOS | ||
Polarity Non-Inverting | ||
Mounting Type Surface Mount | ||
Package Type SOT-25 | ||
Pin Count 5 | ||
Maximum High Level Output Current -32mA | ||
Maximum Low Level Output Current 8mA | ||
Maximum Propagation Delay Time @ Maximum CL 13.5 ns @ 50 pF | ||
Dimensions 2.9 x 1.6 x 1.05mm | ||
Maximum Operating Supply Voltage 5.5 V | ||
Minimum Operating Temperature -40 °C | ||
Width 1.6mm | ||
Height 1.05mm | ||
Propagation Delay Test Condition 50pF | ||
Maximum Operating Temperature +125 °C | ||
Minimum Operating Supply Voltage 2 V | ||
Automotive Standard AEC-Q100 | ||
Length 2.9mm | ||
Non-Inverting Buffer
Wide operating temperature range: Topr = -40 to 125 (Note 2)
High speed operation: tpd = 3.8 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 )
High noise immunity: VNIH = VNIL = 28 % VCC (min)
5.5 V tolerant inputs
Wide operating voltage range: VCC = 2.0 to 5.5 V
High speed operation: tpd = 3.8 ns (typ.) (VCC = 5.0 V, CL = 15 pF)
Low power dissipation: ICC = 2.0 μA (max) (Ta = 25 )
High noise immunity: VNIH = VNIL = 28 % VCC (min)
5.5 V tolerant inputs
Wide operating voltage range: VCC = 2.0 to 5.5 V
