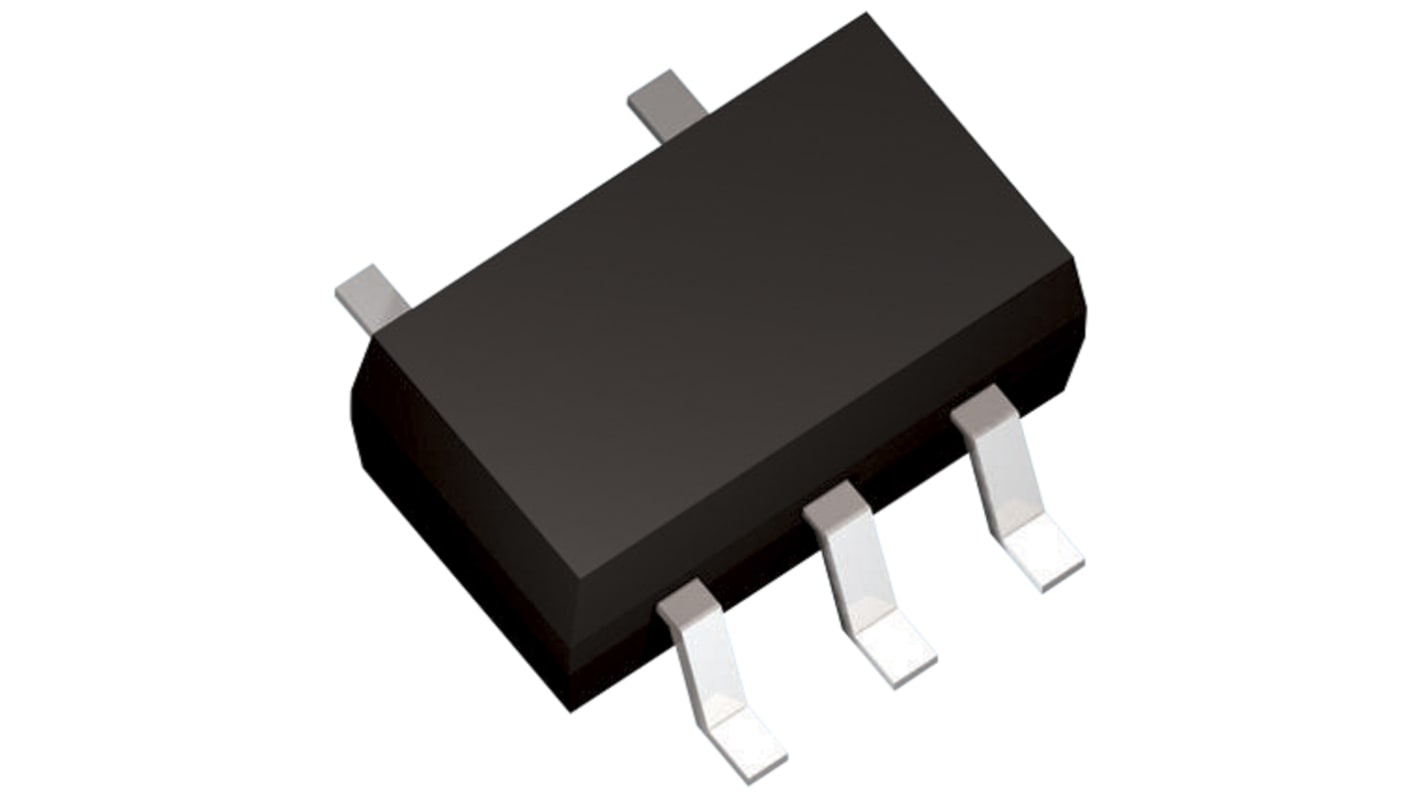

Toshiba TC7SH34F Non-Inverting CMOS Schmitt Buffer, 5-Pin SOT-25

RS stock no.:: 171-3015
Mfr. Part No.:: TC7SH34F
Manufacturer:: Toshiba

Toshiba TC7SH34F Non-Inverting CMOS Schmitt Buffer, 5-Pin SOT-25

Price (Excl VAT) Each (On a Reel of 3000)

R 0,989

(exc. VAT)

R 1,137

(inc. VAT)

999999 In stock in South Africa for delivery next working day in national main centres. (Delivery T&C's apply)*

* Delivery dates may change based on your chosen quantity and delivery address.

FREE delivery for orders over R 1500

Units	Per unit	Per Reel**
3000 +	R 0,989	R 2 967,00

**price indicative

RS stock no.:: 171-3015
Mfr. Part No.:: TC7SH34F
Manufacturer:: Toshiba

Datasheet
ESD Control Selection Guide V1

Attribute	Value
Logic Function	Non-Inverting
Number of Channels	1
Input Type	CMOS
Output Type	CMOS
Polarity	Non-Inverting
Mounting Type	Surface Mount
Package Type	SOT-25
Pin Count	5
Maximum High Level Output Current	-32mA
Maximum Low Level Output Current	8mA
Maximum Propagation Delay Time @ Maximum CL	13.5 ns @ 50 pF
Dimensions	2.9 x 1.6 x 1.05mm
Maximum Operating Supply Voltage	5.5 V
Maximum Operating Temperature	+125 °C
Propagation Delay Test Condition	50pF
Automotive Standard	AEC-Q100
Minimum Operating Supply Voltage	2 V
Length	2.9mm
Minimum Operating Temperature	-40 °C
Height	1.05mm
Width	1.6mm

Toshiba TC7SH34F Non-Inverting CMOS Schmitt Buffer, 5-Pin SOT-25
