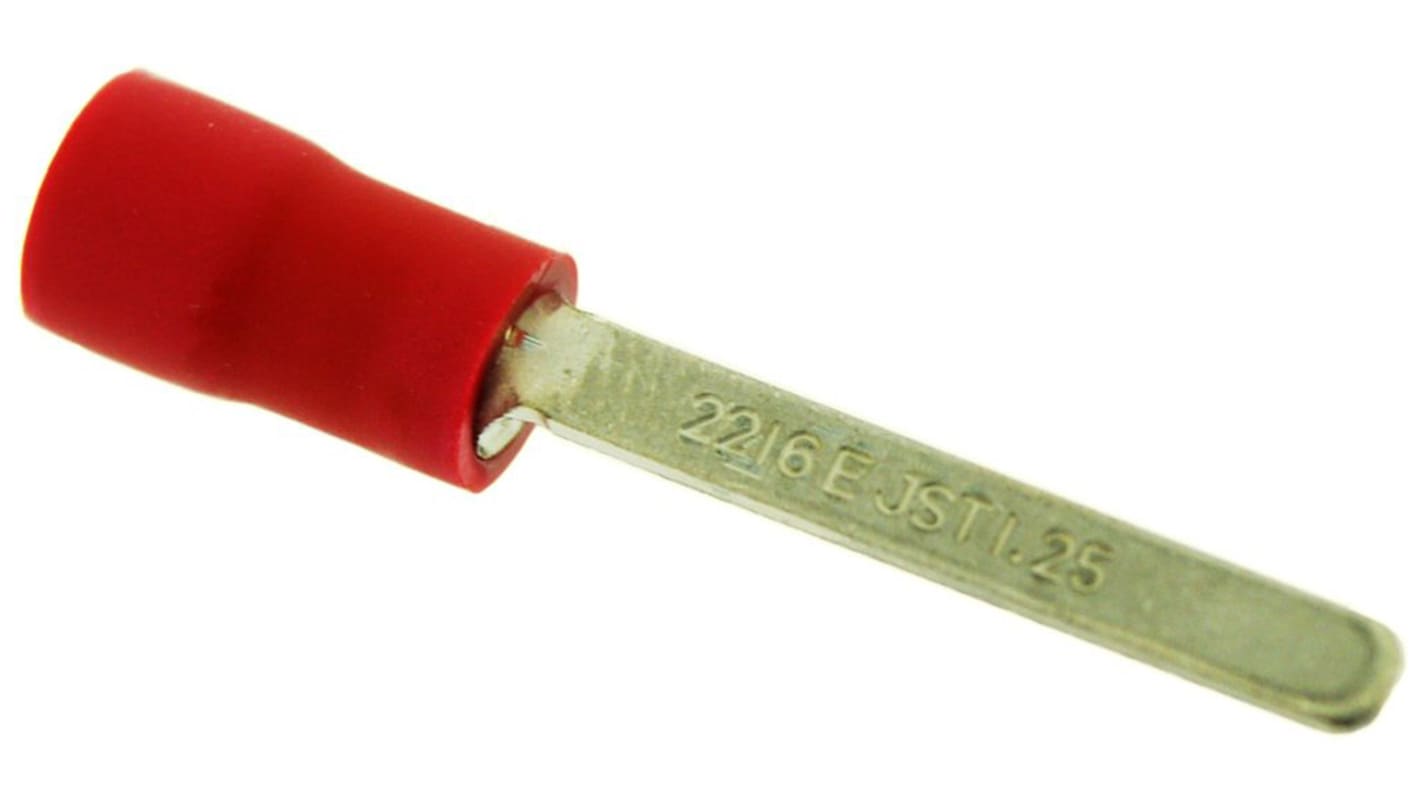

JST Insulated Crimp Blade Terminal 18mm Blade Length, 0.25mm² to 1.65mm², 22AWG to 16AWG, Red

AF type insulated crimp blade terminals with high resistance to heat, cold, oil, fire and excellent insulating performance. The vinyl insulation offers both insulation properties and flame resistance. The flared entry design allows wire to be quickly and easily inserted into the terminal. These AF type insulated crimp blade terminals are made from oxygen free copper which has high electroconductivity. Oxygen free copper also has excellent electrical and mechanical characteristics which surpass those of other copper materials. The toughness of oxygen free copper means it can be safely brazed without hydrogen embrittlement allowing high strength brazed seams to be produced on the terminals.

Vinyl insulation with high insulation properties and flame resistance
High resistance to heat, cold and fire
Flared wire entry for quick and simple wire insertion
Oxygen free copper with high electroconductivity, electrical and mechanical characteristics
High strength brazed seams
Temperature rating of 75°

JST Insulated Crimp Terminals
