JST, FV Insulated Crimp Blade Terminal 18 mm Blade Length, 22 AWG to 16 AWG, Red
- RS stock no.:
- 688-1192
- Mfr. Part No.:
- FVWS1.25-AF2.3A(LF)
- Manufacturer:
- JST

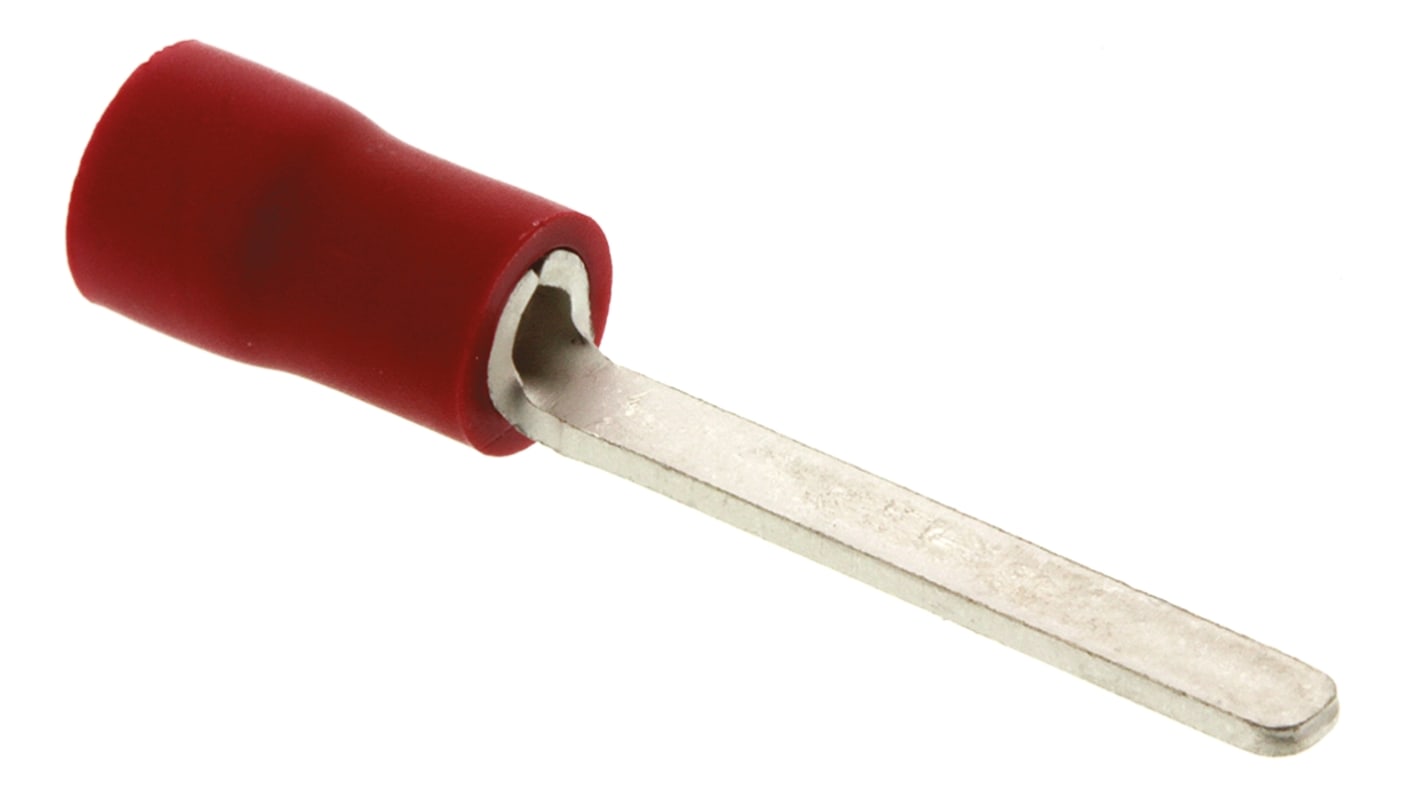

Image representative of range
Bulk discount available
Subtotal (1 pack of 100 units)*
R 447,70
(exc. VAT)
R 514,90
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 300 unit(s) shipping from 04 May 2026
- Plus 300 unit(s) shipping from 11 May 2026
- Plus 10,000 unit(s) shipping from 15 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 100 - 400 | R 4.477 | R 447.70 |
| 500 - 900 | R 4.365 | R 436.50 |
| 1000 - 2400 | R 4.234 | R 423.40 |
| 2500 - 4900 | R 4.065 | R 406.50 |
| 5000 + | R 3.902 | R 390.20 |
*price indicative
- RS stock no.:
- 688-1192
- Mfr. Part No.:
- FVWS1.25-AF2.3A(LF)
- Manufacturer:
- JST
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | JST | |
| Series | FV | |
| Product Type | Crimp Blade Terminal | |
| Insulation | Insulated | |
| Insulation Material | Vinyl | |
| Minimum Wire Size mm² | 0.25mm² | |
| Minimum Wire Size AWG | 22AWG | |
| Maximum Wire Size AWG | 16AWG | |
| Maximum Wire Size mm² | 1.65mm² | |
| Overall Length | 27.2mm | |
| Blade Length | 18mm | |
| Blade Width | 2.3mm | |
| Blade Thickness | 0.8mm | |
| Inside Diameter | 4mm | |
| Hooked | No | |
| Standards/Approvals | No | |
| Colour | Red | |
| Select all | ||
|---|---|---|
Brand JST | ||
Series FV | ||
Product Type Crimp Blade Terminal | ||
Insulation Insulated | ||
Insulation Material Vinyl | ||
Minimum Wire Size mm² 0.25mm² | ||
Minimum Wire Size AWG 22AWG | ||
Maximum Wire Size AWG 16AWG | ||
Maximum Wire Size mm² 1.65mm² | ||
Overall Length 27.2mm | ||
Blade Length 18mm | ||
Blade Width 2.3mm | ||
Blade Thickness 0.8mm | ||
Inside Diameter 4mm | ||
Hooked No | ||
Standards/Approvals No | ||
Colour Red | ||
JST Insulated Crimp Blade Terminals
A range of insulated crimp blade terminals suitable for a variety of wire size ranges.
Insulated crimp blade terminals with part number prefix 'FVWS' have a butted seam and flared vinyl insulation
Insulated crimp blade terminals with part number prefix 'FVDWS' have a butted seam, copper sleeve and vinyl insulation
