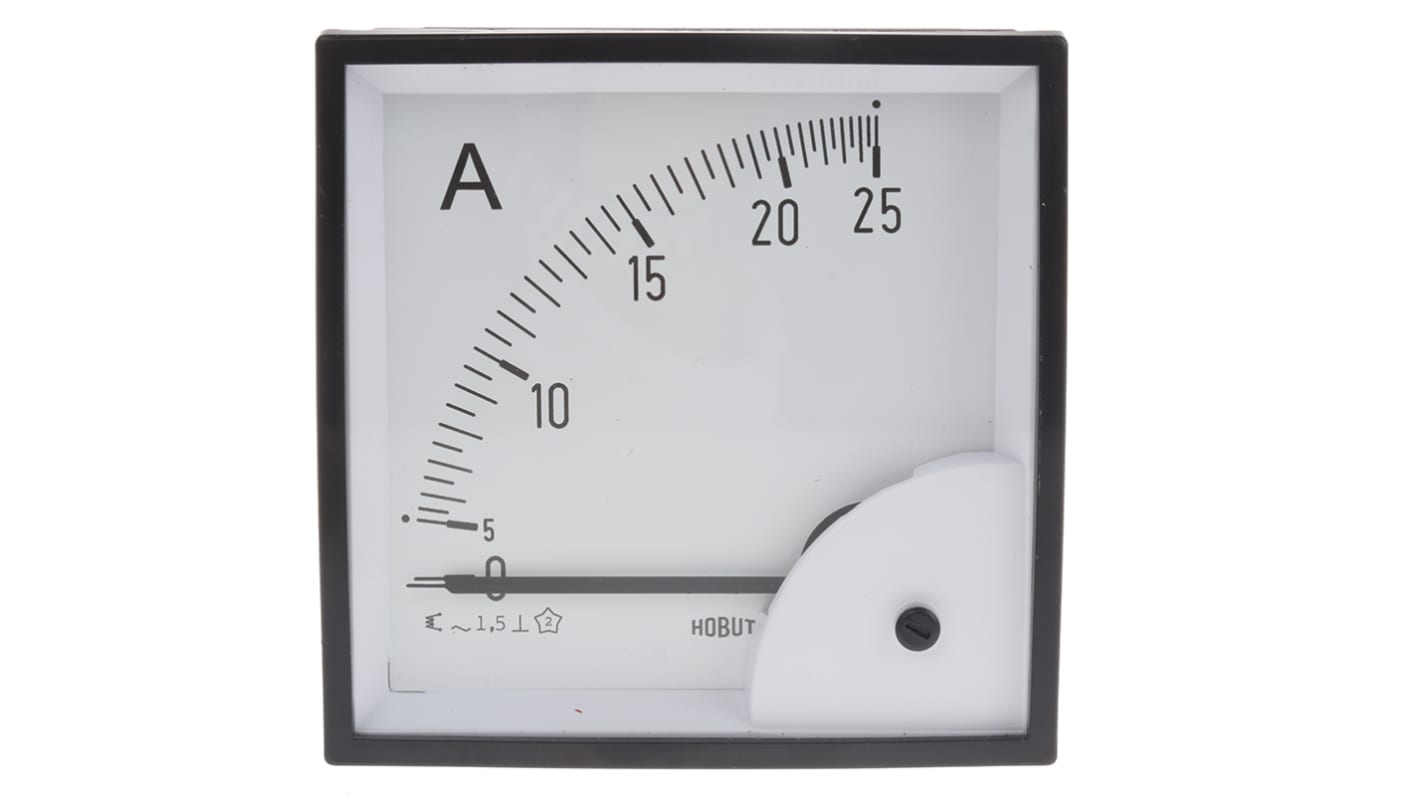

HOBUT D96SD Analogue Panel Ammeter 0/25A Direct Connected AC, 92mm x 92mm Moving Iron

View all Ammeters

Subtotal (1 unit)*

R 552,78

(exc. VAT)

R 635,70

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 13 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 552.78

*price indicative

RS stock no.:
312-886
Mfr. Part No.:
D96MIS25A/1-001
Manufacturer:
HOBUT
Find similar products by selecting one or more attributes.
Select all

Brand

HOBUT

Maximum Value

0/25A Direct Connected

Current Type

AC

Moving Element

Moving Iron

Cutout Height

92mm

Cutout Width

92mm

Depth

38.5mm

Meter Accuracy

Class 1.5

Minimum Temperature

-25°C

Maximum Temperature

+40°C

Measurement Range

0/25A Direct Connected

Series

D96SD

COO (Country of Origin):
GB

Standard DIN AC Moving Iron Meters


90° scale arc, accuracy class 1.5
Manufactured to BS89/IEC51
Frequency range 15 to 400Hz
Operating temperature range: –25 to +40°C
Flame retardant case to UL94V0
Panel cut out: 45 x 45mm, 68 x 68mm, 92 x 92mm
Terminal covers supplied separately (see accessories)

Direct reading voltmeters and ammeters for measuring resistive loads

Note

Ammeter scales illustrated, voltmeter scales are similar

Supplied with

mounting brackets.
