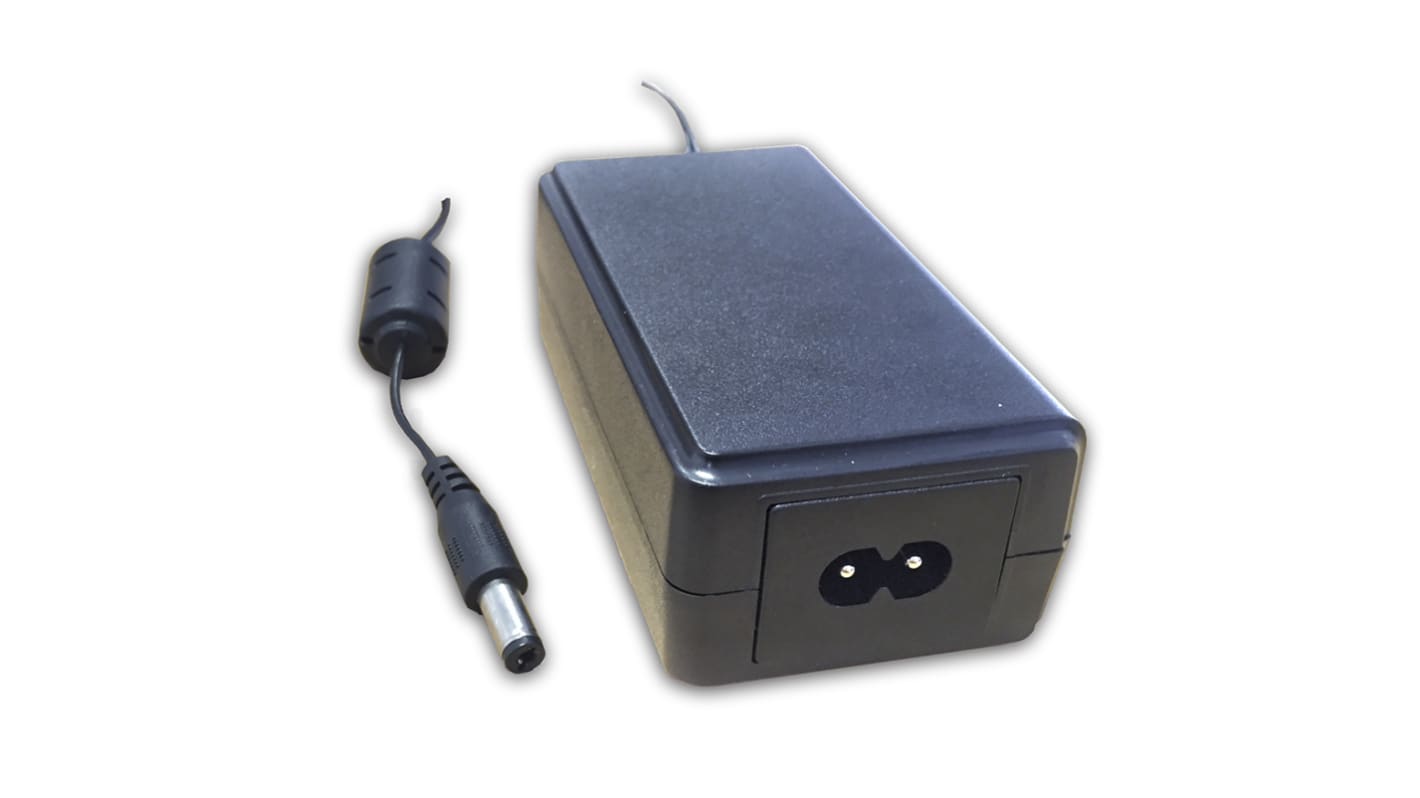

RS PRO 30 W Power Adapter AC/DC Adapter 2-Pin (IEC) 15V dc Output, 2 A
- RS stock no.:
- 175-2785
- Manufacturer:
- RS PRO
Subtotal (1 unit)*
R 445,22
(exc. VAT)
R 512,00
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 1 unit(s) ready to ship
- Plus 59 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 445.22 |
*price indicative
- RS stock no.:
- 175-2785
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Sub Type | Power Adapter | |
| Product Type | AC/DC Adapter | |
| Plug Type | 2-Pin (IEC) | |
| Output Voltage | 15V dc | |
| Output Connector Type | 2.1 x 5.5 mm Connector | |
| Power | 30W | |
| Cable Length | 6ft | |
| Number of Outputs | 1 | |
| Minimum Operating Temperature | 0°C | |
| Input Connector Type | 2-Pin IEC (C8) | |
| Adapter Current | 2A | |
| Maximum Operating Temperature | 40°C | |
| Length | 99mm | |
| Depth | 36mm | |
| Standards/Approvals | CCC, CE, cULus, FCC, TUV, UL | |
| Width | 52mm | |
| Maximum Input Voltage | 240V ac | |
| Efficiency | 86.95% | |
| Load Regulation | ±5 % | |
| Series | 25HK-AB | |
| Energy Efficiency Level | VI | |
| Minimum Input Voltage | 80V ac | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Sub Type Power Adapter | ||
Product Type AC/DC Adapter | ||
Plug Type 2-Pin (IEC) | ||
Output Voltage 15V dc | ||
Output Connector Type 2.1 x 5.5 mm Connector | ||
Power 30W | ||
Cable Length 6ft | ||
Number of Outputs 1 | ||
Minimum Operating Temperature 0°C | ||
Input Connector Type 2-Pin IEC (C8) | ||
Adapter Current 2A | ||
Maximum Operating Temperature 40°C | ||
Length 99mm | ||
Depth 36mm | ||
Standards/Approvals CCC, CE, cULus, FCC, TUV, UL | ||
Width 52mm | ||
Maximum Input Voltage 240V ac | ||
Efficiency 86.95% | ||
Load Regulation ±5 % | ||
Series 25HK-AB | ||
Energy Efficiency Level VI | ||
Minimum Input Voltage 80V ac | ||
- COO (Country of Origin):
- CN
Range of Plugtop Power Supplies 5∼30V.
2 Pin Inlet Desktop Power Supply
Universal Input 90∼264V-AC 47∼63Hz
Efficiency >86.95%
Short Circuit Protected
Operating Temperature 0∼40°C
Limited Power Source (LPS)
Very Low Power Consumption <0.10W
