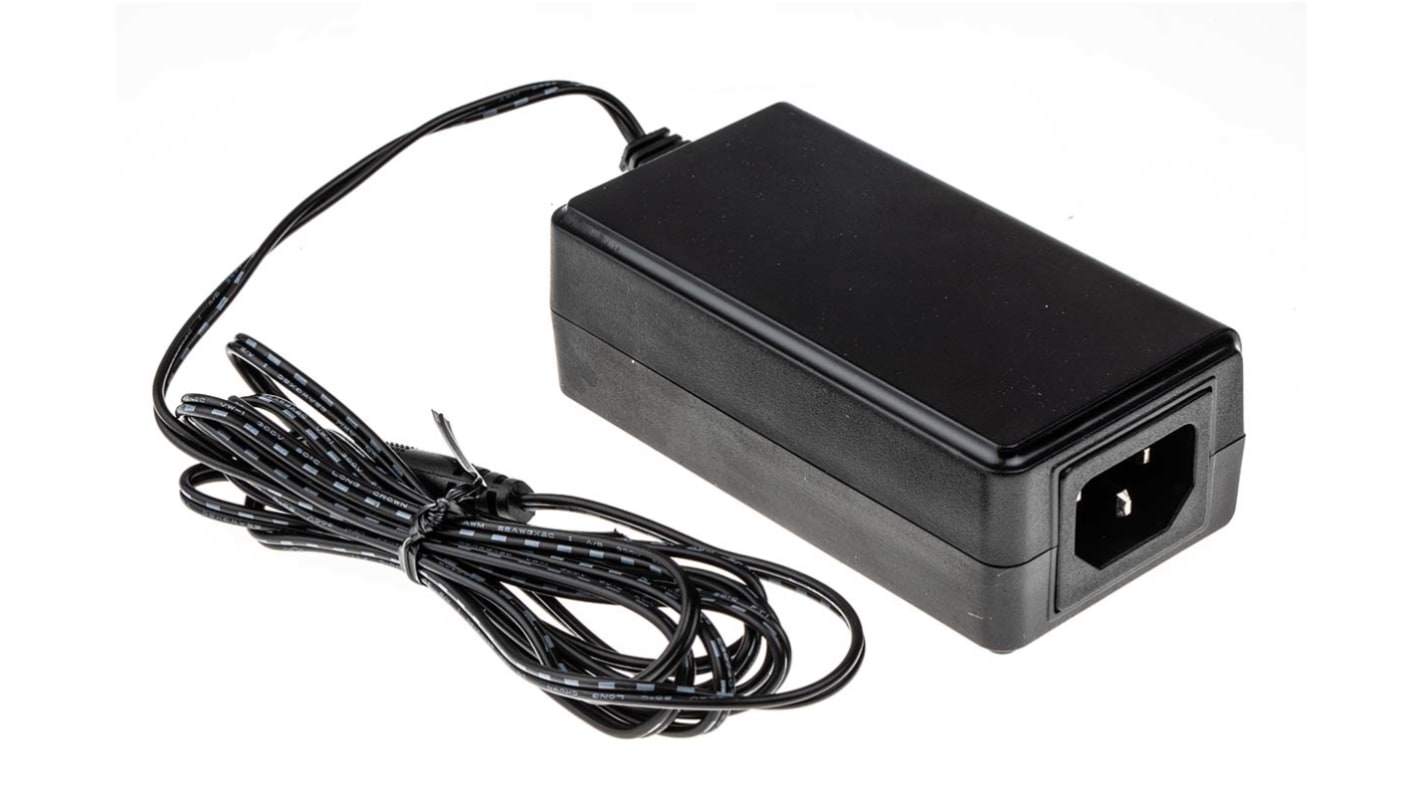

RS PRO 30W Plug-In AC/DC Adapter 24V dc Output, 0 → 1.25A Output
- RS stock no.:
- 144-0972
- Distrelec Article No.:
- 304-16-963
- Manufacturer:
- RS PRO
Bulk discount available
Subtotal (1 unit)*
R 456,56
(exc. VAT)
R 525,04
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- Plus 220 unit(s) shipping from 02 March 2026
- Plus 240 unit(s) shipping from 05 March 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 4 | R 456.56 |
| 5 - 9 | R 445.15 |
| 10 - 24 | R 431.80 |
| 25 - 49 | R 414.53 |
| 50 + | R 397.95 |
*price indicative
- RS stock no.:
- 144-0972
- Distrelec Article No.:
- 304-16-963
- Manufacturer:
- RS PRO
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | RS PRO | |
| Adapter Type | Plug-In Adapter | |
| Plug Type | 3-Pin IEC | |
| Output Voltage | 24V dc | |
| Input Voltage | 90 → 264V ac | |
| Output Current | 0 → 1.25A | |
| Maximum Temperature | +40°C | |
| Output Connector | 2.1 x 5.5 mm Connector | |
| Input Connector | IEC C14 | |
| Number of Outputs | 1 | |
| Power Rating | 30W | |
| Cable Length | 1830mm | |
| MTBF | 50000h | |
| Efficiency | 87% | |
| Standards Met | AS/NZS 60950.1, BS EN 60950-1, CB, CE, CSA C22.2 No.60950-1-07, cUL, EN 60950-1, FCC, J60950-1, SAA, TUV, UL, UL 60950-1 | |
| Width | 52mm | |
| Length | 99mm | |
| Line Regulation Range | ±2% | |
| Energy Efficiency Level | VI | |
| Series | HK-AB | |
| Minimum Temperature | 0°C | |
| Depth | 36mm | |
| Select all | ||
|---|---|---|
Brand RS PRO | ||
Adapter Type Plug-In Adapter | ||
Plug Type 3-Pin IEC | ||
Output Voltage 24V dc | ||
Input Voltage 90 → 264V ac | ||
Output Current 0 → 1.25A | ||
Maximum Temperature +40°C | ||
Output Connector 2.1 x 5.5 mm Connector | ||
Input Connector IEC C14 | ||
Number of Outputs 1 | ||
Power Rating 30W | ||
Cable Length 1830mm | ||
MTBF 50000h | ||
Efficiency 87% | ||
Standards Met AS/NZS 60950.1, BS EN 60950-1, CB, CE, CSA C22.2 No.60950-1-07, cUL, EN 60950-1, FCC, J60950-1, SAA, TUV, UL, UL 60950-1 | ||
Width 52mm | ||
Length 99mm | ||
Line Regulation Range ±2% | ||
Energy Efficiency Level VI | ||
Series HK-AB | ||
Minimum Temperature 0°C | ||
Depth 36mm | ||
- COO (Country of Origin):
- CN
Range of Level VI Efficiency Plugtop Power Supplies 5∼30V.
Level VI Efficiency
3 Pin IEC (C14) Inlet Desktop Power Supply
Universal Input 90∼264V-AC 47∼63Hz
Efficiency >86.95%
Short Circuit Protected
Operating Temperature 0∼40°C
RoHS-REACH Compliant
Limited Power Source (LPS)
Very Low Power Consumption <0.10W
ERP II Regulations Compliant
3 Pin IEC (C14) Inlet Desktop Power Supply
Universal Input 90∼264V-AC 47∼63Hz
Efficiency >86.95%
Short Circuit Protected
Operating Temperature 0∼40°C
RoHS-REACH Compliant
Limited Power Source (LPS)
Very Low Power Consumption <0.10W
ERP II Regulations Compliant
