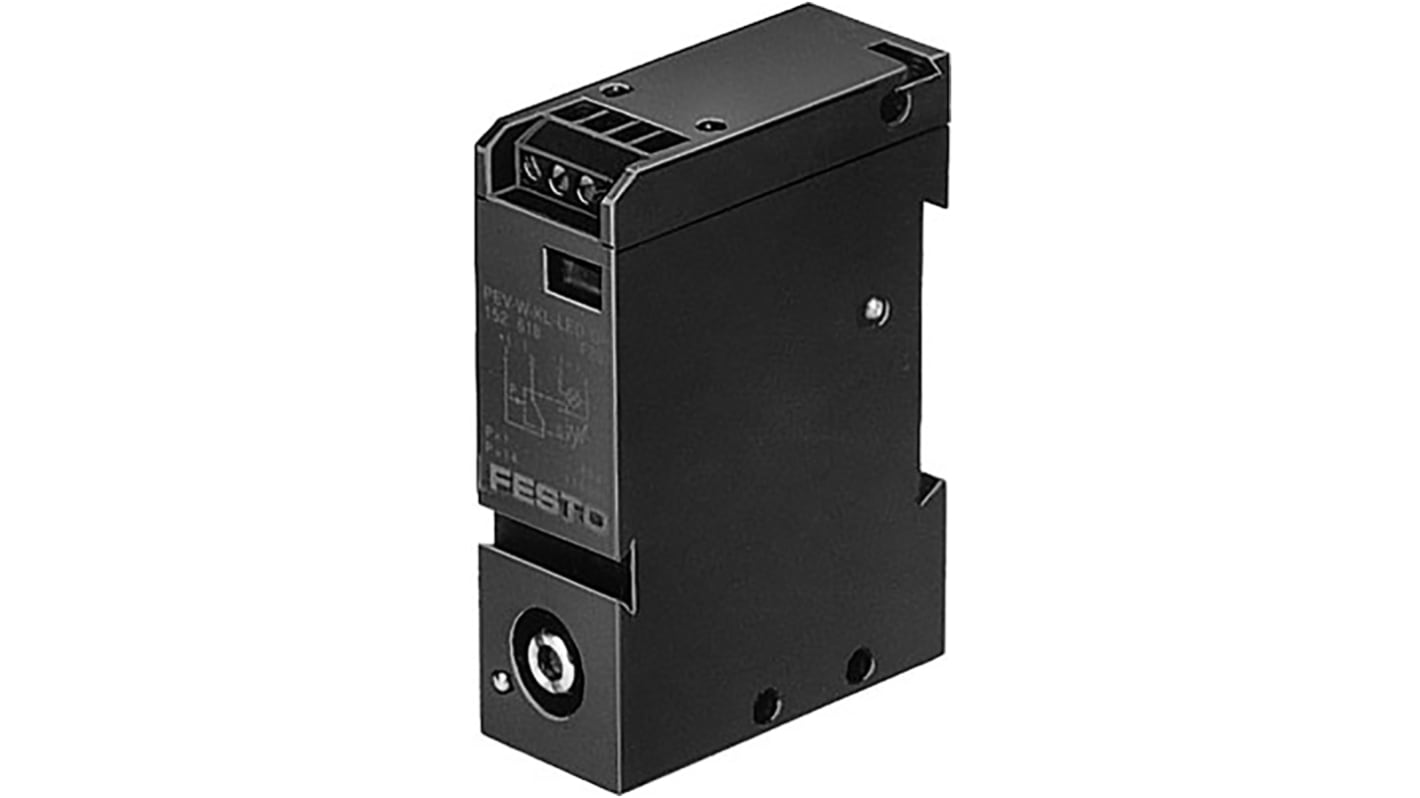

Festo Vacuum Switch -1 bar to 0 bar

RS stock no.:: 175-4526
Mfr. Part No.:: VPEV-W-KL-LED-GH
Manufacturer:: Festo

Subtotal (1 unit)*

R 1 653,48

(exc. VAT)

R 1 901,50

(inc. VAT)

FREE delivery for orders over R 1,500.00

In Stock

6 unit(s) ready to ship from another location

Need more? Click ‘Check delivery dates’ to find extra stock and lead times.

Units	Per unit
1 +	R 1,653.48

*price indicative

RS stock no.:: 175-4526
Mfr. Part No.:: VPEV-W-KL-LED-GH
Manufacturer:: Festo

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	Festo
	Product Type	Vacuum Switch
	Port Size	M5
	Minimum Operating Pressure	-1bar
	Switch Output	SPCO
	Suitable Medias	Air
	Pressure Type	Relative Pressure
	Voltage	30 V
	Series	PEV
	Maximum Operating Pressure	0 bar
	Minimum Operating Temperature	0°C
	Port Gender	Male
	Connection Thread Standard	Metric
	Maximum Operating Temperature	60°C
	Width	18 mm
	Depth	42mm
	Standards/Approvals	ISO
	Height	72mm
	IP Rating	IP20
	Hazardous Area Certification	No
	LED Indicator	Yes

	Select all
	Brand Festo
	Product Type Vacuum Switch
	Port Size M5
	Minimum Operating Pressure -1bar
	Switch Output SPCO
	Suitable Medias Air
	Pressure Type Relative Pressure
	Voltage 30 V
	Series PEV
	Maximum Operating Pressure 0 bar
	Minimum Operating Temperature 0°C
	Port Gender Male
	Connection Thread Standard Metric
	Maximum Operating Temperature 60°C
	Width 18 mm
	Depth 42mm
	Standards/Approvals ISO
	Height 72mm
	IP Rating IP20
	Hazardous Area Certification No
	LED Indicator Yes

Exempt

COO (Country of Origin):: BG

Festo Series VPEV Vacuum Switch, IP20 , 10 to 30 V Voltage Rating - VPEV-W-KL-LED-GH

This vacuum switch is a reliable and efficient device manufactured by Festo. Designed with precision and expertise, it is ideal for use in automation, electronics, electrical, and mechanical industries. With top-notch features and high-quality construction, it ensures accurate readings and optimal performance.

Features & Benefits

• M5 Connection for easy installation and a secure fit

• SPDT contact operation for reliable switching capabilities

• LED indicator for visual confirmation of operation

• Pressure setting range of 0.08 to 0.2 bar for versatile applications

• Suitable for air pressure measurements with a relative pressure type

• Voltage rating of 10 to 30 V for compatibility with various systems

Applications

• Ideal for use in compressed air systems

• Suitable for measuring pressure in industrial automation processes

• Reliable for applications requiring accurate pressure control

• Essential for systems operating within a -1 to 0 bar pressure range

Can it be used in high-temperature environments?

Yes, the vacuum switch is designed to operate in temperatures ranging from 0 to 60 °C.

Will it work with compressed air systems?

Yes, it is specifically designed for use with compressed air according to ISO8573-1:2010 standards.

Is lubricated operation possible with this device?

Yes, lubricated operation is possible and subsequently required for further operation.

What is the maximum pressure setting for this vacuum switch?

The maximum pressure setting for this device is 0.2 bar.

Can the Festo Vacuum Switch be mounted in any position?

Yes, it can be mounted in any position for flexible installation options.
