Silicon Labs CP2102N-A02-GQFN20, Controller IC, 1-Channel 12 Mbps, 3.6 V, USB 2.0, 3 V, 20-Pin QFN
- RS stock no.:
- 187-1334
- Mfr. Part No.:
- CP2102N-A02-GQFN20
- Manufacturer:
- Silicon Labs

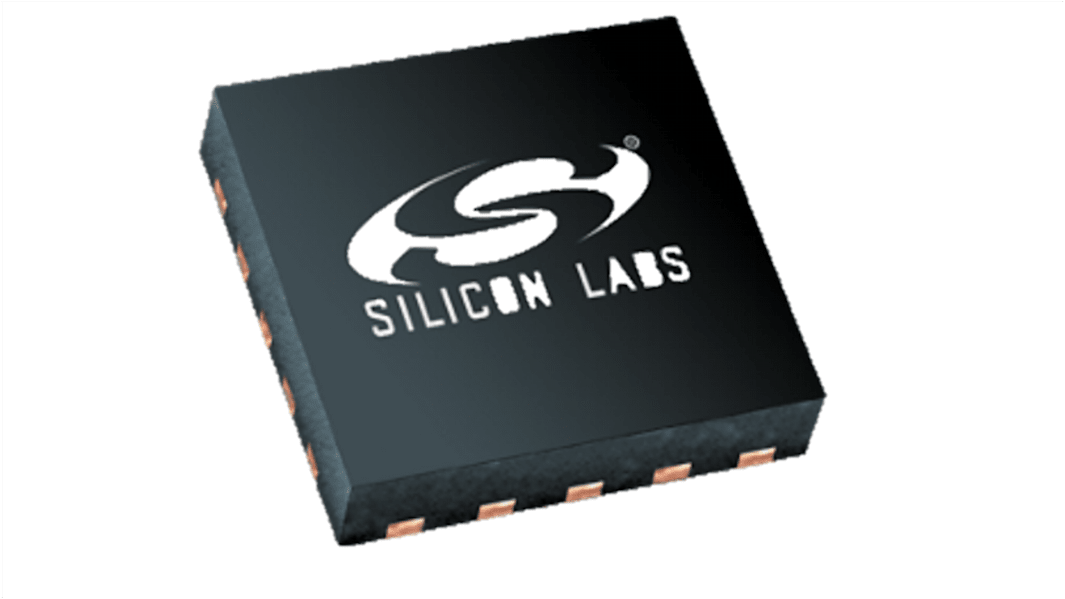

Image representative of range
Bulk discount available
Subtotal (1 pack of 4 units)*
R 249,12
(exc. VAT)
R 286,48
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 464 unit(s) ready to ship from another location
- Plus 1,976 unit(s) shipping from 16 February 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit | Per Pack* |
|---|---|---|
| 4 - 36 | R 62.28 | R 249.12 |
| 40 - 96 | R 60.723 | R 242.89 |
| 100 - 196 | R 58.90 | R 235.60 |
| 200 - 396 | R 56.545 | R 226.18 |
| 400 + | R 54.283 | R 217.13 |
*price indicative
- RS stock no.:
- 187-1334
- Mfr. Part No.:
- CP2102N-A02-GQFN20
- Manufacturer:
- Silicon Labs
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Silicon Labs | |
| Maximum Data Rate | 12Mbps | |
| Product Type | Controller IC | |
| Number of Transceivers | 1 | |
| Sub Type | Controller | |
| USB Specification | USB 2.0 | |
| Power Supply Type | Single | |
| ESD Protection | Yes | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Supply Voltage | 3V | |
| Mount Type | Surface | |
| Package Type | QFN | |
| Pin Count | 20 | |
| Supported Protocols | USB 2.0 | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | No | |
| Series | CP2102N | |
| Height | 0.75mm | |
| Width | 3 mm | |
| Length | 3mm | |
| Automotive Standard | No | |
| Supply Current | 9.5mA | |
| Select all | ||
|---|---|---|
Brand Silicon Labs | ||
Maximum Data Rate 12Mbps | ||
Product Type Controller IC | ||
Number of Transceivers 1 | ||
Sub Type Controller | ||
USB Specification USB 2.0 | ||
Power Supply Type Single | ||
ESD Protection Yes | ||
Maximum Supply Voltage 3.6V | ||
Minimum Supply Voltage 3V | ||
Mount Type Surface | ||
Package Type QFN | ||
Pin Count 20 | ||
Supported Protocols USB 2.0 | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals No | ||
Series CP2102N | ||
Height 0.75mm | ||
Width 3 mm | ||
Length 3mm | ||
Automotive Standard No | ||
Supply Current 9.5mA | ||
The Silicon Labs CP2102N devices, part of the USBXpress family, are designed to quickly add USB to applications by eliminating firmware complexity and reducing development time. These highly-integrated USB-to-UART bridge controllers provide a simple solution for updating RS-232 designs to USB using a minimum of components and PCB space. These devices include a USB 2.0 full-speed function controller, USB transceiver, oscillator, and Universal Asynchronous Receiver/Transmitter (UART) in packages as small as 3 mm x 3 mm. No other external USB components are required for development. All customization and configuration options can be selected using a simple GUI-based configurator. By eliminating the need for complex firmware and driver development, the CP2102N devices enable quick USB connectivity with minimal development effort.
