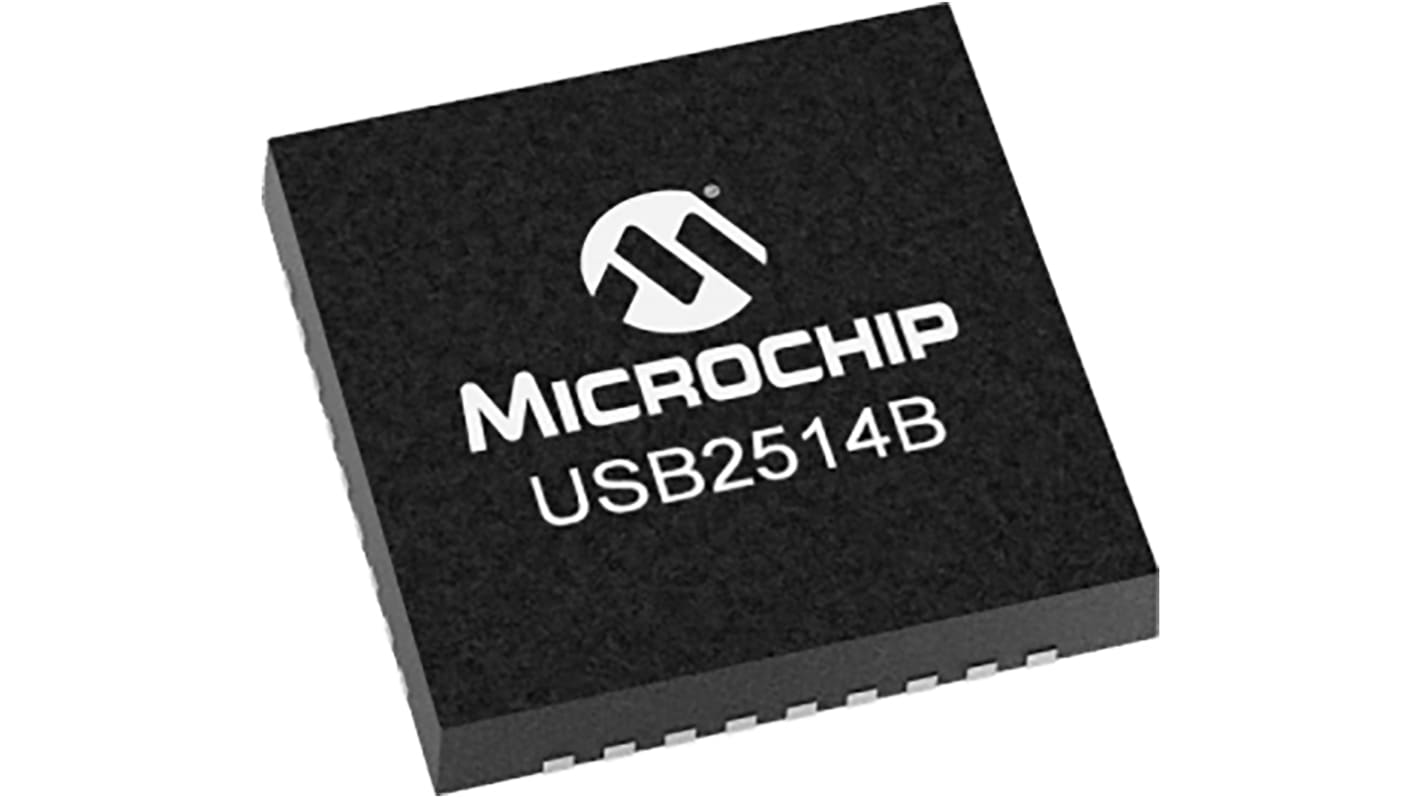

Microchip USB2514BI-AEZG-TR, USB Controller, I2C, USB 2.0, 3.3 V, 36-Pin QFN
- RS stock no.:
- 177-9739
- Mfr. Part No.:
- USB2514BI-AEZG-TR
- Manufacturer:
- Microchip
Bulk discount available
Subtotal (1 pack of 5 units)*
R 287,10
(exc. VAT)
R 330,15
(inc. VAT)
FREE delivery for orders over R 1,500.00
Last RS stock
- 45 left, ready to ship from another location
- Final 2,005 unit(s) shipping from 02 January 2026
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 5 | R 57.42 | R 287.10 |
| 10 - 45 | R 55.984 | R 279.92 |
| 50 - 95 | R 54.304 | R 271.52 |
| 100 + | R 52.132 | R 260.66 |
*price indicative
- RS stock no.:
- 177-9739
- Mfr. Part No.:
- USB2514BI-AEZG-TR
- Manufacturer:
- Microchip
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Number of Transceivers | 1 | |
| IC Type | Controller IC | |
| Protocols Supported | I2C, USB 2.0 | |
| Power Supply Type | Single | |
| ESD Protection | Yes | |
| Typical Single Supply Voltage | 3.3 V | |
| Mounting Type | Surface Mount | |
| Package Type | QFN | |
| Pin Count | 36 | |
| Dimensions | 6.15 x 6.15 x 0.95mm | |
| Height | 0.95mm | |
| Length | 6.15mm | |
| Maximum Operating Temperature | +85 °C | |
| Width | 6.15mm | |
| Minimum Operating Temperature | 0 °C | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Number of Transceivers 1 | ||
IC Type Controller IC | ||
Protocols Supported I2C, USB 2.0 | ||
Power Supply Type Single | ||
ESD Protection Yes | ||
Typical Single Supply Voltage 3.3 V | ||
Mounting Type Surface Mount | ||
Package Type QFN | ||
Pin Count 36 | ||
Dimensions 6.15 x 6.15 x 0.95mm | ||
Height 0.95mm | ||
Length 6.15mm | ||
Maximum Operating Temperature +85 °C | ||
Width 6.15mm | ||
Minimum Operating Temperature 0 °C | ||
- COO (Country of Origin):
- CN
Microchip's USB251xB is a family of versatile, cost-effective, and power-efficient USB 2.0 hub controllers. Leveraging Microchip's innovative MultiTRAK™ technology that delivers industry-leading data throughput in mixed-speed USB environments, the USB251xB family is a USB port expansion solution for applications that demand ultra low power and a small footprint without compromising on performance. Well-suited for consumer and mobile applications, all members of the USB251xB family are available in a space-saving package.
High performance, ultra low-power, small footprint hub controller IC
Enhanced OEM configuration options available through either a single serial I2C® EEPROM, or SMBus slave port
MultiTRAK - High-performance multiple transaction translator which provides one transaction translator per port
PortMap - Flexible port mapping and disable sequencing
PortSwap - Programmable USB differential-pair pin locations ease PCB design by aligning USB signal lines directly to connectors
Enhanced OEM configuration options available through either a single serial I2C® EEPROM, or SMBus slave port
MultiTRAK - High-performance multiple transaction translator which provides one transaction translator per port
PortMap - Flexible port mapping and disable sequencing
PortSwap - Programmable USB differential-pair pin locations ease PCB design by aligning USB signal lines directly to connectors
