STMicroelectronics STUSB4710AQTR, USB Controller 400 kbps, 22 V, USB 2.0, I2C, USB Type C, 4.1 V, 24-Pin QFN

RS stock no.:: 162-3652
Mfr. Part No.:: STUSB4710AQTR
Manufacturer:: STMicroelectronics

STMicroelectronics STUSB4710AQTR, USB Controller 400 kbps, 22 V, USB 2.0, I2C, USB Type C, 4.1 V, 24-Pin QFN

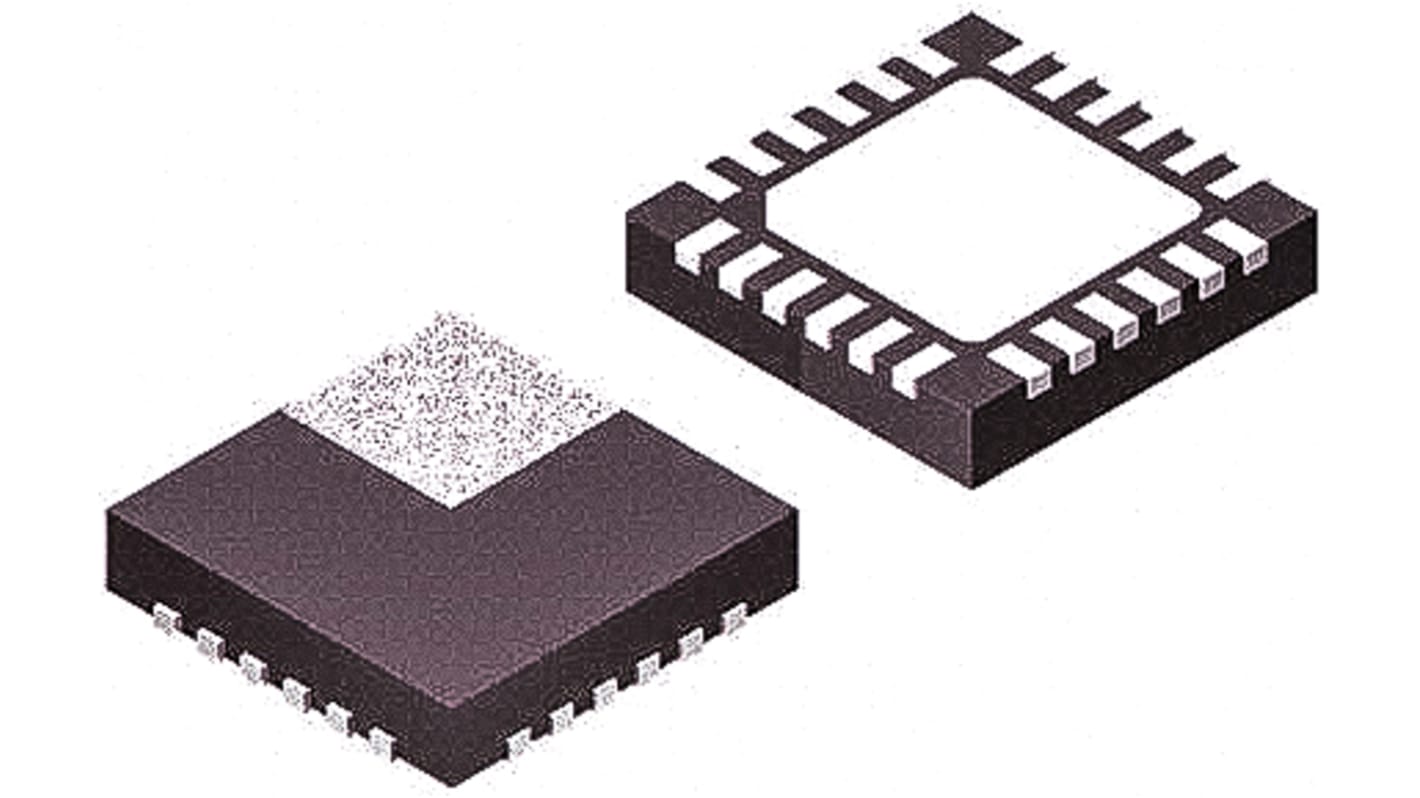

Image representative of range

Bulk discount available

Subtotal (1 pack of 2 units)*

R 101,02

(exc. VAT)

R 116,18

(inc. VAT)

FREE delivery for orders over R 1,500.00

Last RS stock

Final 3,830 unit(s), ready to ship from another location

Units	Per unit	Per Pack*
2 - 48	R 50.51	R 101.02
50 - 198	R 49.245	R 98.49
200 - 498	R 47.77	R 95.54
500 - 998	R 45.86	R 91.72
1000 +	R 44.025	R 88.05

*price indicative

RS stock no.:: 162-3652
Mfr. Part No.:: STUSB4710AQTR
Manufacturer:: STMicroelectronics

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	STMicroelectronics
	Product Type	USB Controller
	Maximum Data Rate	400kbps
	USB Specification	USB Type C
	Sub Type	Controller
	Power Supply Type	Single
	ESD Protection	Yes
	Minimum Supply Voltage	4.1V
	Maximum Supply Voltage	22V
	Mount Type	Surface
	Package Type	QFN
	Pin Count	24
	Minimum Operating Temperature	-40°C
	Supported Protocols	USB 2.0, I2C, USB Type C
	Maximum Operating Temperature	105°C
	Width	4.05 mm
	Length	4.05mm
	Height	0.95mm
	Standards/Approvals	No
	Series	STUSB4710
	Automotive Standard	No

	Select all
	Brand STMicroelectronics
	Product Type USB Controller
	Maximum Data Rate 400kbps
	USB Specification USB Type C
	Sub Type Controller
	Power Supply Type Single
	ESD Protection Yes
	Minimum Supply Voltage 4.1V
	Maximum Supply Voltage 22V
	Mount Type Surface
	Package Type QFN
	Pin Count 24
	Minimum Operating Temperature -40°C
	Supported Protocols USB 2.0, I2C, USB Type C
	Maximum Operating Temperature 105°C
	Width 4.05 mm
	Length 4.05mm
	Height 0.95mm
	Standards/Approvals No
	Series STUSB4710
	Automotive Standard No

1623608_DataSheet 1

The STUSB4710 is a new family of USB power delivery controllers communicating over Type-C™ configuration channel pins (CC) to negotiate a given amount of power to be sourced to an inquiring consumer device.The STUSB4710 addresses provider/DFP devices such as notebooks, tablets and AC adapters. The device can handle any connections to a UFP or DRP without any MCU attachment support, from device attachment to power negotiation, including VBUS discharge and protections

USB power delivery (PD) controller

Type-C attach and cable orientation detection

Single role: provider - DFP

Full hardware solution - no software

I2 C Interface (optional connection to MCU)

Support all USB PD profiles: up to 5 power data objects (PDO)

Configurable start-up profiles

Integrated VBUS voltage monitoring

Internal and/or external VBUS discharge path

Short -to-VBUS protections on CC pins (22 V) and VBUS pins (28 V)
