Infineon CYUSB3014-BZXI, USB Controller, 1-Channel 4 Mbps, 1.25 V, USB 3.0, UART, I2S, I2C, SPI, 1.8 V, 121-Pin BGA
- RS stock no.:
- 146-9178
- Mfr. Part No.:
- CYUSB3014-BZXI
- Manufacturer:
- Infineon

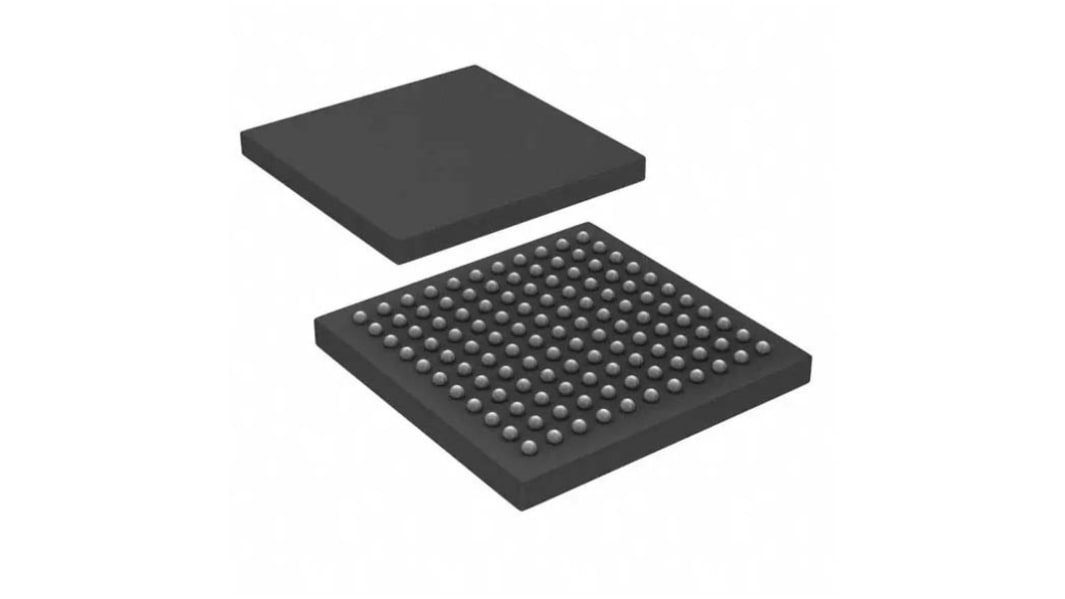

Image representative of range
Bulk discount available
Subtotal (1 unit)*
R 576,98
(exc. VAT)
R 663,53
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 5 unit(s) ready to ship from another location
- Plus 793 unit(s) shipping from 23 January 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 - 20 | R 576.98 |
| 21 + | R 562.56 |
*price indicative
- RS stock no.:
- 146-9178
- Mfr. Part No.:
- CYUSB3014-BZXI
- Manufacturer:
- Infineon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Number of Transceivers | 1 | |
| Maximum Data Rate | 4Mbps | |
| Product Type | USB Controller | |
| USB Specification | USB 3.1, USB 2.0 | |
| Sub Type | Controller | |
| Power Supply Type | Single | |
| ESD Protection | Yes | |
| Minimum Supply Voltage | 1.8V | |
| Maximum Supply Voltage | 1.25V | |
| Mount Type | Surface | |
| Package Type | BGA | |
| Pin Count | 121 | |
| Minimum Operating Temperature | -40°C | |
| Supported Protocols | USB 3.0, UART, I2S, I2C, SPI | |
| Maximum Operating Temperature | 85°C | |
| Width | 10 mm | |
| Series | CYUSB301 | |
| Height | 1.05mm | |
| Length | 10mm | |
| Standards/Approvals | No | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Number of Transceivers 1 | ||
Maximum Data Rate 4Mbps | ||
Product Type USB Controller | ||
USB Specification USB 3.1, USB 2.0 | ||
Sub Type Controller | ||
Power Supply Type Single | ||
ESD Protection Yes | ||
Minimum Supply Voltage 1.8V | ||
Maximum Supply Voltage 1.25V | ||
Mount Type Surface | ||
Package Type BGA | ||
Pin Count 121 | ||
Minimum Operating Temperature -40°C | ||
Supported Protocols USB 3.0, UART, I2S, I2C, SPI | ||
Maximum Operating Temperature 85°C | ||
Width 10 mm | ||
Series CYUSB301 | ||
Height 1.05mm | ||
Length 10mm | ||
Standards/Approvals No | ||
Automotive Standard No | ||
The Cypress Semiconductor CYUSB3014 series is a super speed peripheral controller, providing integrated and flexible features. It has a fully configurable, parallel, general programmable Interface called GPIF II, which can connect to any processor, ASIC, or FPGA. It provides easy and glueless connectivity to popular Interfaces, such as asynchronous SRAM, asynchronous and synchronous address data multiplexed Interfaces, and parallel ATA.
Fully accessible 32-bit CPU
Ultra low-power in core power-down mode
Independent power domains for core and I/O
Programmable 100-MHz GPIF II enables connectivity to a wide range of external devices
