MG Chemicals Boron Nitride, Zinc Oxide, Aluminium Oxide Thermal Grease, 1.8 W/mK, Tube

RS stock no.:: 124-7690
Mfr. Part No.:: 8616-25ml
Manufacturer:: MG Chemicals

MG Chemicals Boron Nitride, Zinc Oxide, Aluminium Oxide Thermal Grease, 1.8 W/mK, Tube

Currently unavailable

We don't know if this item will be back in stock, RS intend to remove it from our range soon.

Alternative

This product is not currently available. Here is our alternative recommendation.

RS PRO Grease 30 g S606B

RS stock no.: 707-4733

Each

R 314.35

(exc. VAT)

R 361.50

(inc. VAT)

RS stock no.:: 124-7690
Mfr. Part No.:: 8616-25ml
Manufacturer:: MG Chemicals

Specification

Technical data sheets

Legislation and Compliance

Product Details

Find similar products by selecting one or more attributes.

Select all	Attribute	Value
	Brand	MG Chemicals
	Thermal Conductivity	1.8W/mK
	Product Type	Thermal Grease
	Package Size	25 ml
	Physical State	Paste
	Dispensing Method	Tube
	Standards/Approvals	RoHS
	Minimum Operating Temperature	-68°C
	Chemical Component	Boron Nitride, Zinc Oxide, Aluminium Oxide
	Maximum Operating Temperature	165°C

	Select all
	Brand MG Chemicals
	Thermal Conductivity 1.8W/mK
	Product Type Thermal Grease
	Package Size 25 ml
	Physical State Paste
	Dispensing Method Tube
	Standards/Approvals RoHS
	Minimum Operating Temperature -68°C
	Chemical Component Boron Nitride, Zinc Oxide, Aluminium Oxide
	Maximum Operating Temperature 165°C

COO (Country of Origin):: CA

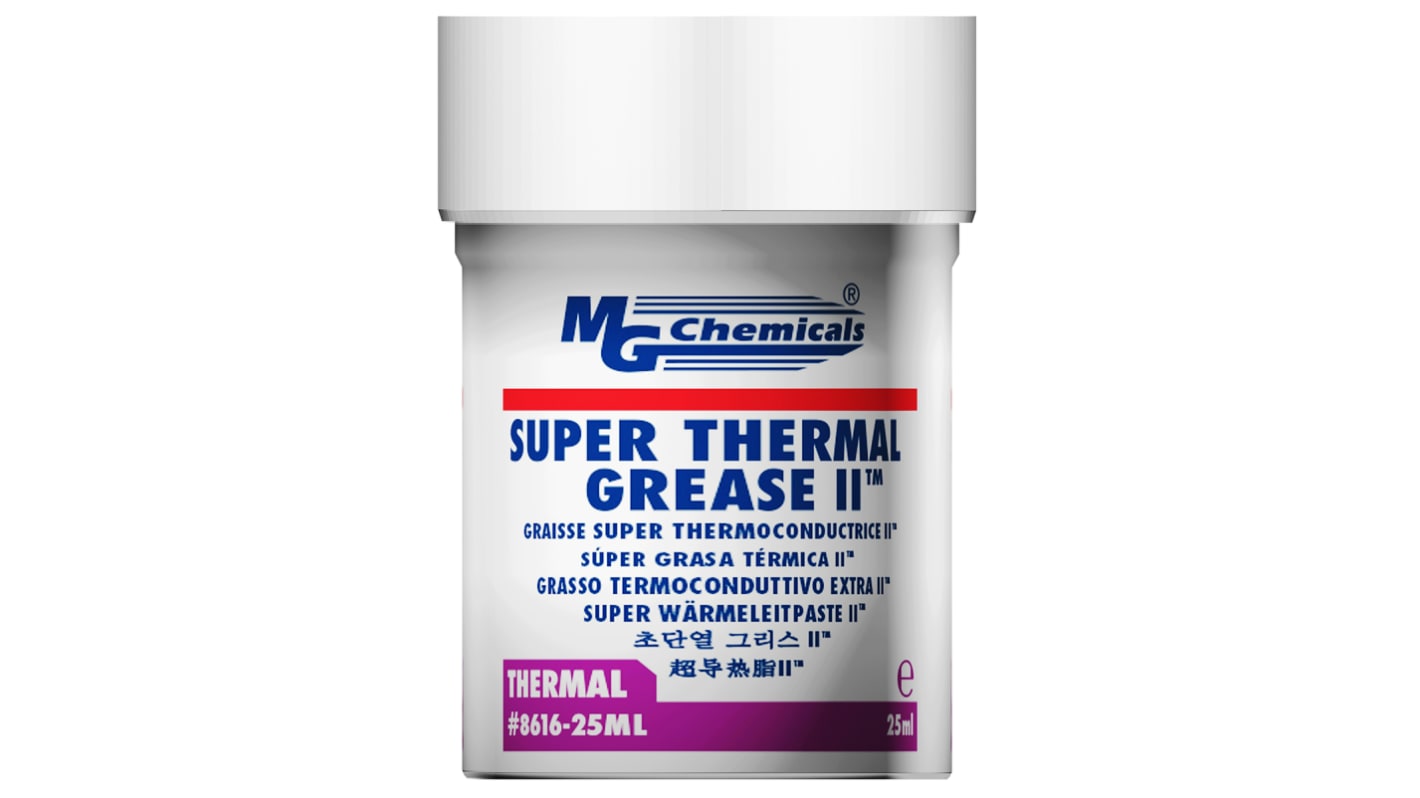

MG Chemicals Super Thermal grease II

MG Chemical 8616 super thermal grease II is a synthetic oil-based low thermal resistant grease. Designed for those applications where the maximum heat flow is a must.;The thermal grease is available in a 3 ml syringe 124-7689, a 25 ml tub 124-7690 or a 85 ml tube 124-7691

Features and Benefits

Silicone free;High dielectric strength ;Non-corrosive;No metallic fillers;Safe on plastics

Typical Applications

Use when you want to improve the thermal interface contact conductivity between heat sinks, LEDs, motors, and heat-generating electronic components. Such as CPUs, GPU chipsets and power components. ;Use to improve the thermal interface between irregular and pitted surfaces.

Note

The thermal grease does not add mechanical strength to the bond between heat source and heat sink. Use a mechanical fixation mechanism such as screws, allowing for pressure between the two, spreading the thermal grease onto the heat source.
