ETA Thermal Circuit Breaker - 1658 Single Pole 250V Voltage Rating Panel Mount, 10A Current Rating
- RS stock no.:
- 273-0860
- Mfr. Part No.:
- 1658-G21-02-P10-10A
- Manufacturer:
- ETA
6 Available in South Africa for same day despatch or collection. Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
137 Available from UK/Europe in 4–6 working days for collection or delivery to major cities (Heavy, hazardous or lithium product excluded. Delivery T&C's apply)
Added
Price (Excl VAT) Each
R 120,70
(exc. VAT)
R 138,80
(inc. VAT)
| Units | Per unit |
| 1 - 14 | R 120,70 |
| 15 - 49 | R 117,68 |
| 50 - 99 | R 114,15 |
| 100 - 249 | R 109,58 |
| 250 + | R 105,20 |
- RS stock no.:
- 273-0860
- Mfr. Part No.:
- 1658-G21-02-P10-10A
- Manufacturer:
- ETA
Technical data sheets
Legislation and Compliance
- COO (Country of Origin):
- ID
Product Details

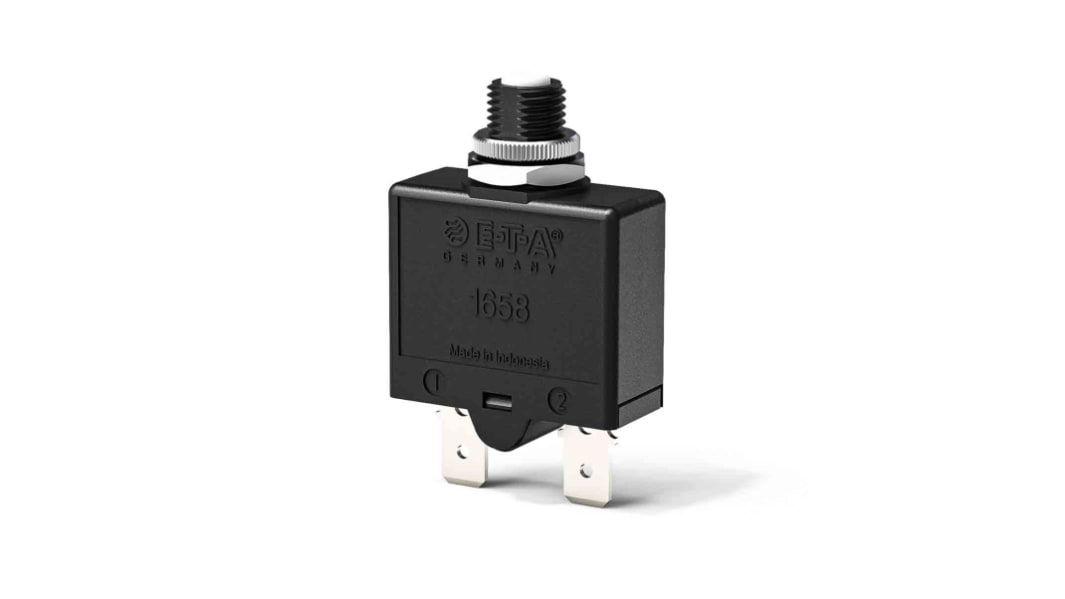

Thermal Circuit-Breaker, 1658 Series
Single pole circuit-breaker
Tripping time 10s @ 2xIN
No exposed metal parts (except terminals)
Breaking Capacity: 200A
Mounting Hole 9.6mm Ø
Tripping time 10s @ 2xIN
No exposed metal parts (except terminals)
Breaking Capacity: 200A
Mounting Hole 9.6mm Ø
Approvals
VDE
Thermal Magnetic Convertible
All CBEs have blade terminals and have an insulation resistance greater than 100MΩ (MegaOhms).
Specification
Attribute | Value |
|---|---|
| Current Rating | 10A |
| Number of Poles | 1 |
| Voltage Rating | 250V |
| Width | 14mm |
| Series | 1658 |
| Reset Actuator Type | Button |
| Rated AC Voltage | 250V |
| Mounting Style | Panel Mount |
| Terminal Contact Type | Blade |
| Overall Length | 32mm |
| Circuit Breaker Type | Thermal Circuit Breaker |
| Overall Dimensions | 32 x 14 x 27mm |
| Rated DC Voltage | 28V |
| Overall Depth | 27mm |
