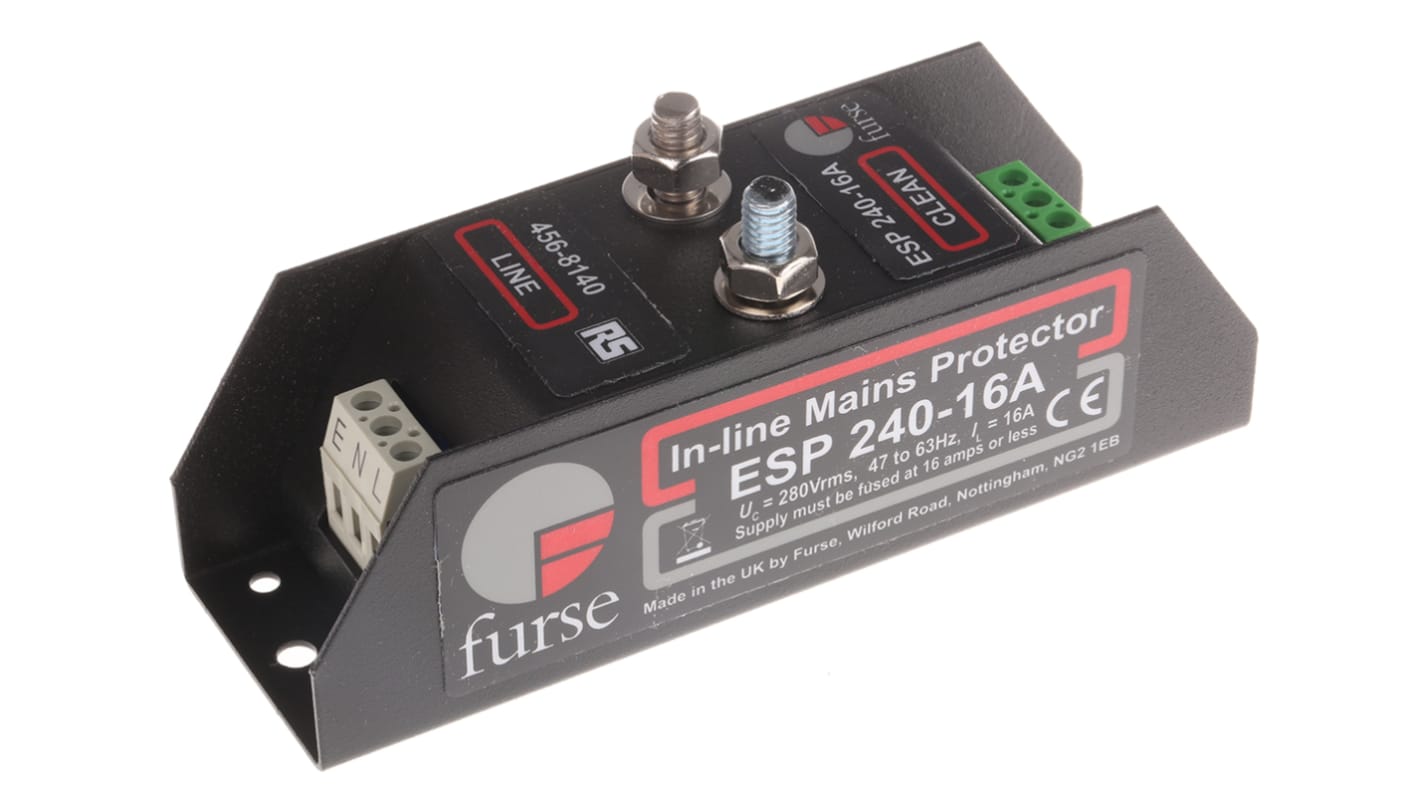

WJ Furse, ESP 240 Surge Suppressor Unit 280 V Maximum Voltage Rating 10kA Maximum Surge Current Low Current Mains

Over Voltage protectors for low current mains power supplies to protect electronic equipment e.g. CCTV cameras, alarm panels and telemetry equipment.

Very low let-through voltage between all lines (L-E, L-N, N-E)
Sturdy housing with M6 earth stud
Removable DIN rail foot for easy installation (unboxed versions). Can also be flat-mounted.
IP66 rated boxed version (/BX parts)
Colour-coded terminals

Tough polycarbonate enclosures

WBX enclosures for ESP protectors provide added protection in damp and dirty environments. Ideal for use when the protectors cannot be installed within an existing equipment panel or enclosure.

Network Rail approval (ESP 240-5A/BX) – PA05/02896. NRS PADS ref: 087/037285

This surge suppressor unit provides effective protection against electrical surges, functioning as a low current mains protector. It is vital for safeguarding electrical systems from transient voltage spikes, promoting the durability and dependable operation of your equipment. This device is suitable for a range of industrial applications, reflecting ABB's focus on improving safety and performance in electrical installations.

• Protects against surges up to 10 kA
• Rated for a maximum voltage of 280V, compatible with standard electrical systems
• Prevents damage to sensitive electronic equipment
• Provides high-performance surge suppression for industrial applications

• Suitable for electrical installations in manufacturing settings
• Enhances electrical safety in commercial buildings
• Protects equipment in power distribution systems

The unit can be attached to a standard DIN rail, making installation in electrical panels and enclosures straightforward.

It functions effectively within a temperature range of -40°C to +70°C, ensuring adaptability to various conditions.

Regular inspections are recommended to ensure the unit is securely mounted and free from wear or damage.

Transient Voltage Suppressors (Modules,Industrial)

Voltage surges, often referred to as spikes or transient overvoltages are typically caused by switching of fluorescent lights, fuses blowing or nearby lightning activity. The worst voltage surges are usually caused by lightning activity and can reach up to 6000V, with current surges of up to 3000A. The maximum size of the voltage and current surges depends on the location within the buildings wiring system. BS6651:1999 Annex C which was replaced in August 2008 by BS EN 62305-4:2006 is complemented by BS EN 61643-11/12 and covers location categories and provides guidance on protection of electronic equipment. For mains power systems, Types I, II and III are used. Surge protection devices not designed to fit into these categories may only provide limited protection and the equipment they protect may suffer damage.
