Microchip ATF22V10C-15JU Simple Programmable Logic Device ATF22V10C 350 Gates, 10 Macro Cells, 10 I/O, 83.3 MHz In
- RS stock no.:
- 127-8213
- Mfr. Part No.:
- ATF22V10C-15JU
- Manufacturer:
- Microchip

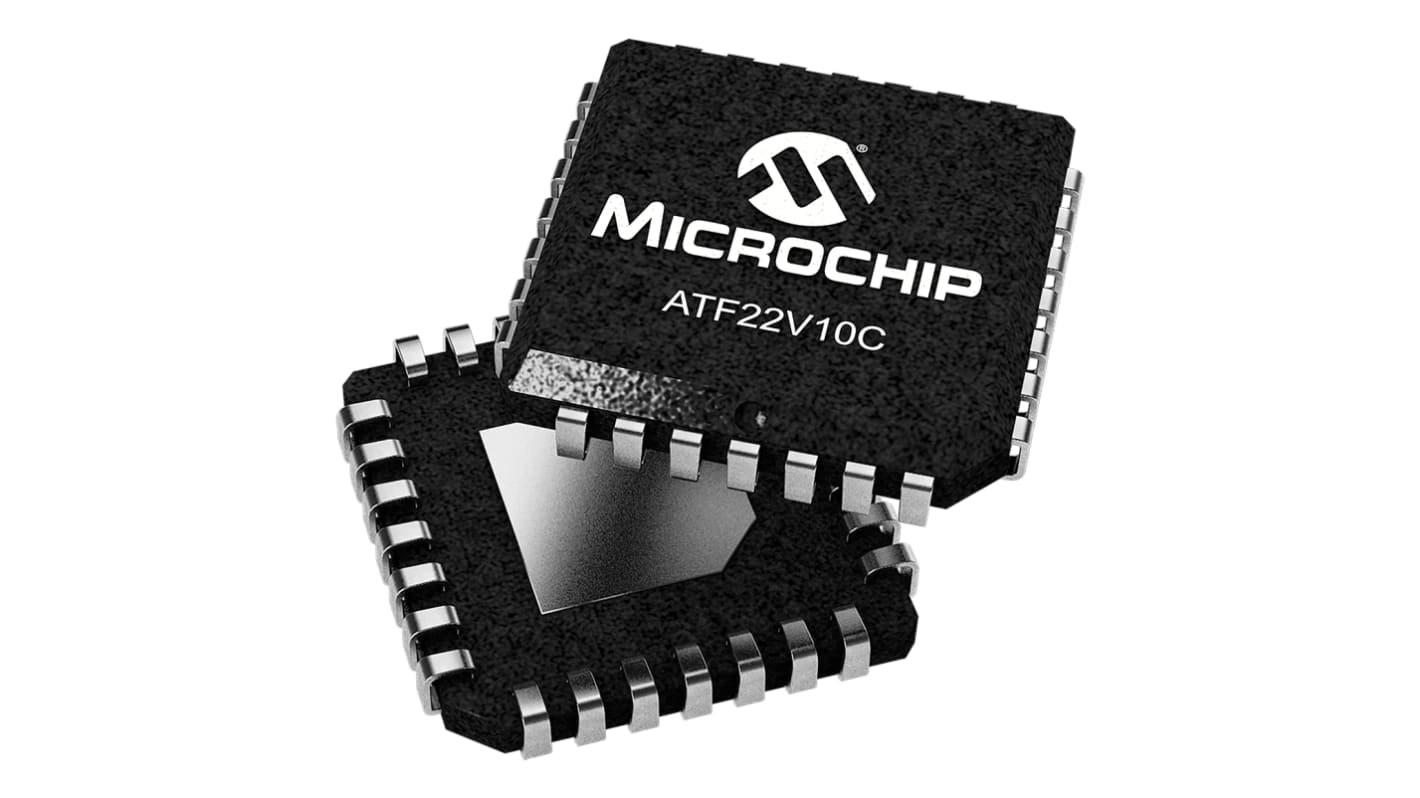

Image representative of range
Bulk discount available
Subtotal (1 pack of 5 units)*
R 191,89
(exc. VAT)
R 220,675
(inc. VAT)
FREE delivery for orders over R 1,500.00
Stock information currently inaccessible
Units | Per unit | Per Pack* |
|---|---|---|
| 5 - 20 | R 38.378 | R 191.89 |
| 25 - 95 | R 37.418 | R 187.09 |
| 100 - 495 | R 36.296 | R 181.48 |
| 500 - 995 | R 34.844 | R 174.22 |
| 1000 + | R 33.45 | R 167.25 |
*price indicative
- RS stock no.:
- 127-8213
- Mfr. Part No.:
- ATF22V10C-15JU
- Manufacturer:
- Microchip
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Microchip | |
| Series | ATF22V10C | |
| Product Type | Simple Programmable Logic Device | |
| Number of Gates | 350 | |
| Number of Macro Cells | 10 | |
| Number of User I/Os | 10 | |
| Maximum Internal Frequency | 83.3MHz | |
| In System Programmability | Yes | |
| Re-programmability Support | Yes | |
| Mount Type | Surface | |
| Package Type | PLCC | |
| Minimum Supply Voltage | 4.5V | |
| Maximum Supply Voltage | 5V | |
| Pin Count | 28 | |
| Maximum Propagation Delay Time | 15ns | |
| Minimum Operating Temperature | -40°C | |
| Maximum Operating Temperature | 85°C | |
| Standards/Approvals | RoHS | |
| Width | 11.58 mm | |
| Height | 4.06mm | |
| Length | 11.58mm | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Microchip | ||
Series ATF22V10C | ||
Product Type Simple Programmable Logic Device | ||
Number of Gates 350 | ||
Number of Macro Cells 10 | ||
Number of User I/Os 10 | ||
Maximum Internal Frequency 83.3MHz | ||
In System Programmability Yes | ||
Re-programmability Support Yes | ||
Mount Type Surface | ||
Package Type PLCC | ||
Minimum Supply Voltage 4.5V | ||
Maximum Supply Voltage 5V | ||
Pin Count 28 | ||
Maximum Propagation Delay Time 15ns | ||
Minimum Operating Temperature -40°C | ||
Maximum Operating Temperature 85°C | ||
Standards/Approvals RoHS | ||
Width 11.58 mm | ||
Height 4.06mm | ||
Length 11.58mm | ||
Automotive Standard No | ||
- COO (Country of Origin):
- TH
Simple Programmable Logic Device, Microchip
From Atmel, this high-performance programmable logic device boasts low power, high reliability and an industry standard architecture.
