Rohde & Schwarz Digital Bench Power Supply, 1-Output 0 V to 20V, 60 W
- RS stock no.:
- 219-4166
- Distrelec Article No.:
- 302-00-767
- Mfr. Part No.:
- NGU401-G
- Manufacturer:
- Rohde & Schwarz

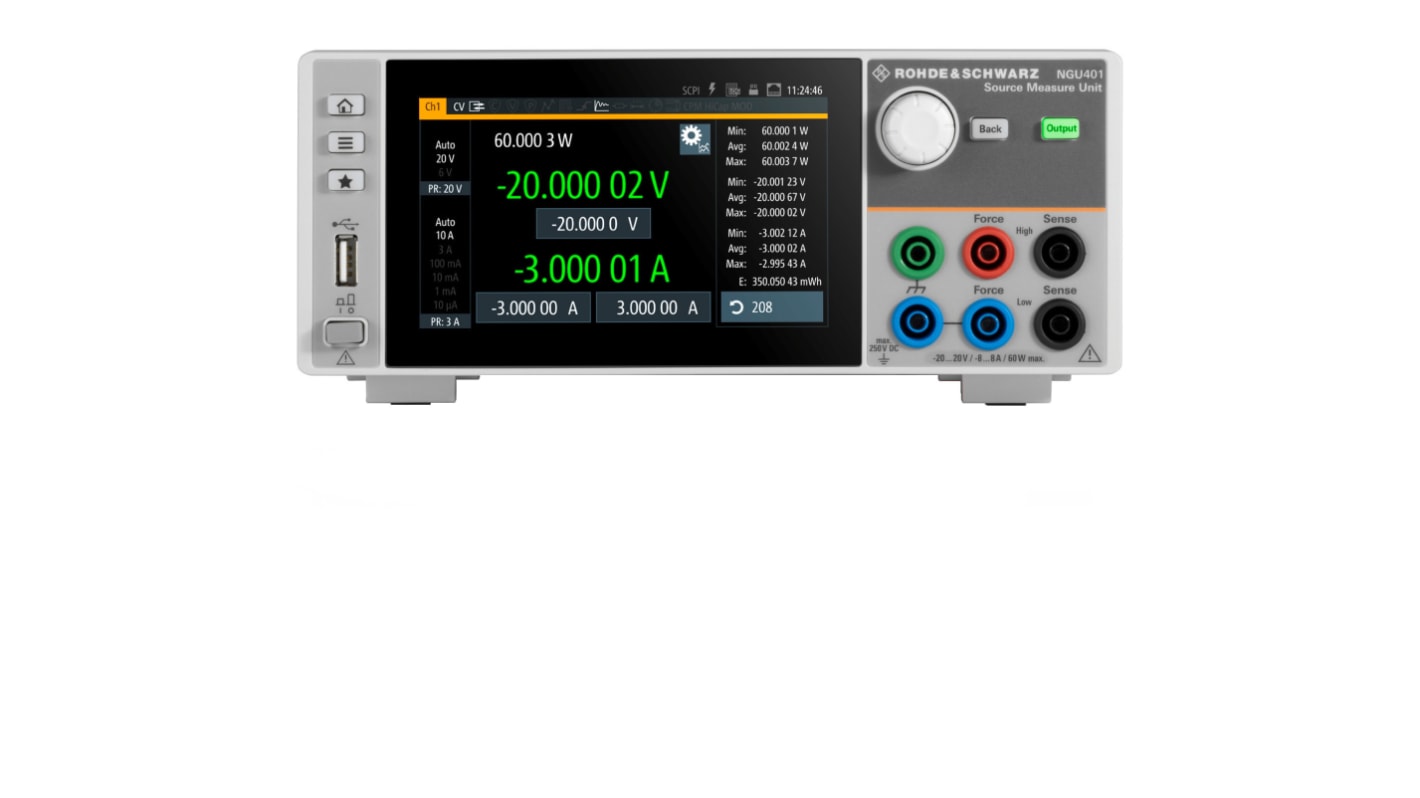

Image representative of range
Subtotal (1 unit)*
R 149 839,47
(exc. VAT)
R 172 315,39
(inc. VAT)
FREE delivery for orders over R 1,500.00
In Stock
- 1 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 1 + | R 149,839.47 |
*price indicative
- RS stock no.:
- 219-4166
- Distrelec Article No.:
- 302-00-767
- Mfr. Part No.:
- NGU401-G
- Manufacturer:
- Rohde & Schwarz
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Rohde & Schwarz | |
| Product Type | Bench Power Supply | |
| Maximum Output Current | 8A | |
| Maximum Output Voltage | 20V | |
| Number of Outputs | 1 | |
| Power | 60W | |
| Minimum Supply Voltage | 100V | |
| Maximum Supply Voltage | 230V | |
| Minimum Operating Temperature | 5°C | |
| Digital/Analogue | Digital | |
| Maximum Operating Temperature | 40°C | |
| Depth | 436mm | |
| Height | 97mm | |
| Width | 222 mm | |
| Standards/Approvals | ISO9001, EN55011 (Class A), EN61010-1, RoHS, CSA-C22.2 No. 61010-1, EN61326-1 | |
| Minimum Output Voltage | 0V | |
| Minimum Output Current | 3A | |
| Select all | ||
|---|---|---|
Brand Rohde & Schwarz | ||
Product Type Bench Power Supply | ||
Maximum Output Current 8A | ||
Maximum Output Voltage 20V | ||
Number of Outputs 1 | ||
Power 60W | ||
Minimum Supply Voltage 100V | ||
Maximum Supply Voltage 230V | ||
Minimum Operating Temperature 5°C | ||
Digital/Analogue Digital | ||
Maximum Operating Temperature 40°C | ||
Depth 436mm | ||
Height 97mm | ||
Width 222 mm | ||
Standards/Approvals ISO9001, EN55011 (Class A), EN61010-1, RoHS, CSA-C22.2 No. 61010-1, EN61326-1 | ||
Minimum Output Voltage 0V | ||
Minimum Output Current 3A | ||
- COO (Country of Origin):
- CZ
The Rohde & Schwarz four-quadrant NGU401 provide up to 60 W of output power and sink power. The channels are floating, galvanically isolated and protected against overload and short circuits. The four-quadrant NGU401 source measure unit is the semiconductor testing specialist for general-purpose applications that span many different industries and many different devices under test. It can act as bipolar power supply or bipolar electronic load.
High-resolution touch screen
Save and recall instrument settings
Minimum residual ripple and low noise
Readings with up to 6 ½ digit resolution
Voltage priority and current priority mode
High-capacitance mode
High speed data acquisition (FastLog function)
Protection functions to safeguard instrument and DUT
