Infineon 5-Pin Microphone, Omni-Directional, Surface, Digital Output, LLGA 3.6 V 3.6 V
- RS stock no.:
- 236-3649P
- Mfr. Part No.:
- IM69D130V01XTSA1
- Manufacturer:
- Infineon

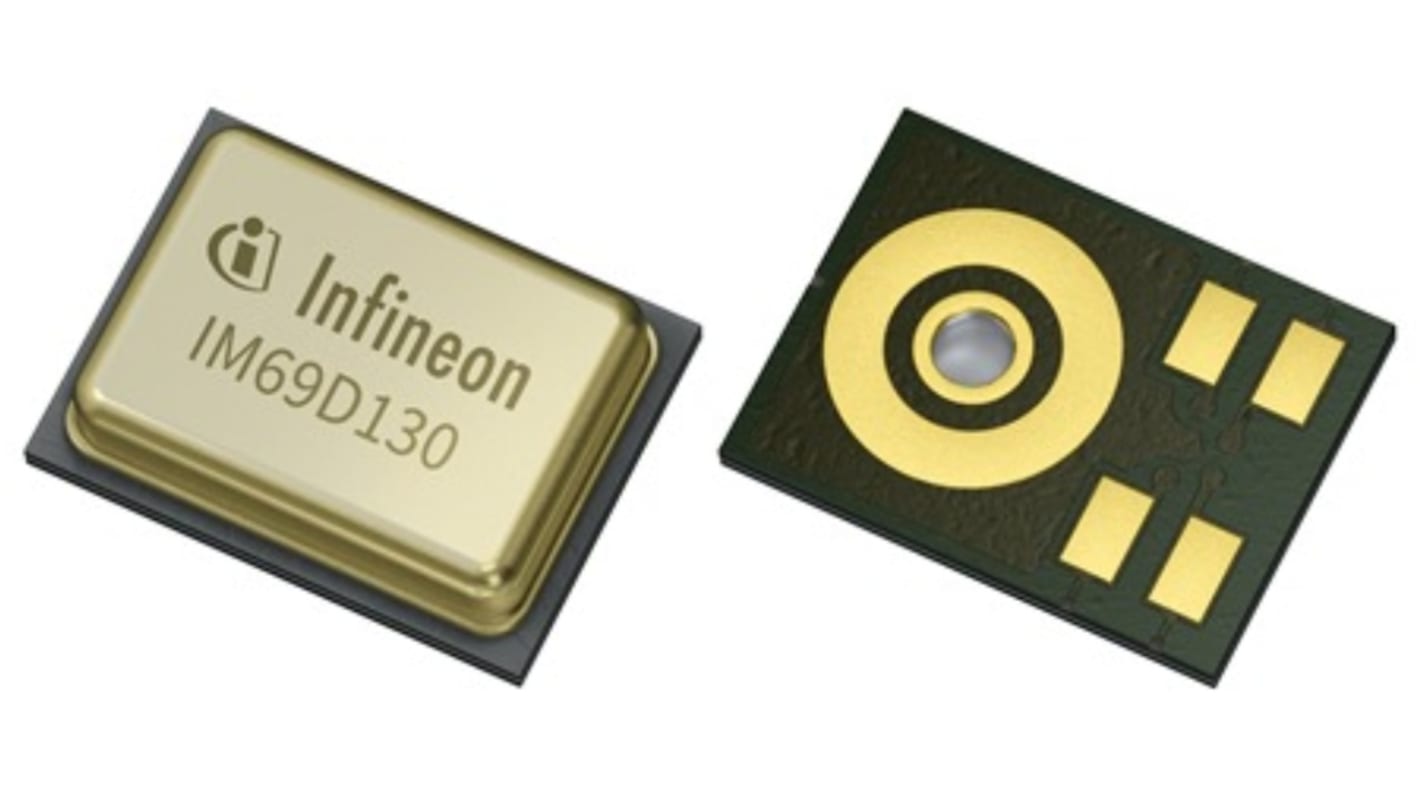

Image representative of range
Bulk discount available
Subtotal 10 units (supplied on a continuous strip)*
R 304,70
(exc. VAT)
R 350,40
(inc. VAT)
FREE delivery for orders over R 1,500.00
Temporarily out of stock
- 1,000 unit(s) shipping from 30 July 2026
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units | Per unit |
|---|---|
| 10 - 95 | R 30.47 |
| 100 - 245 | R 29.556 |
| 250 - 495 | R 28.374 |
| 500 + | R 27.24 |
*price indicative
- RS stock no.:
- 236-3649P
- Mfr. Part No.:
- IM69D130V01XTSA1
- Manufacturer:
- Infineon
Specification
Technical data sheets
Legislation and Compliance
Product Details
Find similar products by selecting one or more attributes.
Select all | Attribute | Value |
|---|---|---|
| Brand | Infineon | |
| Technology | MEMS Microphone | |
| Product Type | Microphone | |
| Frequency Range | 28Hz to 20kHz | |
| Output Type | Digital | |
| Directivity | Omni-Directional | |
| Sensitivity | -37dBFS | |
| Signal to Noise Ratio | 69dB | |
| Minimum Supply Voltage | 3.6V | |
| Mount Type | Surface | |
| Maximum Supply Voltage | 3.6V | |
| Minimum Operating Temperature | -40°C | |
| Package Type | LLGA | |
| Maximum Operating Temperature | 70°C | |
| Height | 1.2mm | |
| Pin Count | 5 | |
| Standards/Approvals | IEC 60747 and 60749 or alternatively JEDEC47/20/22 | |
| Width | 3 mm | |
| Length | 4mm | |
| Port Location | Bottom | |
| Automotive Standard | No | |
| Select all | ||
|---|---|---|
Brand Infineon | ||
Technology MEMS Microphone | ||
Product Type Microphone | ||
Frequency Range 28Hz to 20kHz | ||
Output Type Digital | ||
Directivity Omni-Directional | ||
Sensitivity -37dBFS | ||
Signal to Noise Ratio 69dB | ||
Minimum Supply Voltage 3.6V | ||
Mount Type Surface | ||
Maximum Supply Voltage 3.6V | ||
Minimum Operating Temperature -40°C | ||
Package Type LLGA | ||
Maximum Operating Temperature 70°C | ||
Height 1.2mm | ||
Pin Count 5 | ||
Standards/Approvals IEC 60747 and 60749 or alternatively JEDEC47/20/22 | ||
Width 3 mm | ||
Length 4mm | ||
Port Location Bottom | ||
Automotive Standard No | ||
The Infineon MEMS microphone with 105dB dynamic range and high output linearity up to 130dBSPL. The application benefits are crystal clear audio signals, extended pick-up distance and sensitivity to both soft and loud signals - from whispered speech to rock concerts.
High fidelity and far field audio recording
Matched, noise and distortion free audio signals for Advanced audio signal processing
Ultra-low group delay for latency-critical applications
No analog components required
