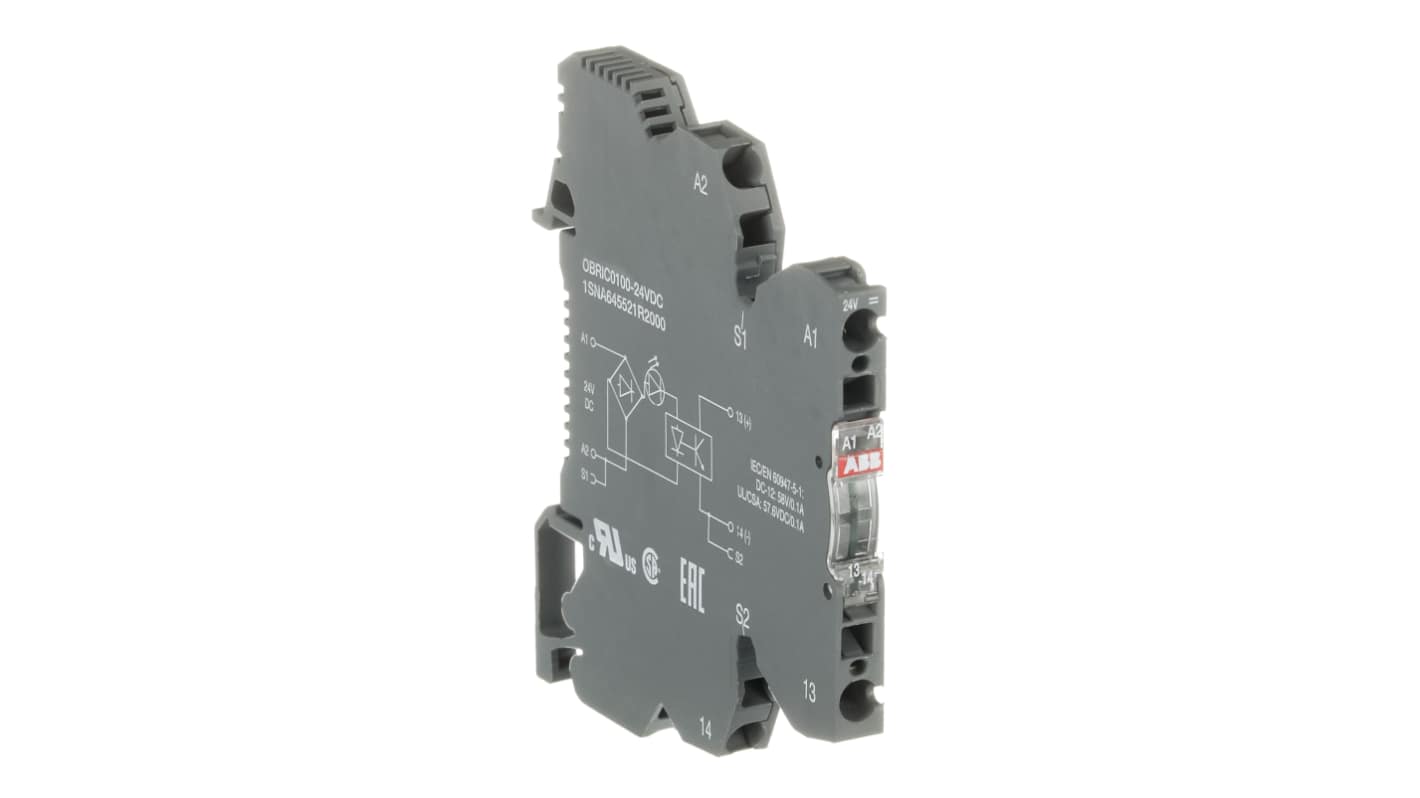

ABB Solid State Relay, DIN Rail Mount

View all Solid State Relays

Subtotal (1 unit)*

R 507,51

(exc. VAT)

R 583,64

(inc. VAT)

Add to Basket
Select or type quantity
In Stock
  • 35 unit(s) ready to ship from another location
Need more? Click ‘Check delivery dates’ to find extra stock and lead times.
Units
Per unit
1 +R 507.51

*price indicative

RS stock no.:
773-0073
Mfr. Part No.:
1SNA645521R2000 OBRIC0100-24VDC
Manufacturer:
ABB
Find similar products by selecting one or more attributes.
Select all

Brand

ABB

Mounting Type

DIN Rail

Dimensions

75 x 6 x 75mm

Minimum Operating Temperature

-20°C

Maximum Operating Temperature

+70°C

Depth

75mm

Operating Temperature Range

-20 → +70°C

Length

75mm

ILPH RS232/485 to Ethernet Converter


This product offers smart gateway between ethernet and serial protocols. Additional features to speed up your Modbus Communication or exchange data easily in a network without the need for any Modbus master intervention.

Moreover, there is no need for additional software to run the product. The only set up you need to perform is the IP address, making installation very simple and fast, thereby offering relevant savings on commissioning and starting-up.

3 available modes:


Modbus\TCP to Modbus RTU conversion (Up to 2 Modbus\TCP® Masters)
Transparent Client or Server mode
SMTP mode (mail send)

Features:


Ethernet data transfer rate: 10/100Mbits/s; RJ45 connection
Serial baud rate: 115.2kbits/s
Triple galvanic isolation
Power supply: 10-34Vdc and 10-24Vac
Possible to have a redundant 10-34Vac power supply
Economic, with low consumption
RS232 connection via 9pin D-Sub or screw terminals

Standards

TPC/IP, TELNET, DHCP, FTP

ABB Solid State Relay, 75mm Length, 24V DC Voltage - 1SNA645521R2000 OBRIC0100-24VDC


This solid state relay is designed for mounting on DIN rail for easy integration into industrial control systems. With dimensions of 75 x 6 x 75mm, this compact unit is suitable for space-restricted applications. Operating efficiently within a temperature range of -20 to +70 °C, it meets IEC standards for reliable performance in various environments.

Features & Benefits


• Utilises spring terminal connections for secure and rapid installation
• Excellent heat tolerance with a maximum operating temperature of +70 °C
• Compact design tailored for constrained spaces
• Compliant with IEC standards for safety and reliability
• High-performance switching mechanism for enhanced durability

Applications


• Ideal for automation control systems in manufacturing
• Suitable for use in electrical panel installations
• Commonly used in mechanical requiring precise control
• Effective in replacing traditional electromechanical relays in various devices

What type of connection does this relay feature?


The relay employs spring terminal connections that allow for swift and secure wiring, reducing installation time and ensuring stability.

What is the operational temperature range for this relay?


It functions efficiently in an operational temperature range from -20 °C to +70 °C, making it suitable for both harsh and mild environments.

How does this relay ensure reliable performance in industrial settings?


The design adheres to IEC standards, ensuring it performs reliably under varying conditions, effectively reducing the risk of failure in industrial applications.
